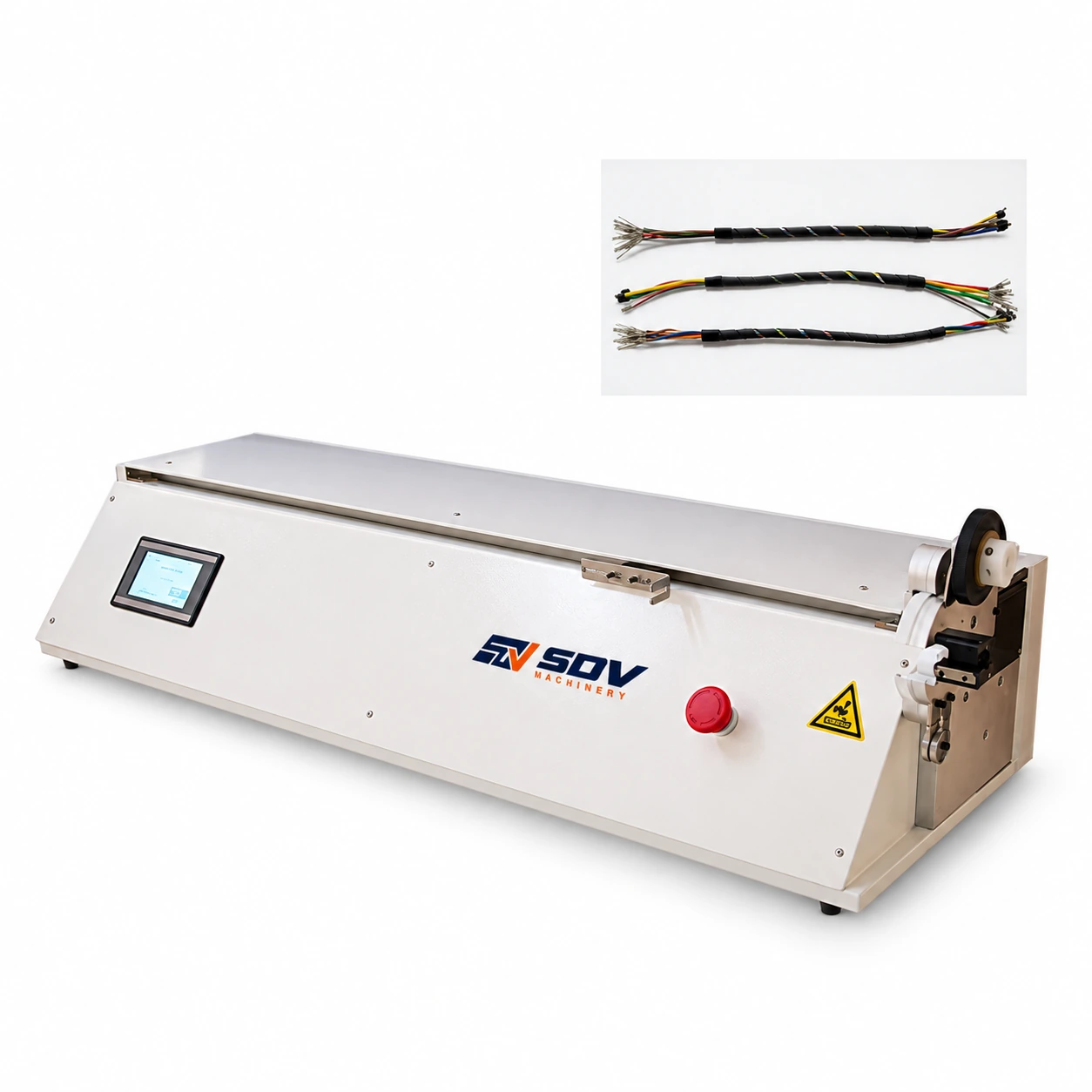

One Meter Stroke Continuous Tape Wrapping Machine EW-1830

Price of the selected optionon request
Delivery options

Description

Feature

● PLC touch screen control panel,Clear operation interface, intelligent display, simple operation.

● Simple operation, stable performance,Wire harness slot, foot start, convenient use of various products.

● Multiple winding methods: you can set the winding mode to bifurcation, flower winding, full winding, and winding with different spacing.

● Small size and light weight,The machine adopts pure electric design and is compact and practical.

Specifications

Model
EW-1830
Input power
220V/110V
Applicable OD
2-15mm
Tape width
5-25mm
Tape material
PVC, felt tape, cloth-based tape, high-temperature insulation tape, conductive tape, etc.
Wrapping stroke
Up to 1 meter
Rotator speed
Up to 600 rpm
Pulling speed
0.5 m/s
Dimension
1050*300*250mm
Wrapping effect
Flower wrapping and continuous wrapping, the overlapping part of the tape is adjustable
Air source
N/A, pure electric
Pedal Start
Yes
Application for One Meter Stroke Continuous Tape Wrapping Machine EW-1830
