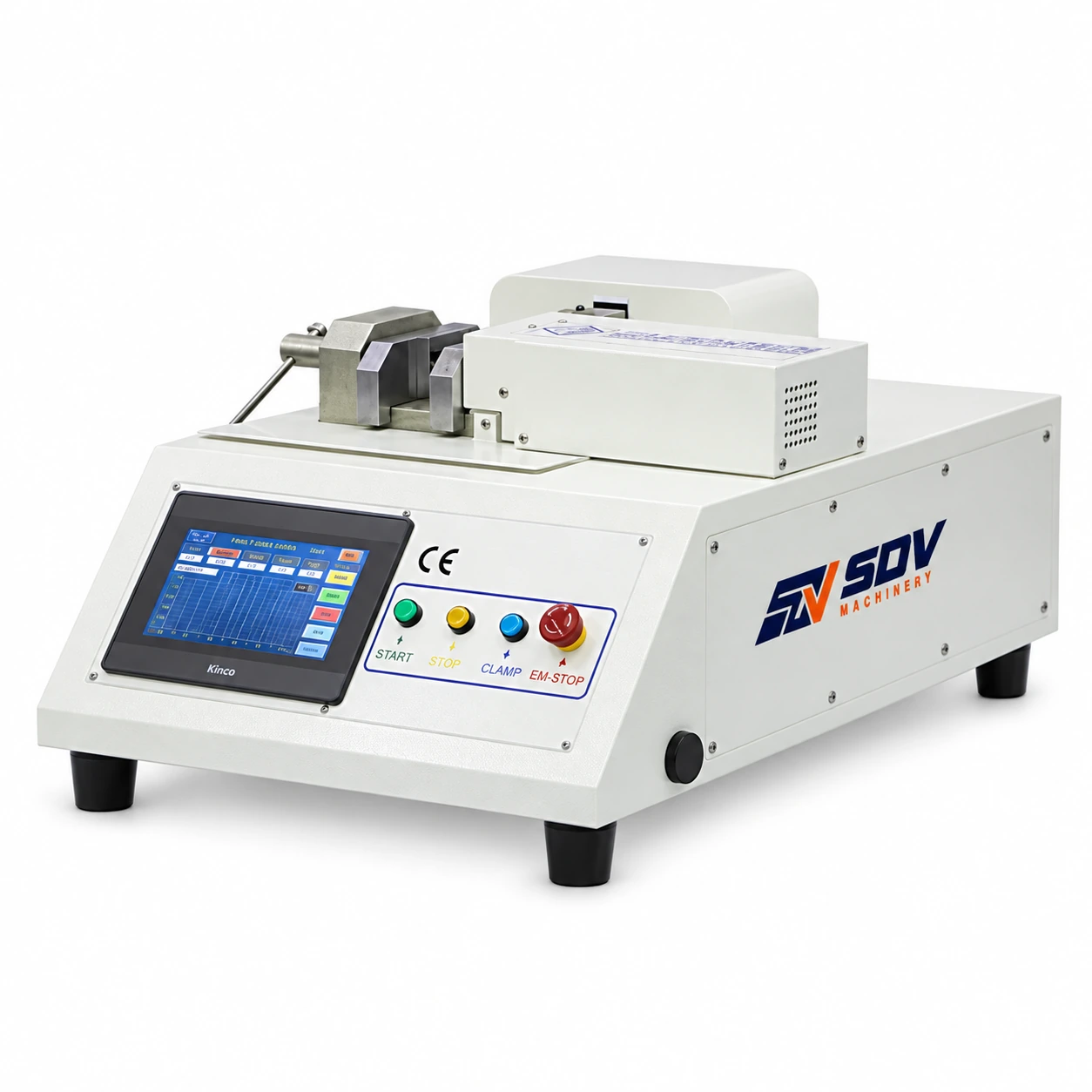

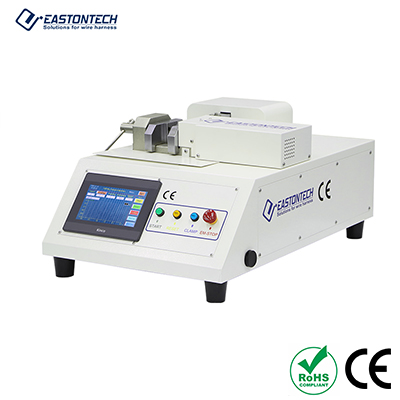

Electric Terminal Tensile Testing Machine(1000KG) EW-2595

Price of the selected optionon request
Delivery options

Description

Feature

● Language selection: Chinese/English.

● Unit selection: Newton / kg / lb unit conversion.

● Data display: real-time display of the value of tension during the test, pull-off test results show the peak tension and test curve.

● Function:Puling speed, destructive test, non-destructive test, test software, curve display, print test report automatic reset, RS232, MES connection.

● Speed setting: test speed can be set (10-600mm/min), and can be set to the boot state.

● MES function: automatically upload MES system after testing.

● System setting: comes with parameter setting interface, can be convenient to set the system parameters.

Specifications

Model
EW-2595
Device Functions
Puling speed, destructive test、non-destructive test、test software、curve display、print test report automatic reset、 RS232、MES connection
Testing Range
1-1000Kg(10-10000N)
Testing Stroke
70mm
Testing Speed
10-600mm
Drive Mechanism
Hybrid Stepper Motor、Precision Single-direction Ball Screw、Linear Guide Columns
Program Memory
0-16
Control Mode
Self-developed control panel
Display Mode
7 inch touch screen
Air Pressure
0.5-0.8Mpa
Pedal Start
YES
Power Supply
AC220V/50Hz
Power
0.3K W
Weight
65 kg
Dimension
L710mm*W490mm*H295mm
