Wire Processing and Electrical Installation Equipment

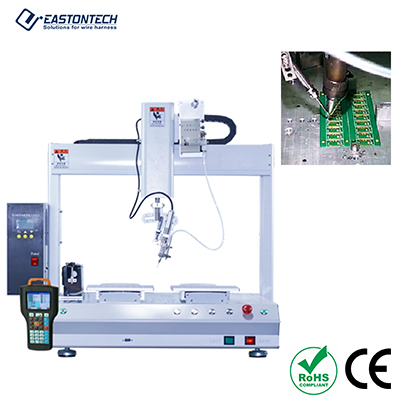

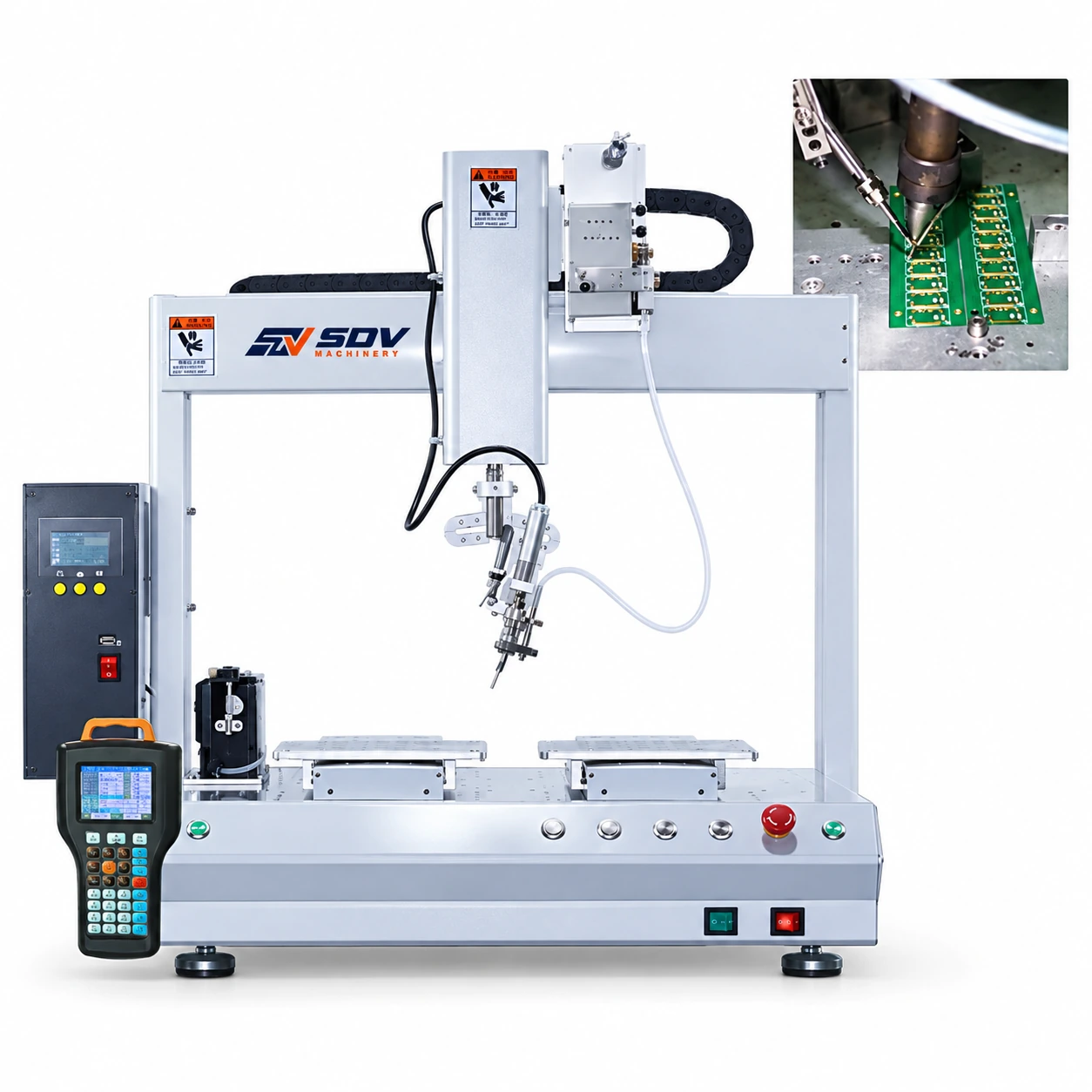

Double platform automatic rotating soldering machine EW-6140

Price of the selected optionon request
Delivery options

Description

Feature

● Handheld teaching programmer. Rich programming instructions and easy programming operation.

● German Wilo heating element. Fast heating speed, precise temperature control, and strong sustainability.

● Can be equipped with various soldering iron tips.

● German Wilo thermostat. High and low temperature alarm, intelligent sleep, temperature compensation. Strong temperature control stability.

Specifications

Model
EW-6140
Temperature adjustment range
0-500℃
Temperature error
±2℃h
Soldering range X/Y/Z (mm)
500/300/300/100/360°
Maximum load on Y axis
15kg
Movement speed (mm/sec)
0—800
Resolution capability
0.01 mm/Axis
Repeat accuracy
± 0.02 mm/ Axis
Program recording mode
More than 100 groups
Display mode
LCD
Motion interpolation function
3 axis
Voltage
AC110V ~ 220V
External control interface
RS232
Application for Double platform automatic rotating soldering machine EW-6140
