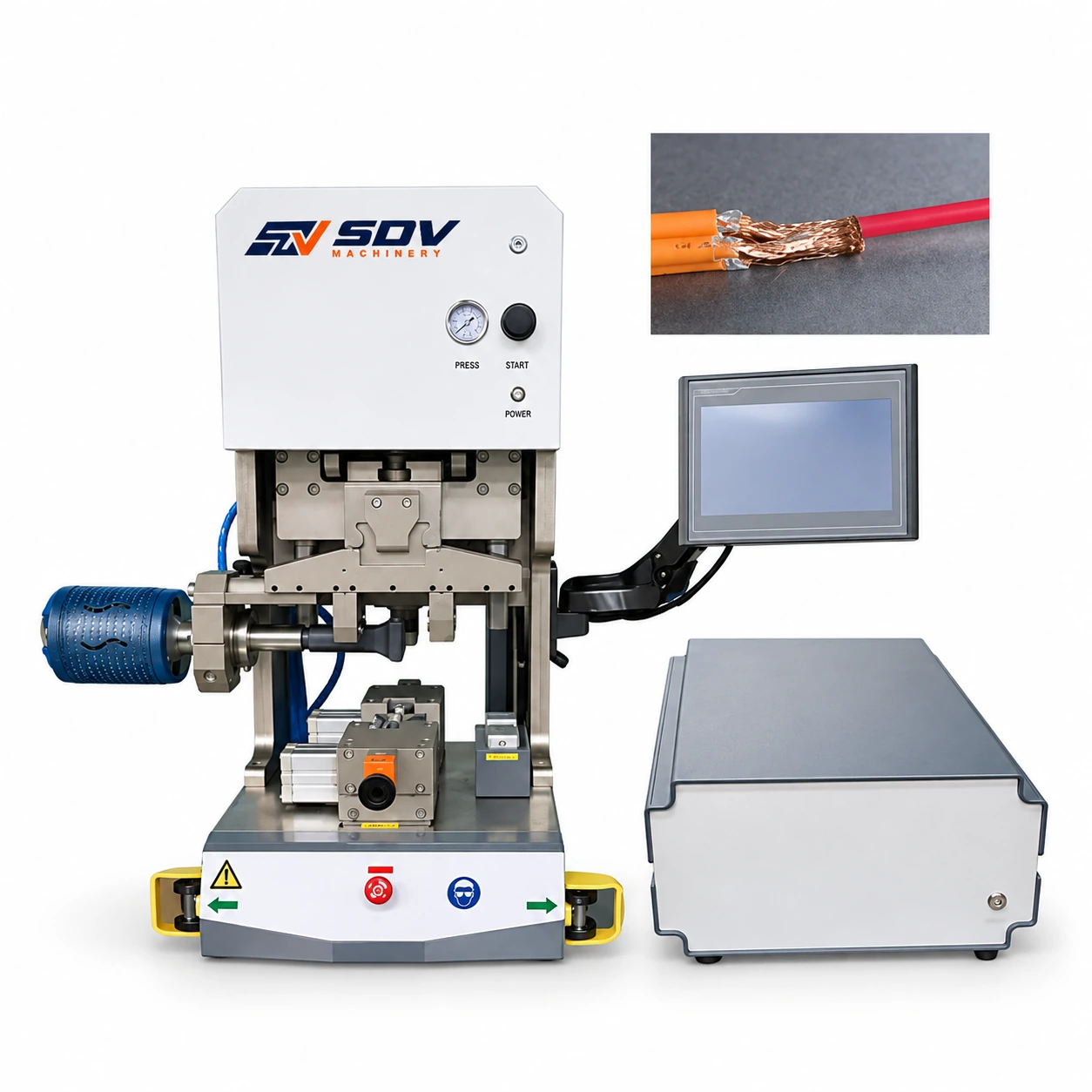

Universal thick cable ultrasonic welding machine EW-6145

Price of the selected optionon request
Delivery options

Description

Feature

● Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, welding workpiece vibration drop,

Chinese/English switching.

● Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust the frequency when changing heads)

● Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed.

● Manual adjustment of frequency and overcurrent protection during welding

● Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy

● The power box maintains stable output when the voltage fluctuates.

Specifications

Model
EW-6145
Language
Chinese/English
voltage
110/220V
Max. P ower
8000W
F requency
20HZ
Welding time
0.5S-2S
Welding range
25-70mm²
Operating humidity
0-40°
Working air pressure
0.2-0.8Mpa
Ambient temperature
20-70
Frame dimensions
90*58*85cm
Electrical box dimensions
46*33*17cm
Machine weight
70KG
Application for Universal thick cable ultrasonic welding machine EW-6145
