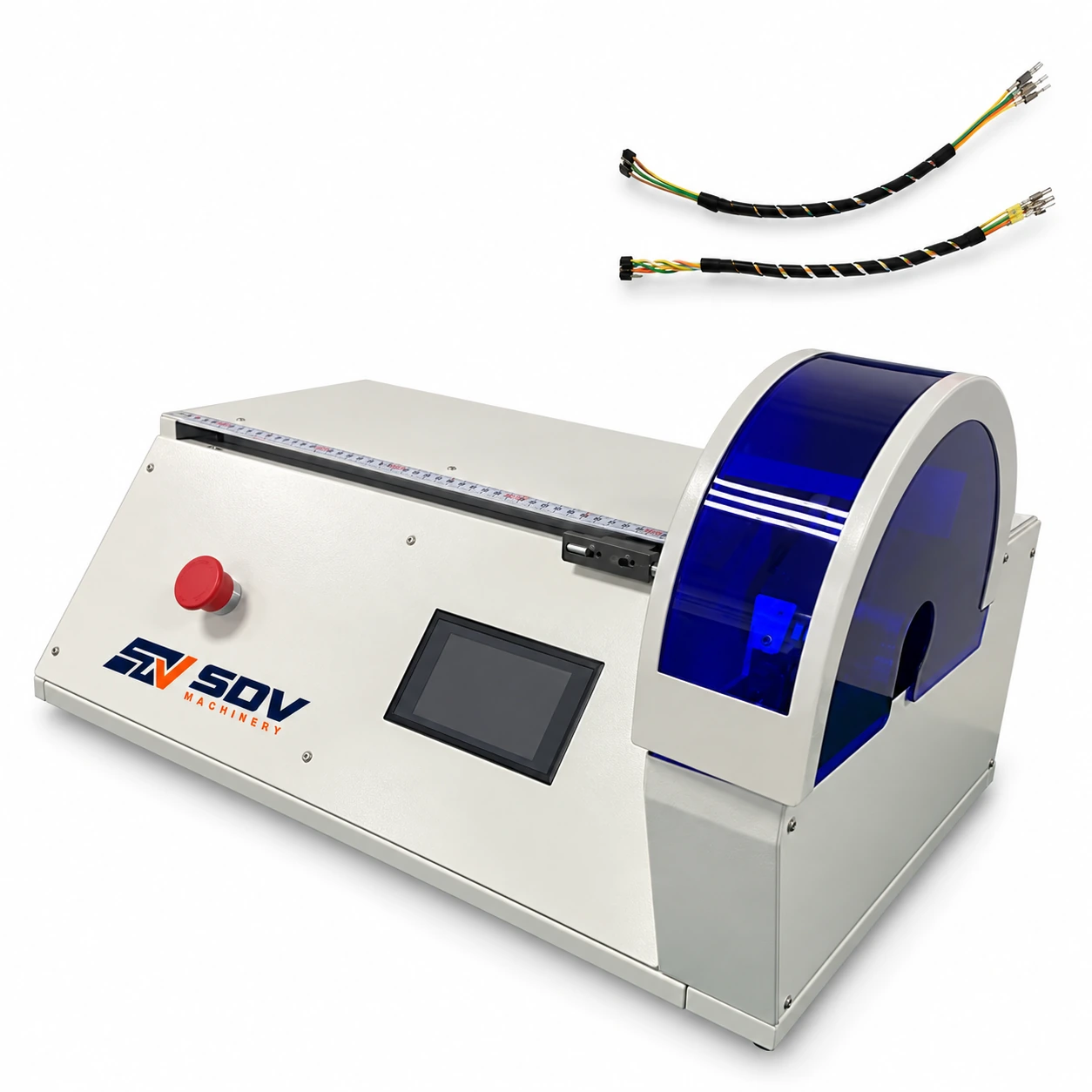

Half-meter tape winding machine EW-1835

Price of the selected optionon request
Delivery options

Description

Feature

1. Exclusively designed and developed products, specially customized for wire harness length, winding length of about 50cm.

2. The machine adopts pure electric mechanical principle, no external air source is required, convenient for workshop operation.

3. The machine adopts PLC touch screen control, winding head speed, traction displacement speed and other parameters are adjustable, multiple parameters can be input and saved at the same time, convenient for the use of various products.

Specifications

Model
EW-1835
Tape width
5-20MM
Applicable materials
Applicable to various materials of tape, PVC, cloth base, velvet base, various high-temperature fiberglass tapes
Applicable wire diameter
2-15mm (customizable beyond this range)
Dimensions
650 length * 400 width * 250mm height
Input power
220V/AC
Wrapping stroke
Maximum 50cm
Rotor speed
5 turns/second
Traction speed
0.15 meters/second
Wrapping effect
Flower wrapping and continuous wrapping, the overlapping part of the tape can be adjusted. If it exceeds the above standard machine range, it can be customized by sample evaluation.
Air source
N/A,pure electric
Pedal start
Yes
