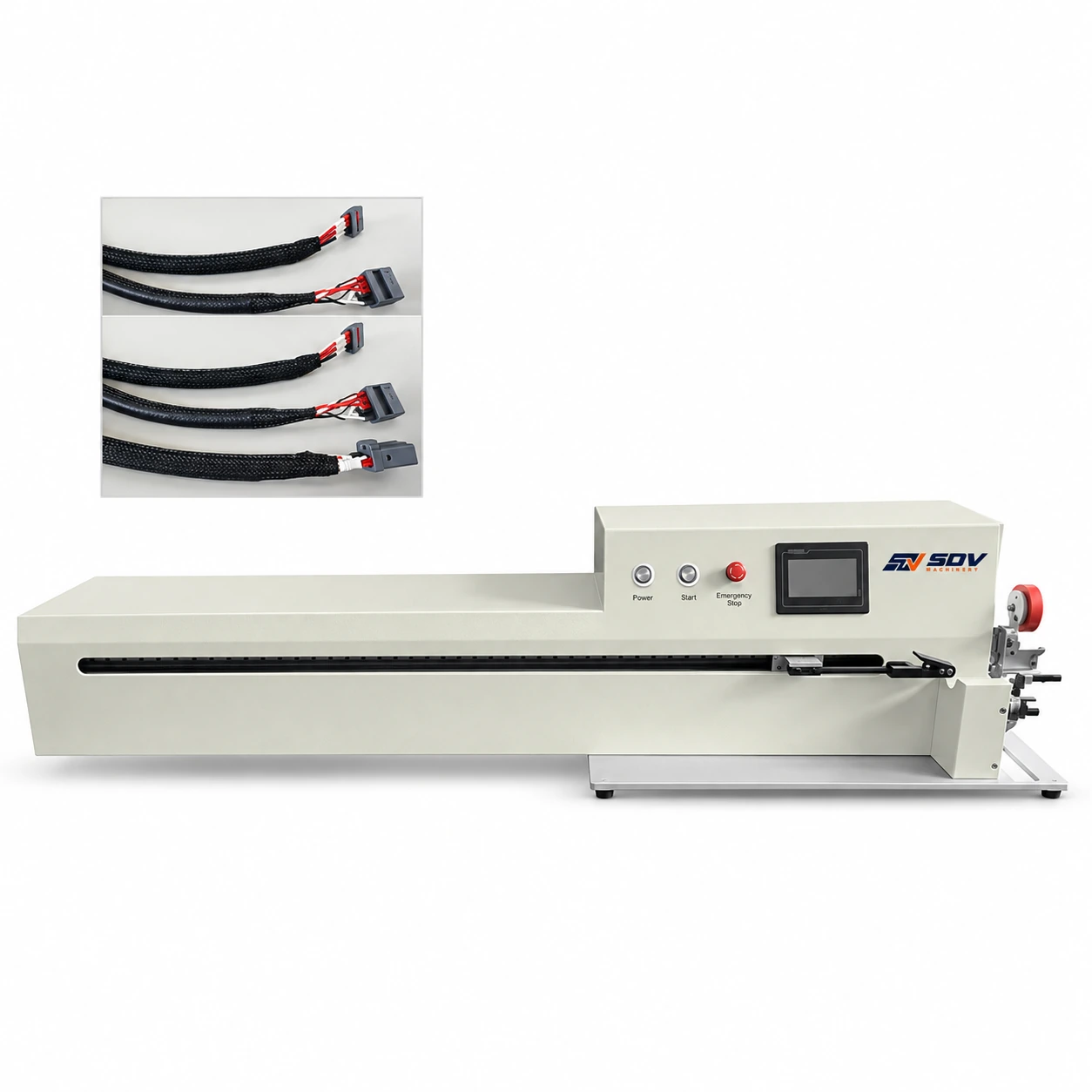

Automatic traction tape wrapping machine EW-1865

Price of the selected optionon request
Delivery options

Description

Feature

● This machine uses the domestic first-line brand Kunlun Tongtai full HD color touch LCD screen plus the single-chip self-developed motion control board, which is more efficient and stable.

● All actions of this machine are controlled by motors. The whole machine does not require an air source, and the motor is smoother, more stable and less noisy.

● It is suitable for the wrapping of tape after the middle joint is crimped.

● The tape length is adjusted digitally, which is convenient, fast and accurate.

●. The machine wrapping quality is stable, the efficiency is high, and the operation intensity can be reduced.

Specifications

Product Name
Automatic traction tape wrapping machine
Model
EW-1865
Operation Page
High-definition touch screen operation
Tape Specifications
<20mm(customizable)
Inner diameter specifications
Standard 25/32/38; 76 or other specifications can be customized
volume
L1532*W380*H363mm (excluding protrusions)
net weight
42KG
Applicable wire diameter
3-40mm
Winding length
1 meter (unlimited, customizable)
Winding speed
10R/s
Tape Type
Cloth base, electrical tape, PVC tape, acetate tape, etc.
Drive mode
Motor
Winding method
Full wrap, dot wrap, flower wrap, interval wrap
Application for Automatic traction tape wrapping machine EW-1865
