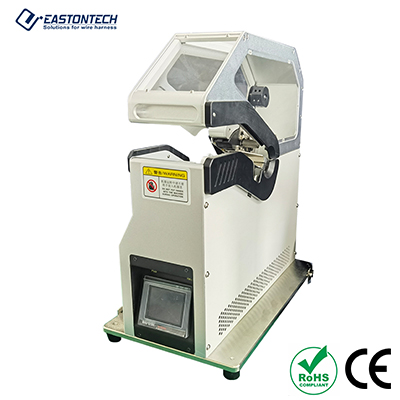

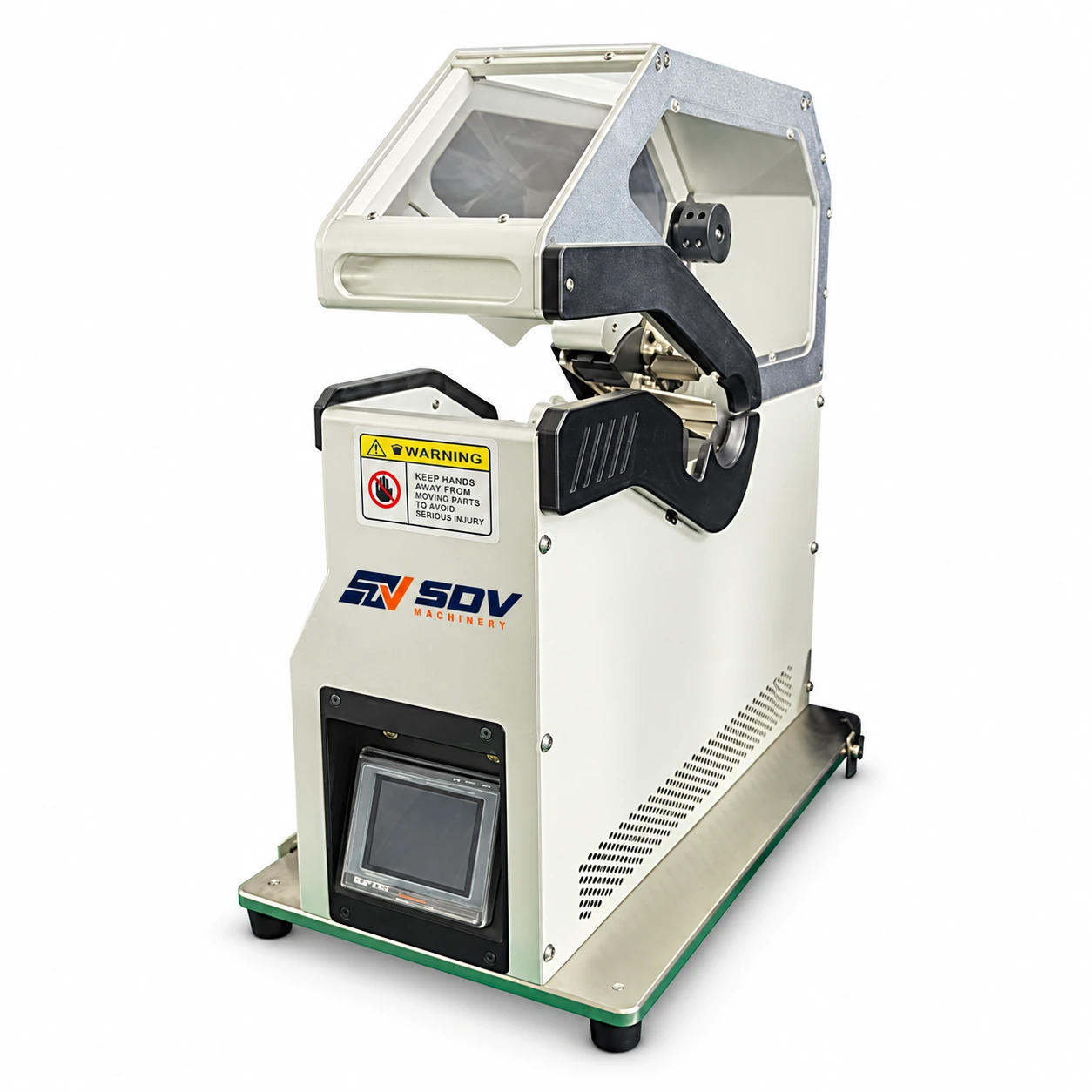

Desktop automatic wire tape machine EW-1860

Price of the selected optionon request
Delivery options

Description

Feature

The desktop branch wire gluing machine is a gluing device for short and thin wires, suitable for gluing branches of wire harnesses. The special design solves the problem of twisting of thin wire harnesses during gluing. The device controls the gluing of wire harnesses by stepping on the pedal, which can significantly improve the gluing efficiency. The surface of the wrapping layer is beautiful and smooth. The attached scale can ensure the length of the wire harness gluing.

This machine can wrap thin wires without twisting them, and open corrugated tubes without shrinking them. For wire harnesses with fewer branches, this machine can bypass the branches and perform uninterrupted tape wrapping.

Specifications

Model
EW-1860
Dimensions
385*300*330mm
Rated voltage
110V/220V (AC) (±10%)
Wire harness length
≥200mm
Wire harness diameter
2-18mm
Tape speed
280-460 RPM
Control buttons
Start, Pause, Stop
Applicable tape
9-19mm wide PVC, cotton, felt, etc.
Air source
N/A
Pedal start
Yes
Application for Desktop automatic wire tape machine EW-1860
