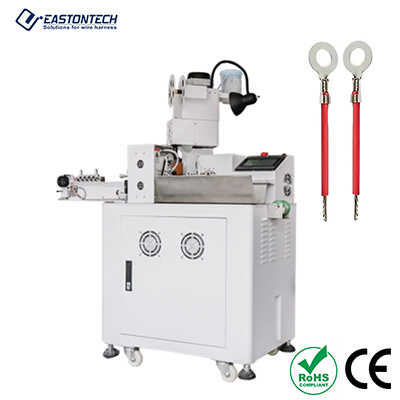

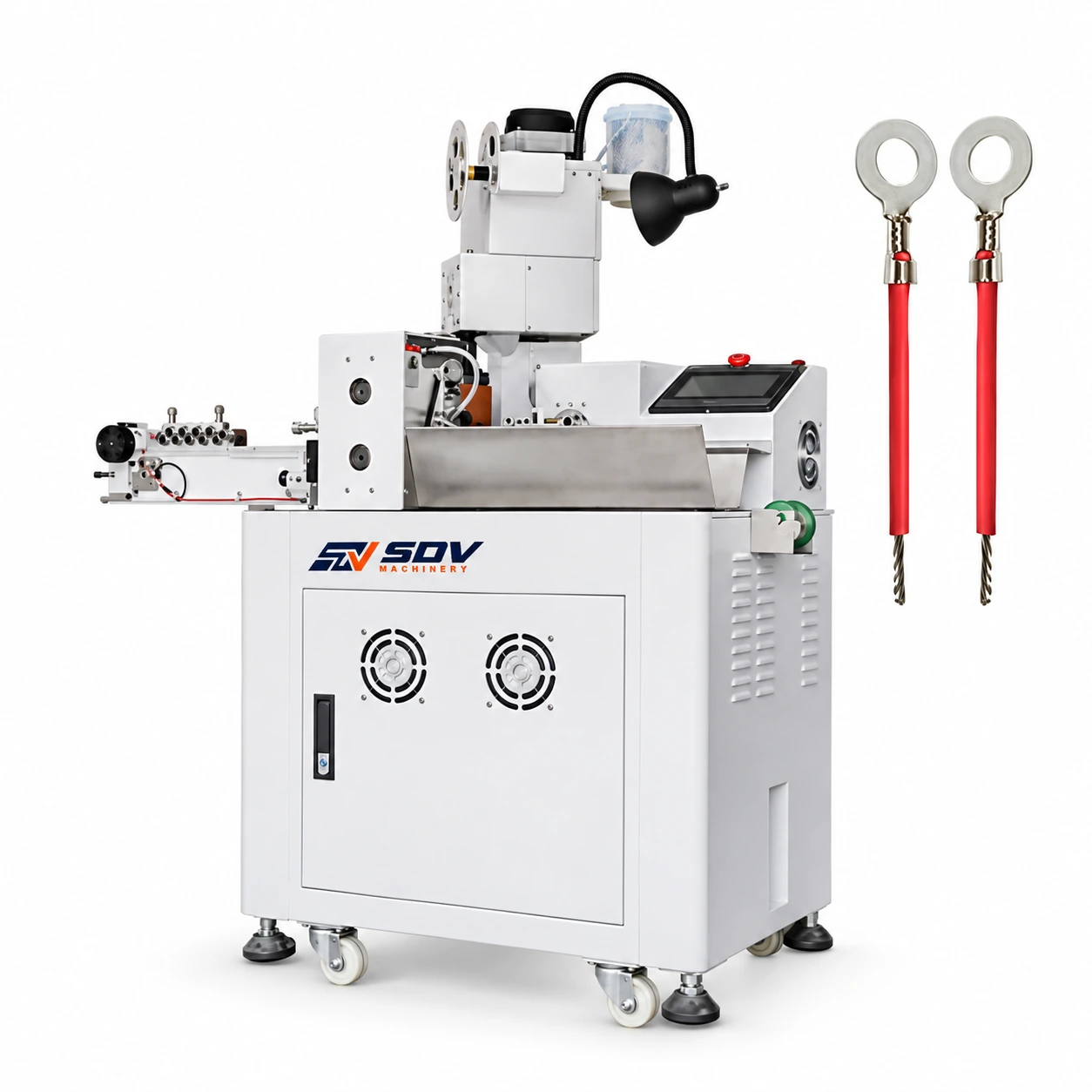

One end crimp terminal and one end tinning machine EW-9255

Price of the selected optionon request
Delivery options

Description

Feature

● One side stripping crimping, another side twiting tinning function.

● It can be equipped with horizontal die, straight die and single-grain die of the terminal machine, which can be quickly replaced and the replacement is very simple.

● The part is equipped with a wire shortage device. When the wire is processed, the machine will automatically send an alarm.

Specifications

Model
EW-9255
Applicable wire range
OD<4mm
Stripping length
1-10mm
Cut precision
±(1+0.004*L) mm, L=cut length
Cutting length
35-9900mm
C apacity
1500-1800pcs/hour (L<300mm)
Crimping force
2.0T
Applicators
30mm or 40mm strokes for optional
Air pressure
0.4-0.6Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension
720*850*1650mm
Power supply
220V/110V/50HZ/60HZ
Application for One end crimp terminal and one end tinning machine EW-9255
