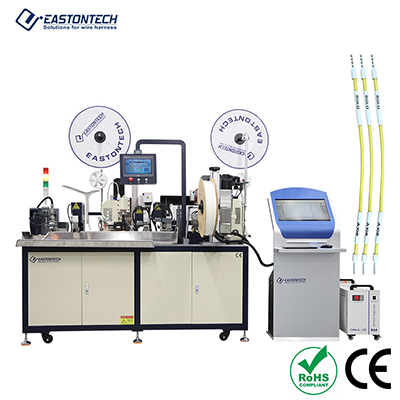

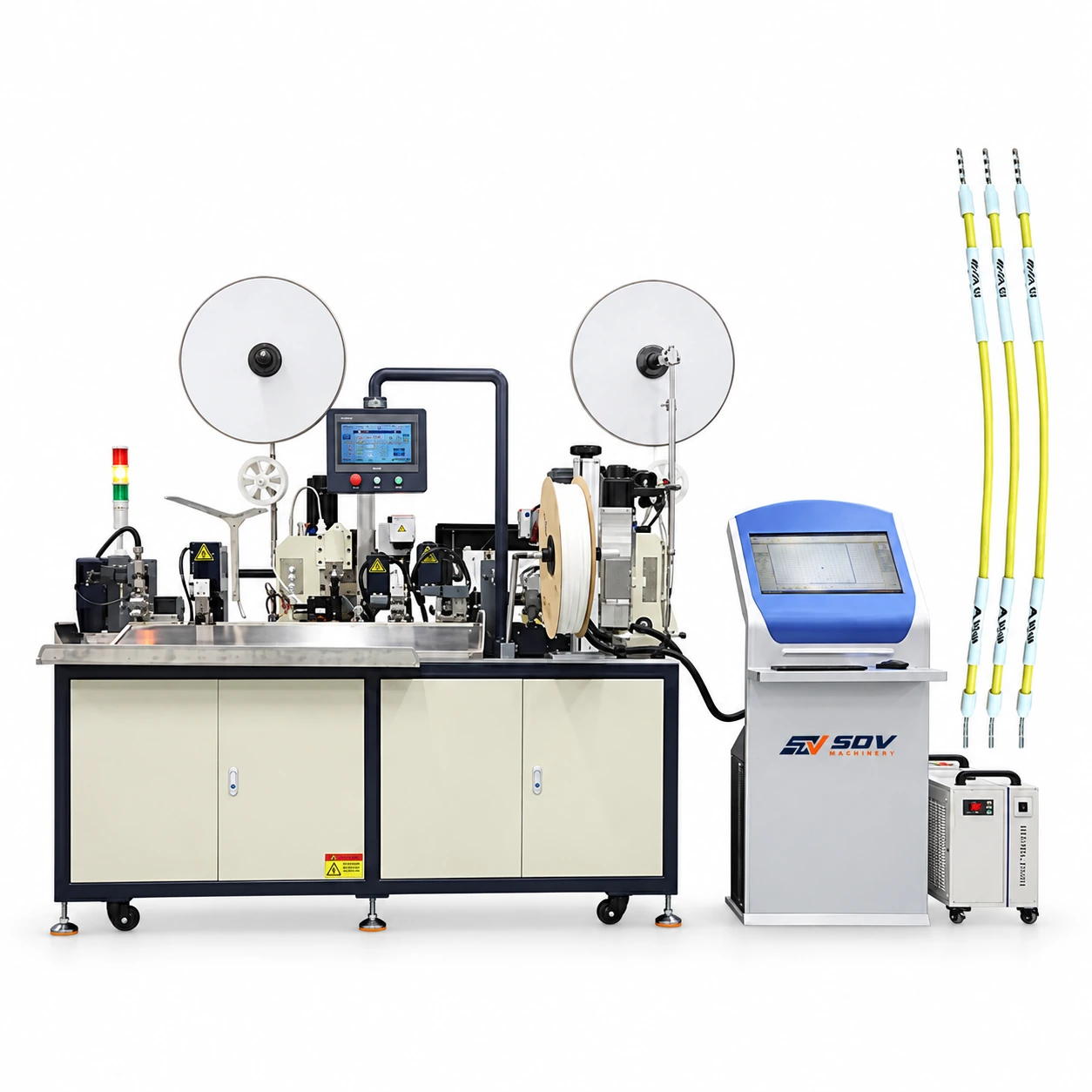

Double Head Terminal Crimping and Number Tube Heating Machine EW-9270

Price of the selected optionon request
Delivery options

Description

Feature

● Equiped with servo motor sytem and linear trasmission sytem, Front end and rear end can process at the same time, increase efficiency.

● The screw tool holder adopts a horizontal three-group independent blade design, which is high-precision, easy to adjust and replace.

● The stripping length is not limited, and the wire stripping is handled more cleanly.

● Laser marking, without consumables. Save time and save cost.

Specifications

Model
EW-9270
Applicable wire range
0.3-6 mm²
Stripping length
1-15mm
Cutting length
80-9999mm (Short wire can customize)
Crimping Force
2.0T-4.0T
Capacity
1200-1400pcs/hour
Applicators
30mm or 40mm strokes for optional
Air pressure
0.5-0.7Mpa
Detection
Air pressure detection, wire detection, heat shrink tube detection, crimping terminal detection, pressure monitoring (optional)
Power
220V/110V/50/60HZ
Function
Wire cutting, single (double) end stripping, single (double) end crimping, double end threading of number tubes, double end drying of number tubes
Machine Dimension
2000*750*1850mm
Pedal
No
