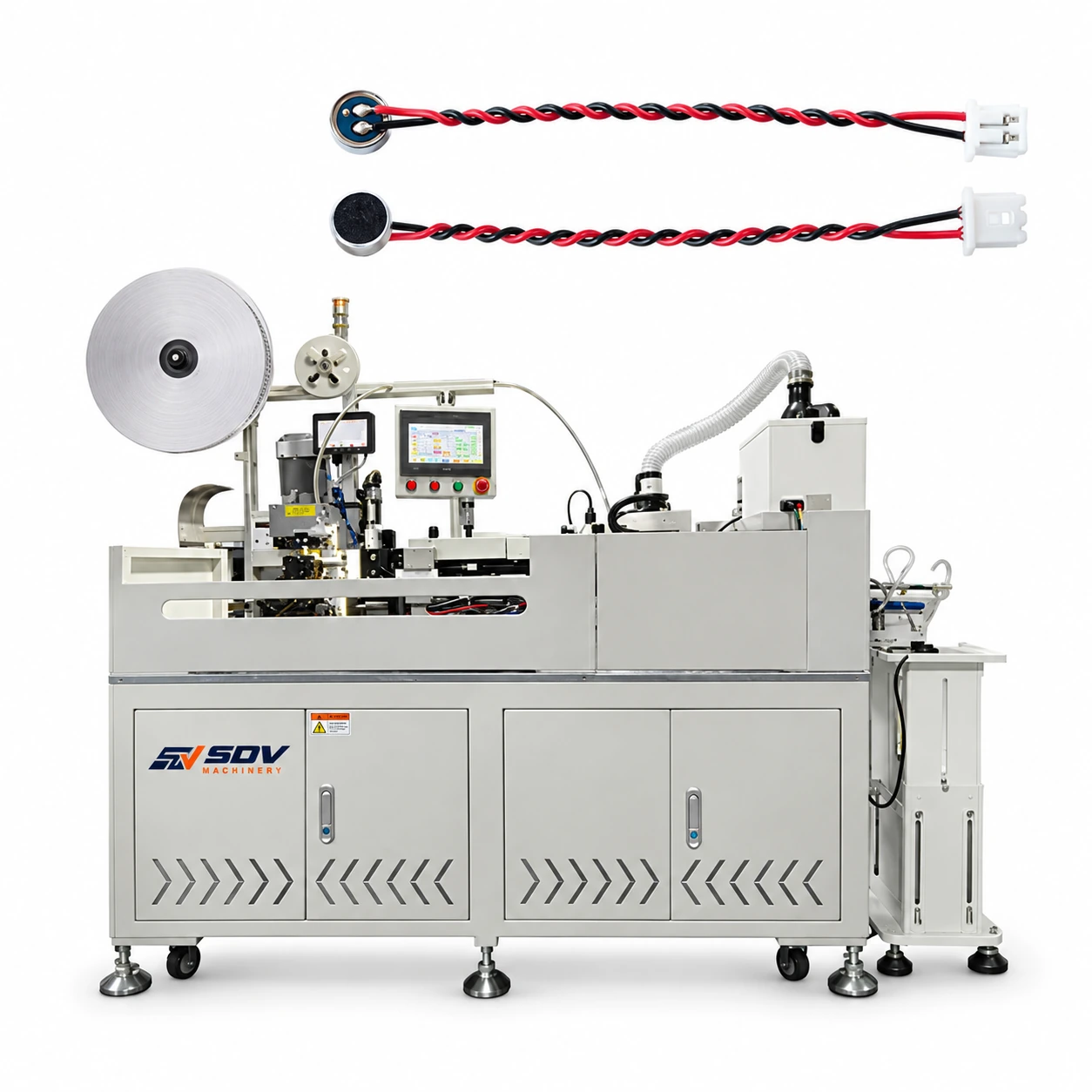

One end housing insertion another side welded microphone with twisted wire EW-9275

Price of the selected optionon request
Delivery options

Description

Feature

● Using high-quality components, the machine runs smoothly, quickly, with low noise, high stability and reliability, and can operate continuously for a long time.

● Function integration: This device integrates multiple functions such as single end crimping, tinning, shell insertion, and microphone soldering for electronic wires.

● Fully automated operation: The cutting stripping crimping of terminals, insertion of housing, welding of microphone heads, the entire process is fully automated.

● Equipped with advanced control systems and sensors, it can achieve functions such as automatic feeding, positioning, processing, and detection.

Specifications

Model
EW-9275
Applicable wire range
AWG28-AWG18
Stripping/ Twisting length
Front end stripping 0-5mm, rear end stripping 0-5mm
Cutting length
15-500mm(Length can be customized)
Capacity
1800pcs/hour(Capacity will vary according to length.The machine can work continuously for 24 hours)
Wire OD
0.5-1.0
Rubber shell type
1.0,1.25
Microphone head type
40,60
Detection
Terminal pressure detection, Core wire, terminal, Rubber shell, Microphone direction,Welding visual inspection
Power
220V/110V/50/60HZ
Processing digits
Five groups, can be twisted together
Machine Dimension
2133*1742*1700mm
Machine Weight
700Kgs
Air pressure
0.5-0.7MPA
Application for One end housing insertion another side welded microphone with twisted wire EW-9275
