Wire Processing and Electrical Installation Equipment

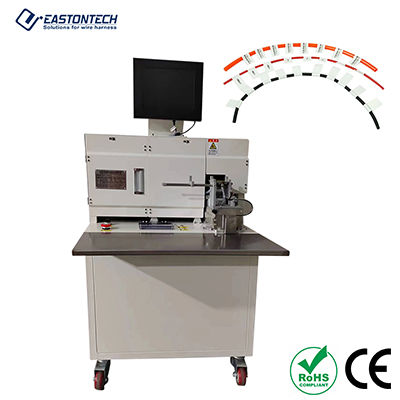

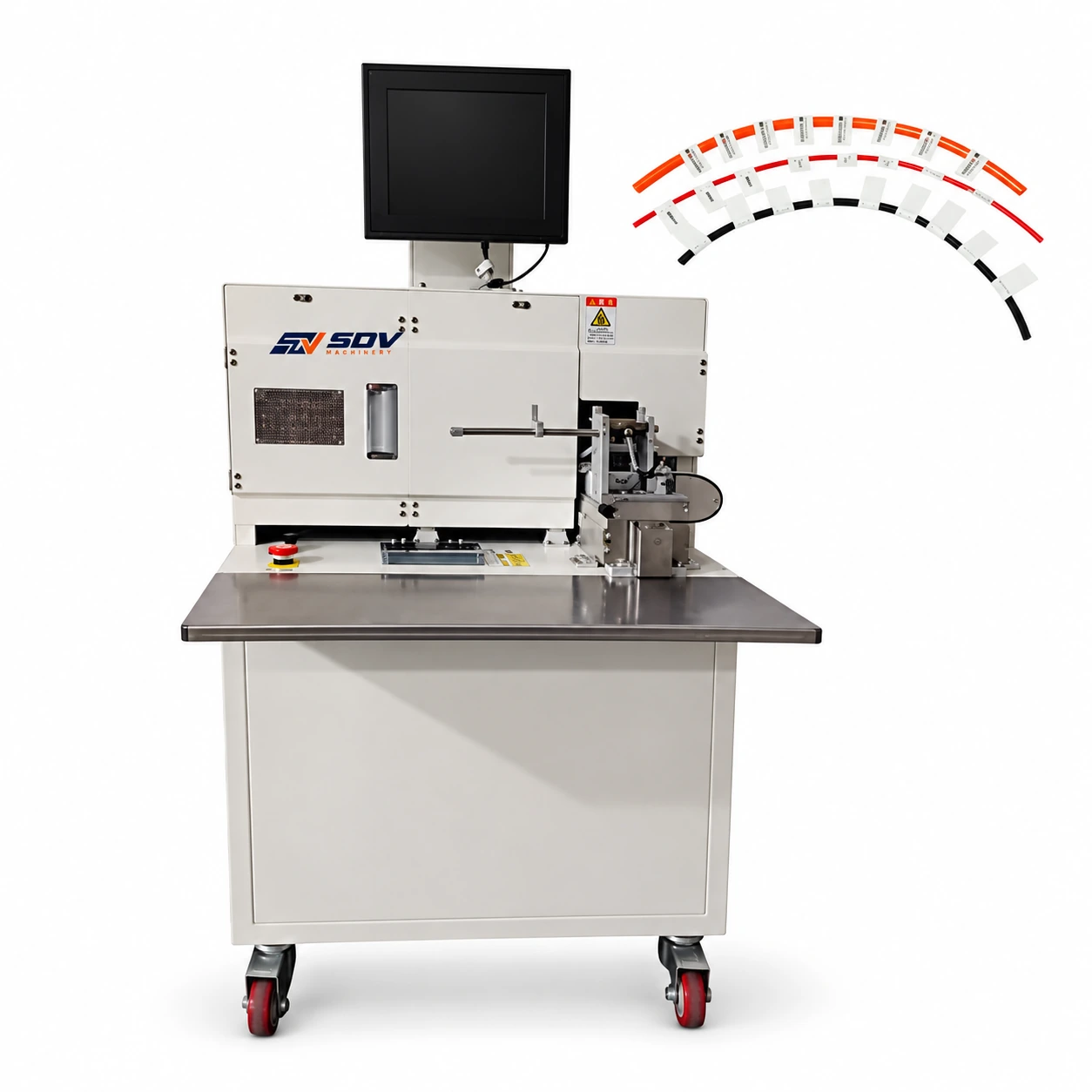

Automatic Real-time Printing Half-fold Labeling Machine EW-7725

Price of the selected optionon request
Delivery options

Description

Feature

● Servo motor precise positioning.

● Germany SICK label electric eye fast induction label gap to complete the completion of the label to complete the identification.

● Reasonable mechanical structure design to ensure smooth and stable labeling; humane and perfect structural design.

● Easy to apply, can be adjusted in a wide range, to achieve different specifications of wire products on the roll labeling.

● Adjust the machine without turning the screws, directly in the display input label size, wire diameter size can be adjusted.

● The equipment has memory group can, performance is quite stable.

● Improve production efficiency, to solve the manual labeling slow, lack of accuracy, personnel changes and labor costs and other advantages.

Specifications

Model
EW-7725
Applicable Product Sizes
Sizes: 1-3.5mm, 2.0-5.5mm, 4.0-10mm
Additional information
Suitable for various round wires, flat wires, water pipes, etc.
Applicable Label length
20mm-100mm(Other length can be customized)
Applicable Label Size Width
5mm-45mm (Other width can be customized)
Standard Positioning Ruler
15-200mm
Maximum Label Roll Outer Diameter
200mm
Labeling Accuracy
±0.2mm
Labeling Speed
800-1800 pcs/hour (depending on label size and operator efficiency)
Dimensions
655mm × 811mm × 1175mm
Weight
130kg
Power Supply
220V / 50Hz; Power: 0.25KW
Air Pressure
0.5-0.7Mpa
Operating Temperature
5°C to +40°C
Relative Humidity
20%-90% RH
Pedal Start
Yes
Application for Automatic Real-time Printing Half-fold Labeling Machine EW-7725
