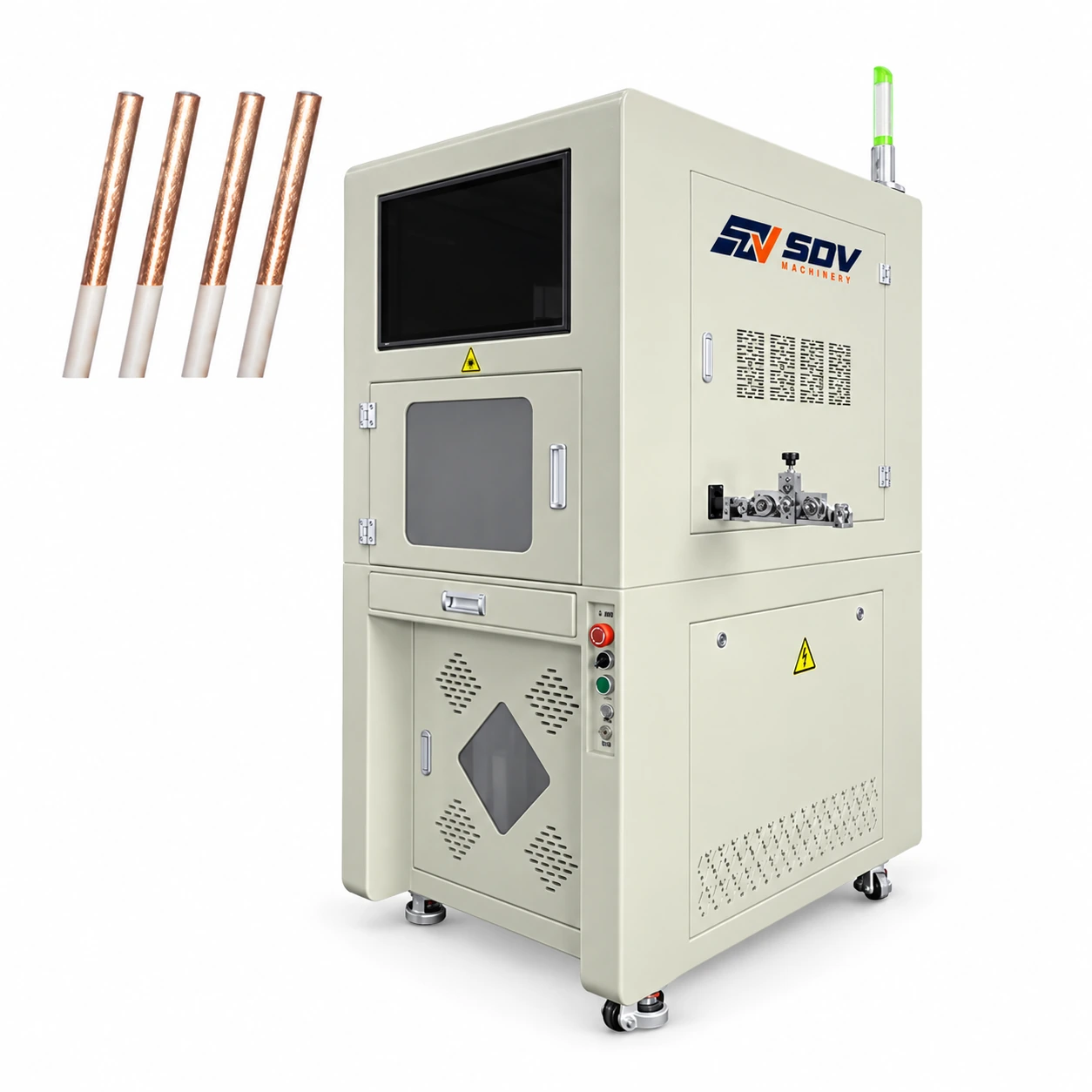

Laser Wire Cutting and Stripping Machine(0.1-10 mm²) EW-3350

Price of the selected optionon request
Delivery options

Description

Feature

The CO2 laser peeling machine is a high-performance laser processing equipment. All important parts of the machine are first-line brands. The performance of the whole machine is stable and reliable, and the service life is long. The water cooling system specially designed for long-term work can ensure that the system can adapt to overload operation and work in harsh environments.

Through computer design, using the high energy of laser focus, this system can quickly and efficiently complete laser peeling on the wire.

The wire cutting machine adopts a one-button quick switch of the all-metal straightener, and the wire feeding wheel can be equipped with rubber wheels and iron wheels.

Electric conduit wire feeding, the knife holder adopts imported material heat treatment grinding process. Save labor and time and improve production efficiency.

Mainly used for electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, etc.

Fully automatic cutting, stripping, half stripping, middle stripping, one-time completion, fast change of wire specifications and sizes, high production efficiency.

Specifications

Model
EW- 3350
Wire size
0.1-10 mm²
Working area
100mm*100mm
Stripping length
Head:0-300mm Tail:0-90mm
Laser type
Metal RF Lasers
Laser wavelength
10640NM
Cutting length (L)
0.1-99999.9mm
Power
4KW
Capacity
6000-1000pcs/H
Catheter control method
Motor
Power supply
AC220V 50/60Hz
Dimension
L753*W1189*H1653mm
Weight
180KG
Air pressure
0.5-0.6Mpa
Foot Pedal
N/A
Application for Laser Wire Cutting and Stripping Machine(0.1-10 mm²) EW-3350
