Wire Processing and Electrical Installation Equipment

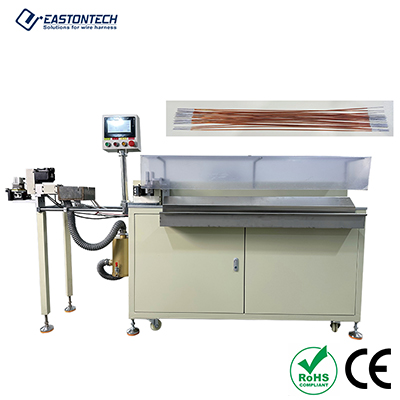

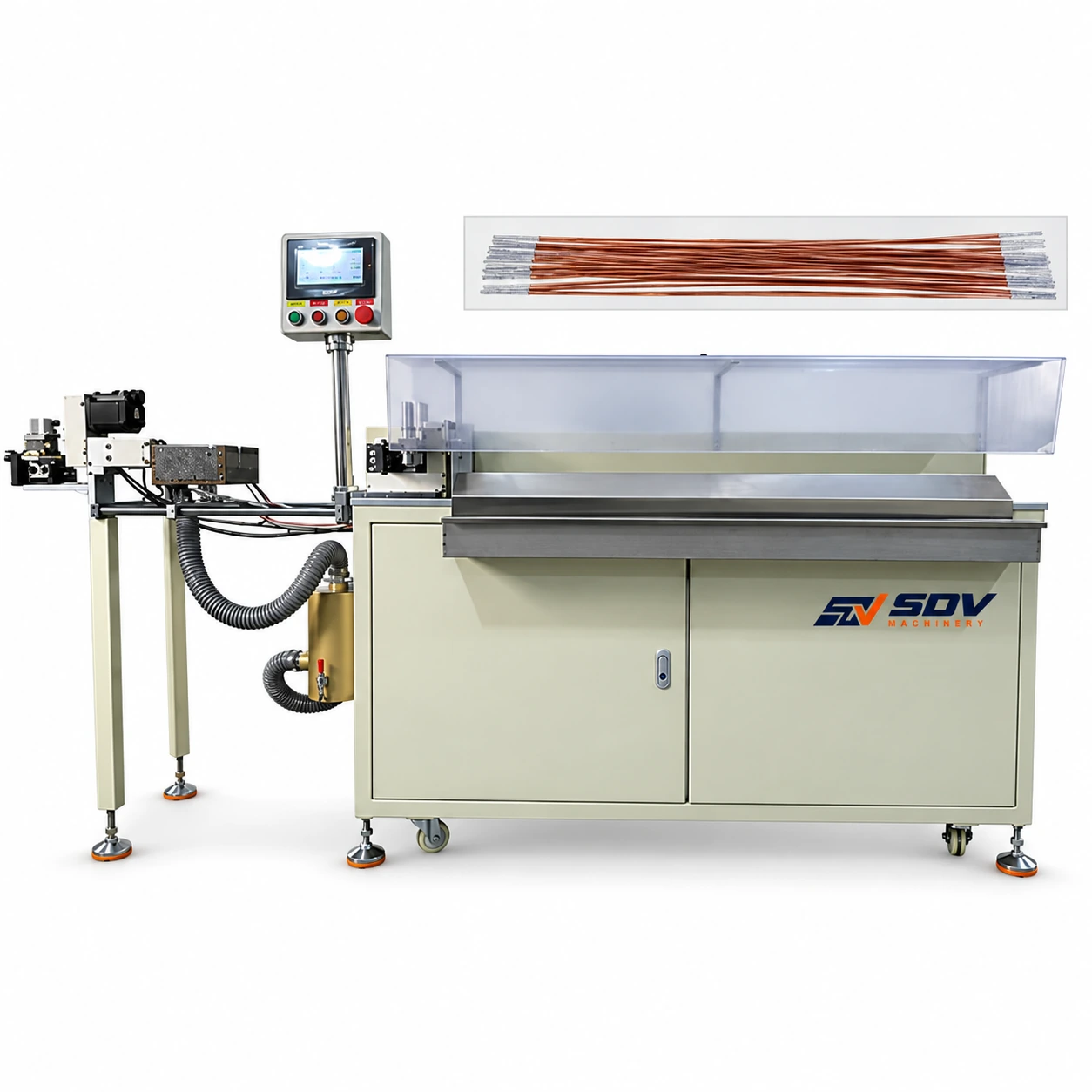

Enameled wire stripping and tinning machine EW-9285

Price of the selected optionon request
Delivery options

Description

Feature

The appearance design is novel, the structure is simple, the operation is easy, the use is convenient, the performance is stable, and the maintenance is convenient. Automatic peeling, automatic tinning, and automatic wire cutting.

1. The touch screen is more intuitive, and the design and production are extremely extensive.

2. Servo motor control, strong force and fast speed.

3. The wire drawing type is adopted, and the wire cutting is more accurate.

4. The dust suction device makes the peeling and tinning cleaner.

Specifications

Model
EW- 9285
Wire Diameter
Tin: 0.1-1.8mm; No tin: 0.1-3mm
Cutting length
100-2400mm
Power
800W (Max 2000W)
Voltage
AC110V/220V 50/60HZ
Body size
L2700×W440×H1400mm
Air supply
0.4-0.6Mpa.
Foot pedal
N/A
Application for Enameled wire stripping and tinning machine EW-9285
