Feature
● 5–12 Independent Feed Axes — Simultaneous Multi-Wire Supply

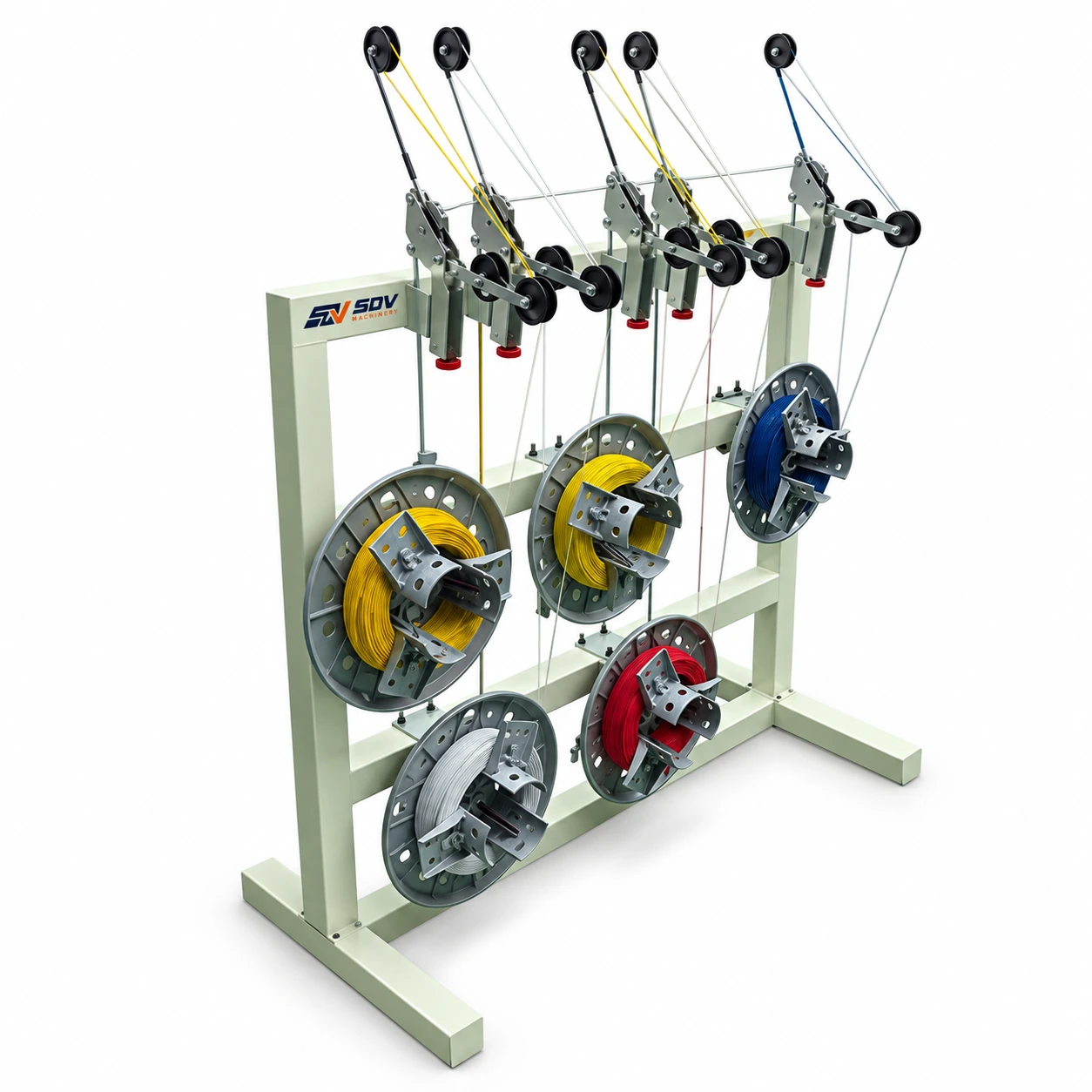

Each axis of the EW-1790 feeds one wire spool independently, supplying 5 to 12 wire gauges or colours simultaneously to the downstream machine. This eliminates the multiple single-spool prefeeder stands that multi-wire processing machines would otherwise require, consolidating the entire wire supply into one compact unit.
● Modular Axis Configuration — Standard and Custom
Standard axis counts are 5, 6, 8, 10, and 12. Higher counts are available on a customised basis. Each axis handles coils up to 280mm OD, 100mm height, and 140mm minimum ID — covering the standard small spool formats used for fine to medium gauge wire in electronics and wire harness production.
● Pneumatic Feed Control — No Complex Electrical Integration
The EW-1790 uses pneumatic actuation (0.4–0.6MPa) for feed control, requiring no electrical signal connection to the downstream processing machine. This makes it compatible with any brand of multi-wire automatic stripping, cutting, or crimping machine without custom wiring or PLC programming.
Application Range
● Multi-wire automatic stripping and cutting machines
Multi-wire processing machines that cut and strip 5–12 wires simultaneously require a matched prefeeding solution that supplies all wire gauges in parallel at the correct tension. The EW-1790's independent per-axis feed control maintains consistent tension across all wire positions simultaneously, regardless of individual spool weight variation as each coil depletes at a different rate.
● Consumer electronics and appliance harness production
Wire harness sub-assemblies for multi-connector electronics and appliance products use 5–12 wires of different gauges or colours supplied from individual spools. The EW-1790 consolidates these spools into a single prefeeding unit positioned at the production station, replacing the cluster of passive reel stands that create tangling and tension variation on high-cycle multi-wire lines.
● Automotive harness multi-wire sub-assembly
Automotive sub-harness production lines processing multiple wire gauges simultaneously — such as 5-wire door module sets or 8-wire instrument cluster harnesses — use the EW-1790 to supply all wires from a single organised prefeeding station, reducing floor space and simplifying wire path management compared to individual standalone reel stands.
