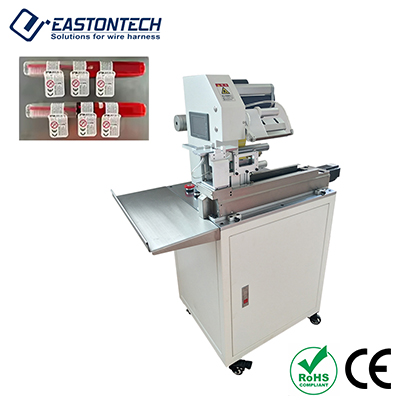

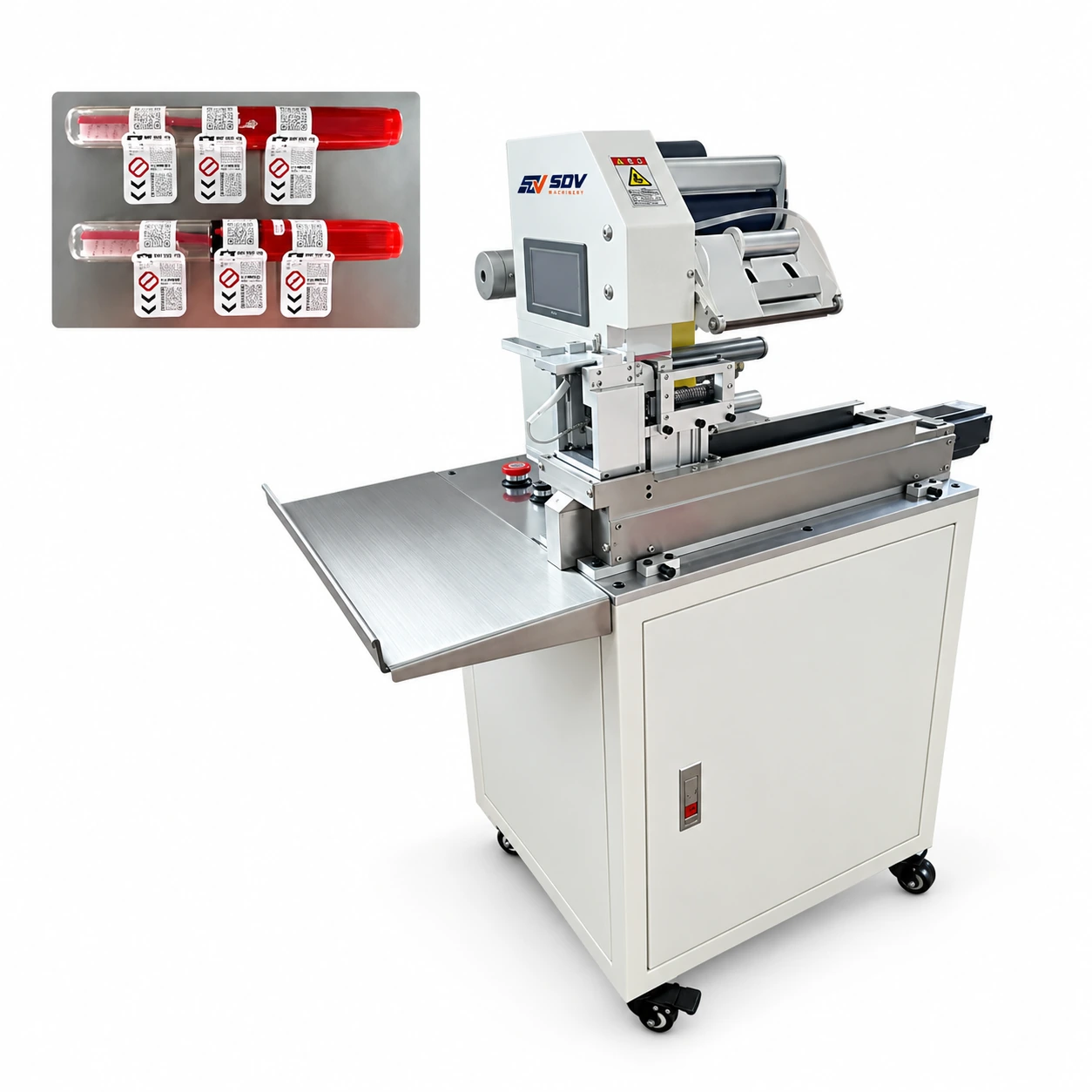

Automatic Folding and Labeling Machine EW-7750

Price of the selected optionon request
Delivery options

Description

Feature

● The label is automatically delivered to the position, peeled off, and automatically folded in half on the wire.

● The machine is compact and practical.

● With higher production efficiency and production quality, manual laying, automatic positioning and feeding of the machine.

● Automatically peel and attach labels to wires.

● With higher label accuracy and faster operation.

Specifications

Model
EW-7750
Applicable Label Length
40 mm–180 mm
Applicable Label Width
5 mm–45 mm
Standard Positioning
200 mm
Max Label Roll OD.
240 mm
Max Label Roll ID.
76 mm
Labeling Speed
1500–1800 pcs/h
Labeling Accuracy
±0.2 mm
Applicable Products
Suitable for various round wires, flat wires, and water pipes
Optional Printing Function
Supports real-time printing, online printing, one-by-one labeling and printing integration
Relative Humidity
20%–90% RH (non-condensing)
Operating Temperature
5℃–40℃
Air Pressure
4–6 bar
Power Supply
220V /110V
Foot Pedal
YES
Weight
86 kg
Dimension
580 mm × 680 mm × 1000 mm (L × W × H)
Application for Automatic Folding and Labeling Machine EW-7750
