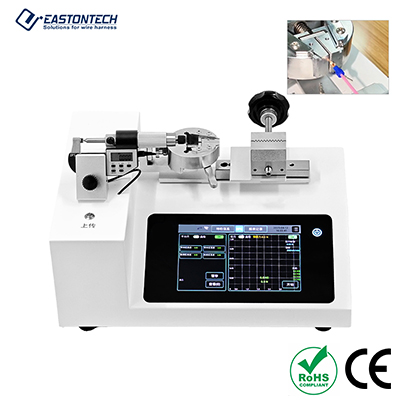

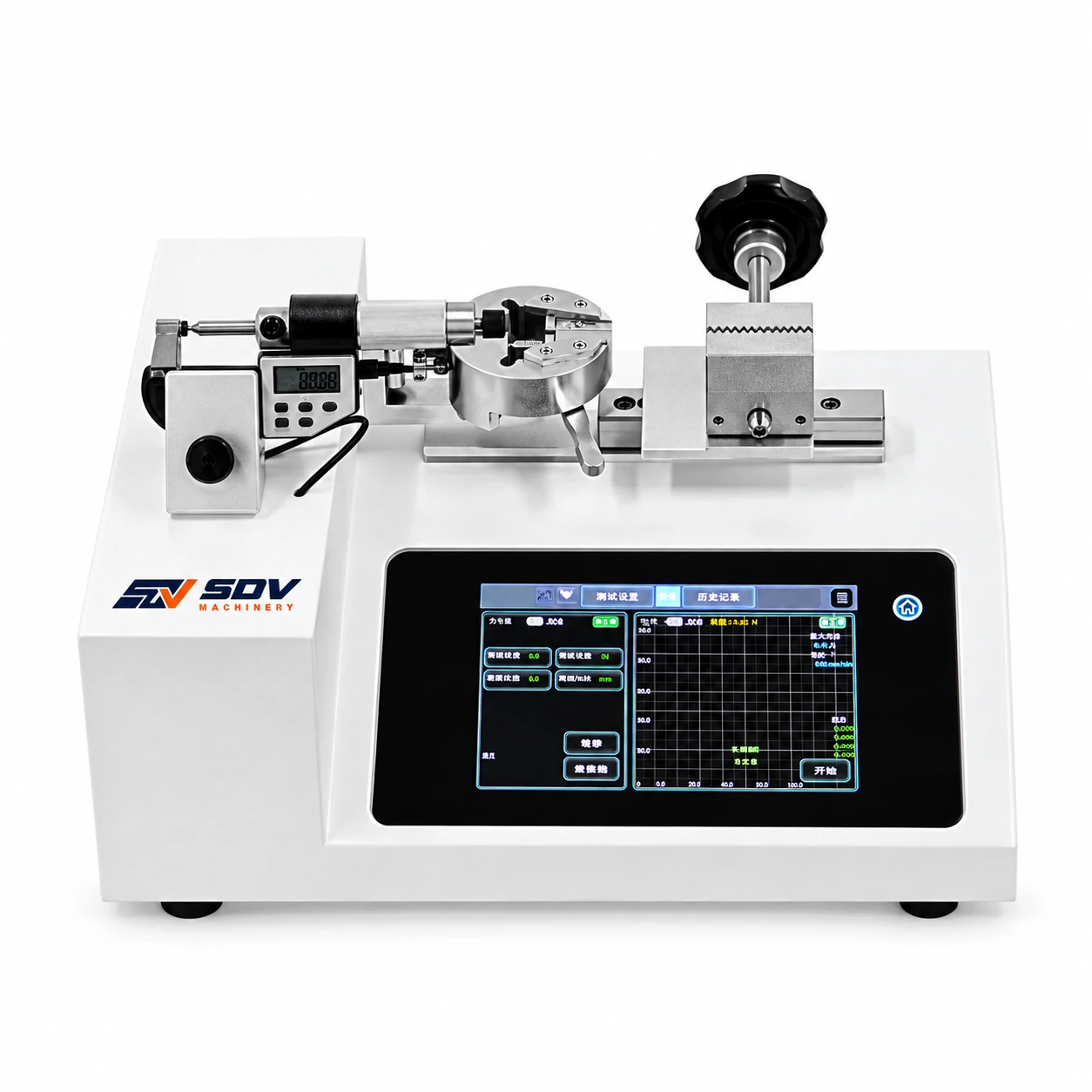

Intelligent Tensile Testing Machine EW-2615

Price of the selected optionon request
Delivery options

Description

Feature

● The terminal appearance dimensions and pull-off force can be tested simultaneously at a single station.

● Micrometer data is automatically recorded and judged to improve efficiency and reduce error rate.

● No need to manually fill out test reports, automatic recording, traceability, and prevent fraud.

● Data can be exported in Excel or CSV format.

Specifications

Model
EW-2615
Range of tension measurement
0-50kg
Tensile testing mode
Dual mode
Tensile testing journey
0-30mm
Tensile testing accuracy
0.2%
Size measurement range
0-25mm
Hardware configuration
4-core 1.83GCPU, 32GB hard drive
Display configuration
8-inch LCD display with resolution1920x1200, Capacitive touch screen.
More features
Supports reports, WiFi, MES interface, USB interface, etc.
Application for Intelligent Tensile Testing Machine EW-2615
