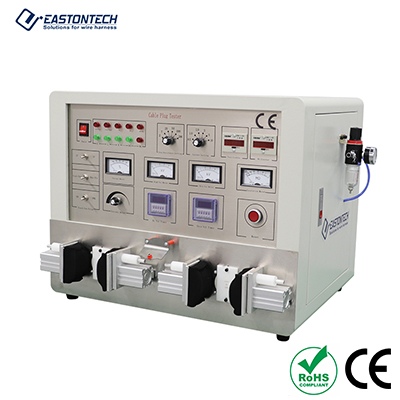

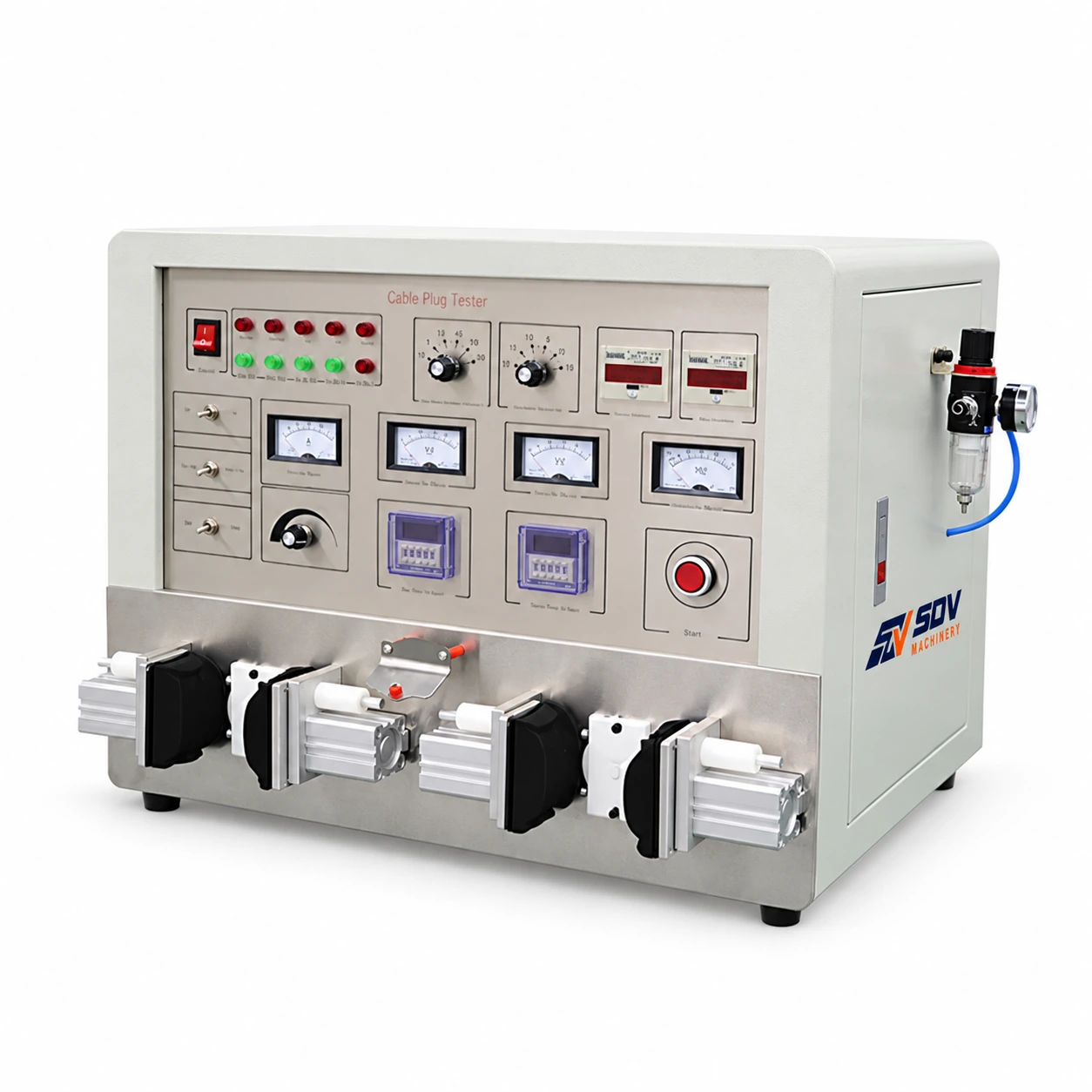

Power Plug Tester Machine EW-2605

Price of the selected optionon request
Delivery options

Description

Feature

● Use Panasonic PLC control.

● Test wire type: single head: 2P non-polar, 2P click non-polar, 2P polarized, 3P non-polar.

● 3P polarized double head: 2P non-polar, 2P parallel wire, 2P cross wire, 3P parallel wire, 3P cross wire.

● Counting function: automatic counting and ejection function of qualified products and defective products.

● Qualified products are automatically ejected and qualified marks are printed; defective products are automatically mold-locked and have sound and light alarms.

Specifications

Model
EW-2605
Insulation voltage
DC 500V
Insulation cathode resistance
2,5,20,50,100,200MΩ six levels
Internal high voltage
AC 0-5KV continuously adjustable
Leakage current
0.5,1.0,1.5,2.0,3.0.5.0,10,20mA
External high voltage
AC 0-5KV/1.5mA continuously adjustable
Wire sensitivity
≥10pF
Test time
insulation, internal and external hiah voltage time can be setarbitrarily
Air pressure
≤ 4Kgf/cm2
Foot pedal start
Yes
