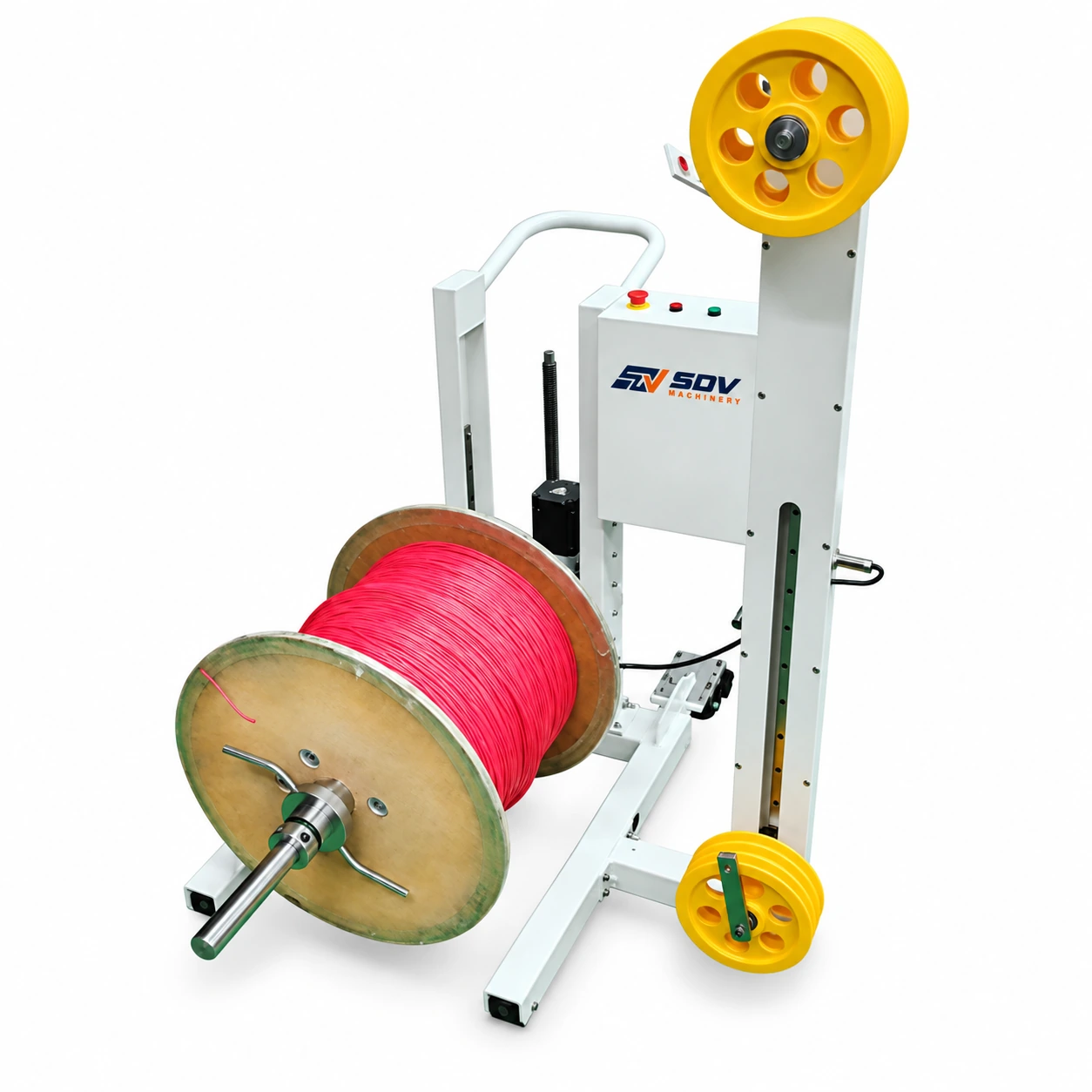

Movable Lifting Servo Pre-feeding Machine EW-1795

Price of the selected optionon request
Delivery options

Description

Feature

• Servo motor

The speed can be automatically adjusted according to the position of the pulley. The higher the pulley position, the faster the pay-off speed.

• Forward and reverse switching function

D on't need to consider the front and back of the spool when installing it, which is convenient and quick

Specifications

Model
EW-1795
Feeding roller motor
750W servo motor
Lifting motor
86 Closed Loop
Transmission speed
3000r/min
Max. Loading weight
120kgs
Feeding speed
60m/min
Cable drum outer diameter
400-800mm
Cable drum width
500mm
Wire storage roller
4 sets
Cable drum inner diameter
35-85mm
Machine size
1100*1120*1250mm
Weight
100kgs
Power
1400W
Application for Movable Lifting Servo Pre-feeding Machine EW-1795
