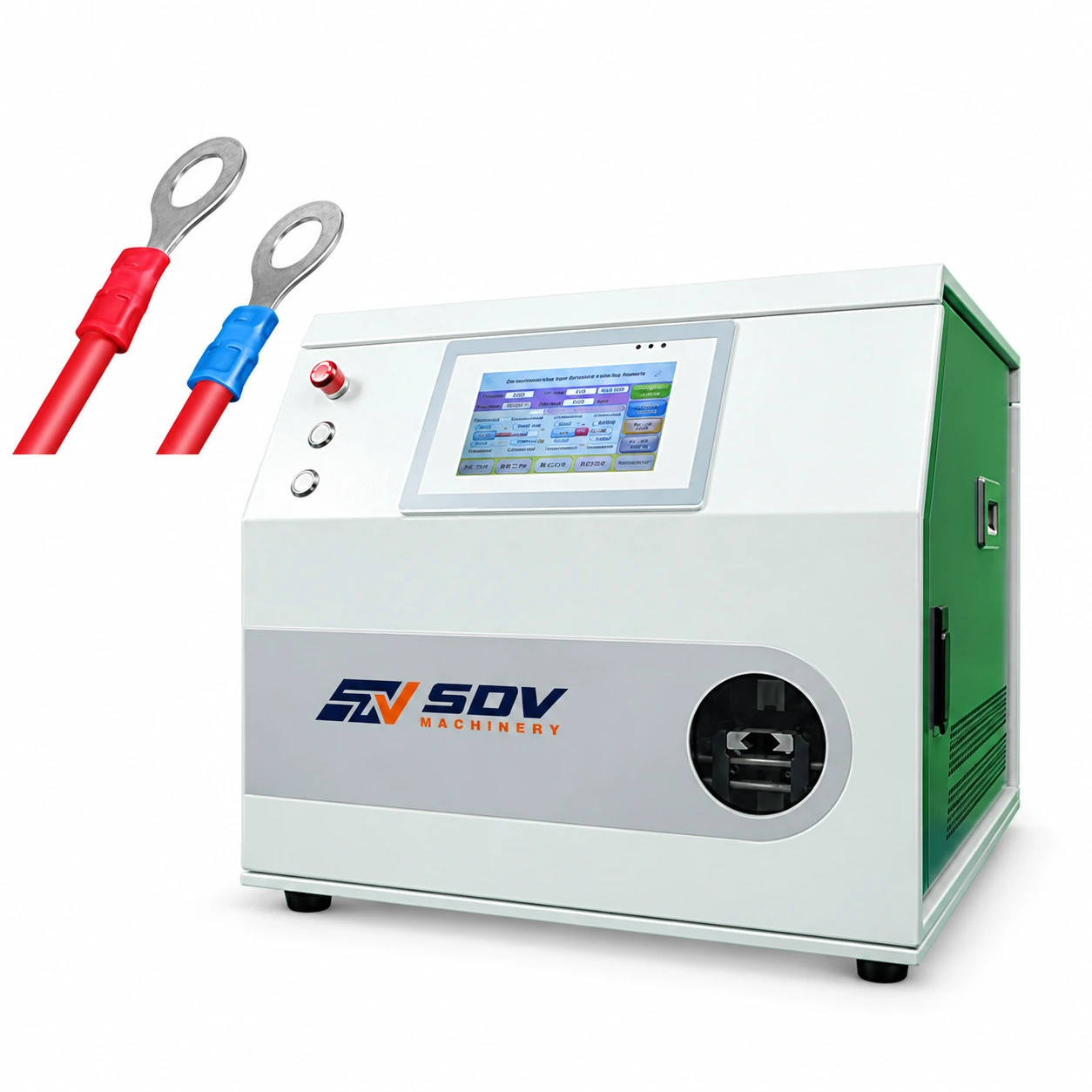

Pre insulated terminal machine EW-5580

Price of the selected optionon request
Delivery options

Description

Feature

● Sharing OTUTs of the same model does not require adjustment, greatly saving model switching time and increasing production flexibility, allowing you to quickly respond to diverse production needs.

● Adopting a 7-inch high-definition color operation screen, the interface is simple and easy to understand, with a visual parameter setting and debugging interface, allowing operators to quickly get started without complex training.

● Avoid flying copper with twisted wire mechanism.

● Servo motor crimping is more precise.

● Single station for peeling, twisting, and crimping can be completed in one go.

Specifications

Model
EW-5580
Applicable core wire diameter
0.5-6mm
Processing capacity
About 3 seconds per cycle(The speed varies depending on the product)
Machining length
The outer skin length is about 40mm
Stripping length
5-12 mm
Knife value error
Precision lead screw 0.01
Crimping capacity
2T
Detecting device
Rotation in place detection, missing terminal detection
Auxiliary device
Rotating peeling
Machine Dimensions
552*530*491mm
Machine Weight
55kg
Application for Pre insulated terminal machine EW-5580
