Wire Processing and Electrical Installation Equipment

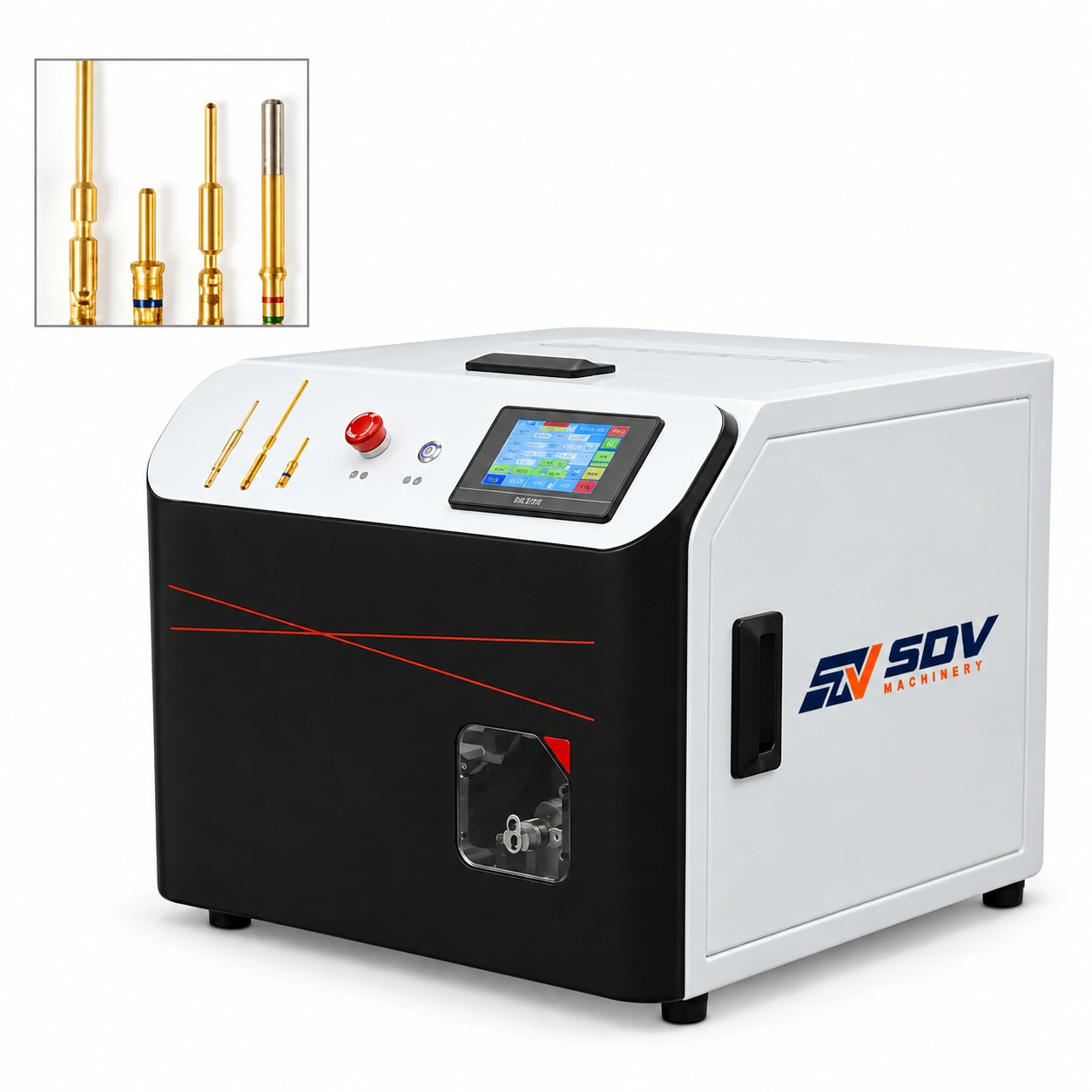

Loose Pin Aviation terminal Crimping Machine(0.5-4.0 mm²) EW-5595

Price of the selected optionon request
Delivery options

Description

Feature

● It adopts vibrating plate feeding and fully intelligent operating system, which is convenient for debugging, simple for operation and easy for setting.

● Adopt LCD display screen, the interface is simple and clear, and can be switched between Chinese and English.

Specifications

Model
EW-5595
Applicable wire Diameter
0.5 mm²-4.0 mm²
Applicable wire Material
BVR
Processing capacity
1400-1500PCS/H
Stripping range
Shortest sheath stripping Length 35mm
Stripping length
1.0mm-18.0mm
Tangent error
0.1mm-0.15mm
Position error
0.1mm-0.15mm
Power
1000W
Power Supply
Single Phase 200V~240V 50/60Hz
Air Source
0.4~0.6mpa
Body size
L500mm*W500mm*H430mm
Total weight
50KG
Pedal Start
N/A
Application for Loose Pin Aviation terminal Crimping Machine(0.5-4.0 mm²) EW-5595
