Wire Processing and Electrical Installation Equipment

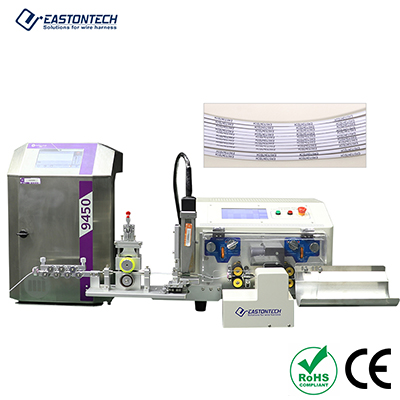

Wire Stripping & Twisting Machine(O.1 - 4 mm²) With Ink-jet Printer EW-3015+P

Price of the selected optionon request
Delivery options

Description

Feature

● The EW-3015 is exclusively designed wire stripping and twisting machine.

● Poweful stepper motors, mute subdivision drivers, integrated control board. High-speed, precise, long service life, no noise pollution.

● Unique twist device guarantees perfect twisting resutl, twisting speed & length are all programmble easily via touch screen.

● Instead of traditional pulse adjustment, the EW-3015 integrates innovative way to set cutter diameter, fast and accurate.

● Automatic length correction saves much time and ensures cutting accuracy.

Specifications

Model
EW-3015+P
Function
Wire cutting, double-end stripping, middle stripping
Wire range
0.1-4mm²(single);0.1-2mm²(double wire)
Twisting range
0.1-1 mm²
Cutting length
0.1mm-99999.9mm
Stripping length
Stripping head:0.1-250mm stripping tail: 0.1-70mm
Stripping accuracy
Silent hybrid stepper motor 0.01mm
Intermediate strip
16 (can be customized)
Capacity
3000-8000 / h
Blade material
Imported tungsten steel / high speed steel
Power
AC110V/220V 50/60HZ
Size
470mm * 700mm * 350mm
Weight
40kg
Remark function
Automatic entry / exit, timing start, jog adjustment
Application for Wire Stripping & Twisting Machine(O.1 - 4 mm²) With Ink-jet Printer EW-3015+P
