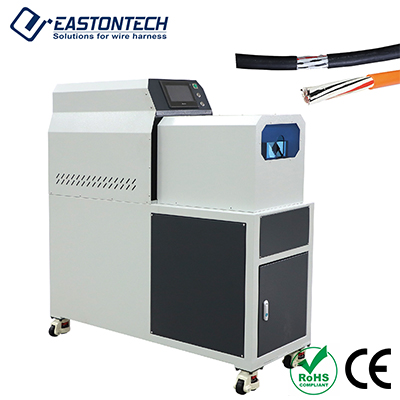

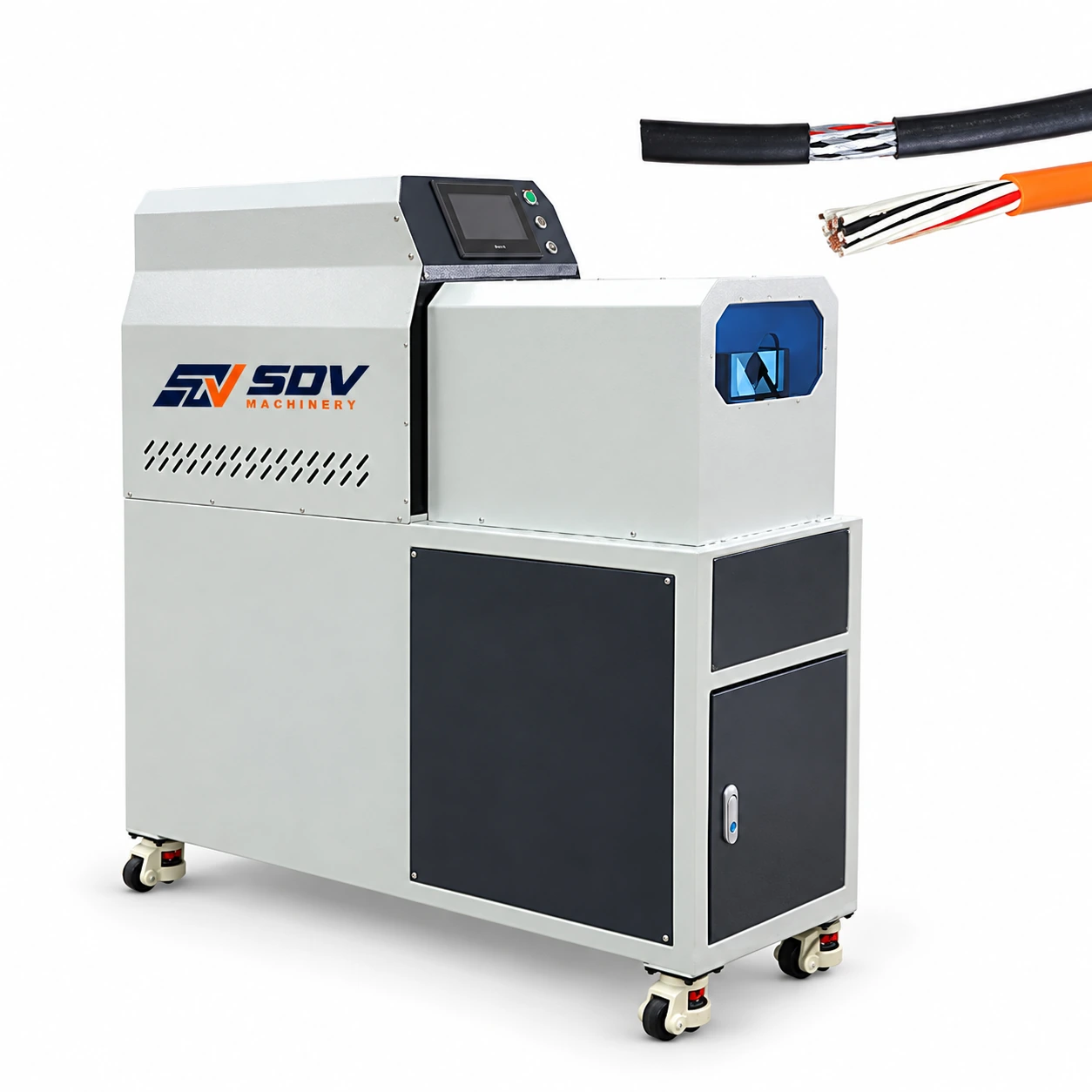

Coaxial Wire Stripping Machine (OD 10-50mm) EW-0685

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is primarily designed for multi-layer stripping of larger, dry, or large communication cables.

● It features a touchscreen interface, allowing for digital input of stripping depth, speed, distance, and rotation time.

● It utilizes a highly advanced rotating tool holder, improving processing accuracy and speed.

● It utilizes a specialized axis positioning device and rotating tool mechanism, capable of stripping up to nine layers, allowing it to process wires of various sizes and jackets without the need for blade replacement.

● It utilizes a wire clamp, automatic centering, motor drive, and programmable clamping force control.

Specifications

Model
EW-0685
Applicable Wire
Large coaxial cables, automotive cables
Power Supply
AC220V/110V 50/60Hz
Power
300W
Stripping Length
0.1mm-200mm
Stripping Length Setting Unit
0.01mm
Wire Diameter Range
10-50mm diameter
Cutting Depth Setting Unit
0.01mm
Stripping Method
Rotary blade
Maximum Number of Stripping Layers
9 layers
Production Efficiency
300-500 pcs/h
Tool Material
Imported tungsten steel
Drive Method
Motor/ball screw drive
Working Environment
-5-45 Dry degrees, vibration-free work surface
Dimensions
1340x450x1340mm
Air Source
0.4-0.6 MPa
Pedal Control
Yes
