Wire Processing and Electrical Installation Equipment

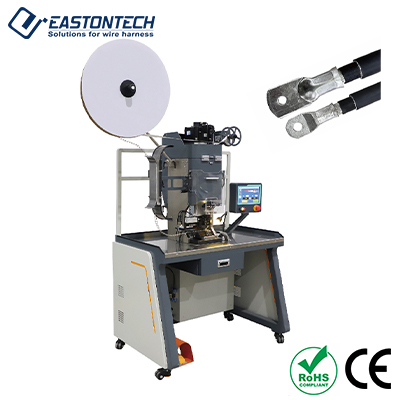

Servo Terminal Crimping Machine 8T EW-5600

Price of the selected optionon request
Delivery options

Description

Feature

● The servo crimping system ensures crimping accuracy while improving stability and consistency.

● Automatic digital adjustment of crimp height with an accuracy of 0.001.

● Integrated pneumatic feeding, cutting, and paper collection, among other functional modules.

● The embedded pressure management system provides real-time product monitoring to ensure quality.

● Configurable storage of production process parameters enables quick switching of small batch orders.

● The OES pressure management system can be installed to connect to the MES system.

Specifications

Model
EW-5600
Crimping Force
80KN
Stroke
30mm/40mm
Accuracy
0.01
Closed height
119.7/135.78mm
Wire range
0-16mm²
Power
3.0kw
Power supply
AC380V 50/60Hz
Air power
0.5-0.7Mpa
Machine Size
1200*800*1800mm
Application for Servo Terminal Crimping Machine 8T EW-5600
