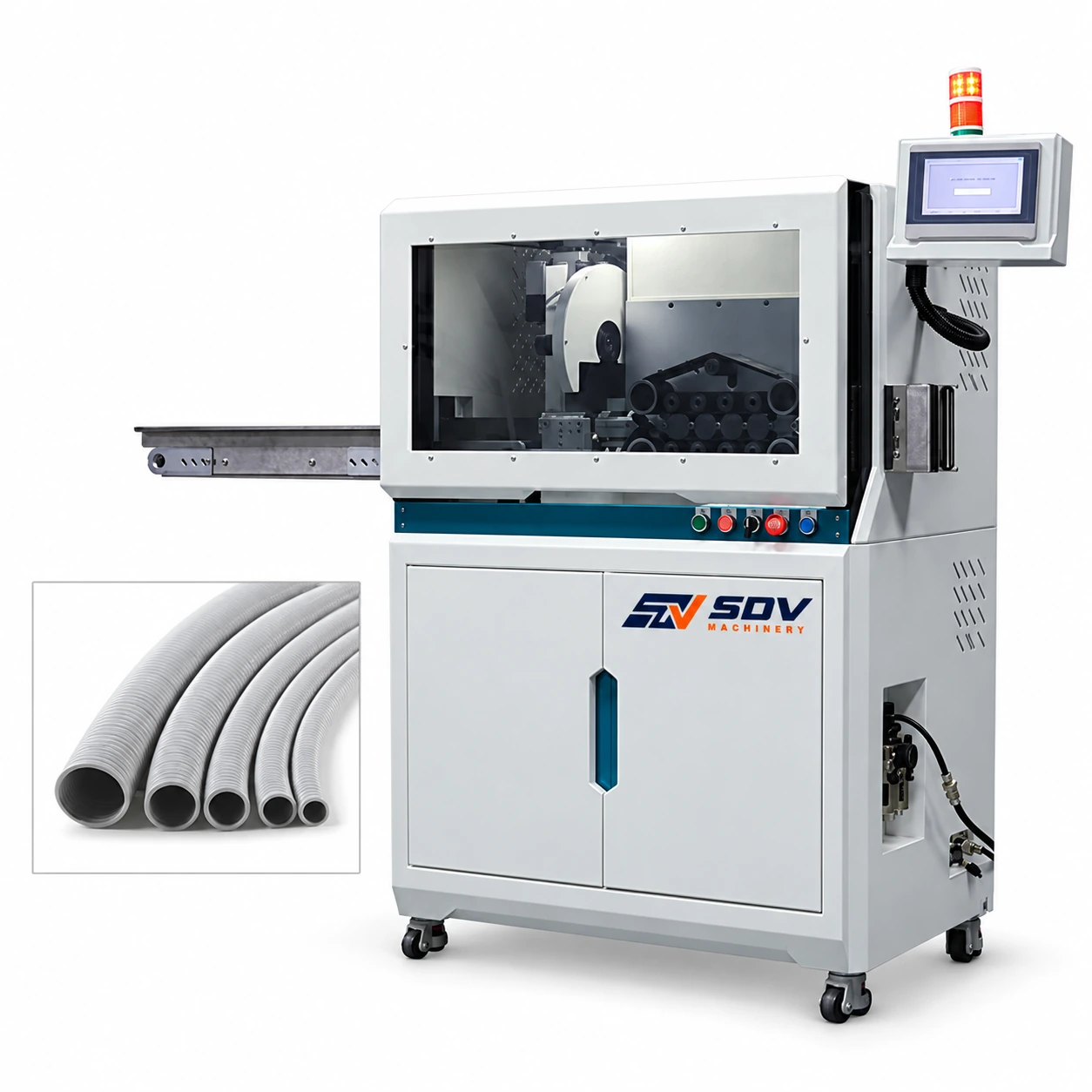

Fully Automatic Intelligent Pipe Cutting Machine (OD 1-50 mm) EW-12E-2

Description

Feature

● Next-Gen SmartFusion2 SoC FPGA Architecture: Driven by Microsemi’s industry-leading SoC FPGA chip pairing a 166 MHz ARM Cortex-M3 processor with FPGA hardware logic. This delivers ultra-fast real-time motion calculation, high-speed serial I/O communication, and unmatched system stability.

● Optional Thermal Heat Cut Module: Integrates hot-blade thermal cutting to instantly slice and heat-seal synthetic braided sleeves, woven conduits, and specialized plastic pipes—stopping end fraying and unraveling during assembly.

● Scratch & Crush-Free Servo Belt Drive: Driven by a high-precision servo motor paired with a synchronized belt conveyor. The wide contact surface grips thin-walled metal pipes, corrugated tubes, and smooth PVC without leaving indentations, crush marks, or surface scratches.

● Sub-Millimeter Cut Precision (< 0.5 mm): Supports continuous fixed-length cutting from 1 mm to 99,999.9 mm in fine 0.1 mm increments, maintaining strict length accuracy under 0.5 mm even during long batch runs.

● Wide Processing Range (1–50 mm OD): Handles a diverse mix of thin-walled metallic pipes, corrugated tubes, low-pressure hoses, and cooling conduits. Non-standard diameter configurations can be tailor-made upon request.

Application Range

● Automotive Wire Harness Protection: High-speed, fixed-length cutting of corrugated tubes, heat-shrink conduits, and engine cooling lines.

● Thin-Walled Metal Tubing Fabrication: Precision cutting of small-diameter aluminum, brass, copper, and thin stainless steel pipes without wall crushing.

● Braided & Woven Synthetic Sleeving: Heat-cutting and melt-sealing braid jackets, woven wire protection sleeves, and textile conduits to eliminate edge unraveling.

● Industrial Hose & Fluid Control: Clean cutting of PVC water pipes, low-pressure oil lines, and flexible pneumatic lines.
