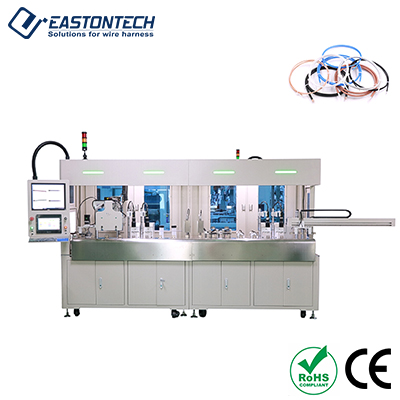

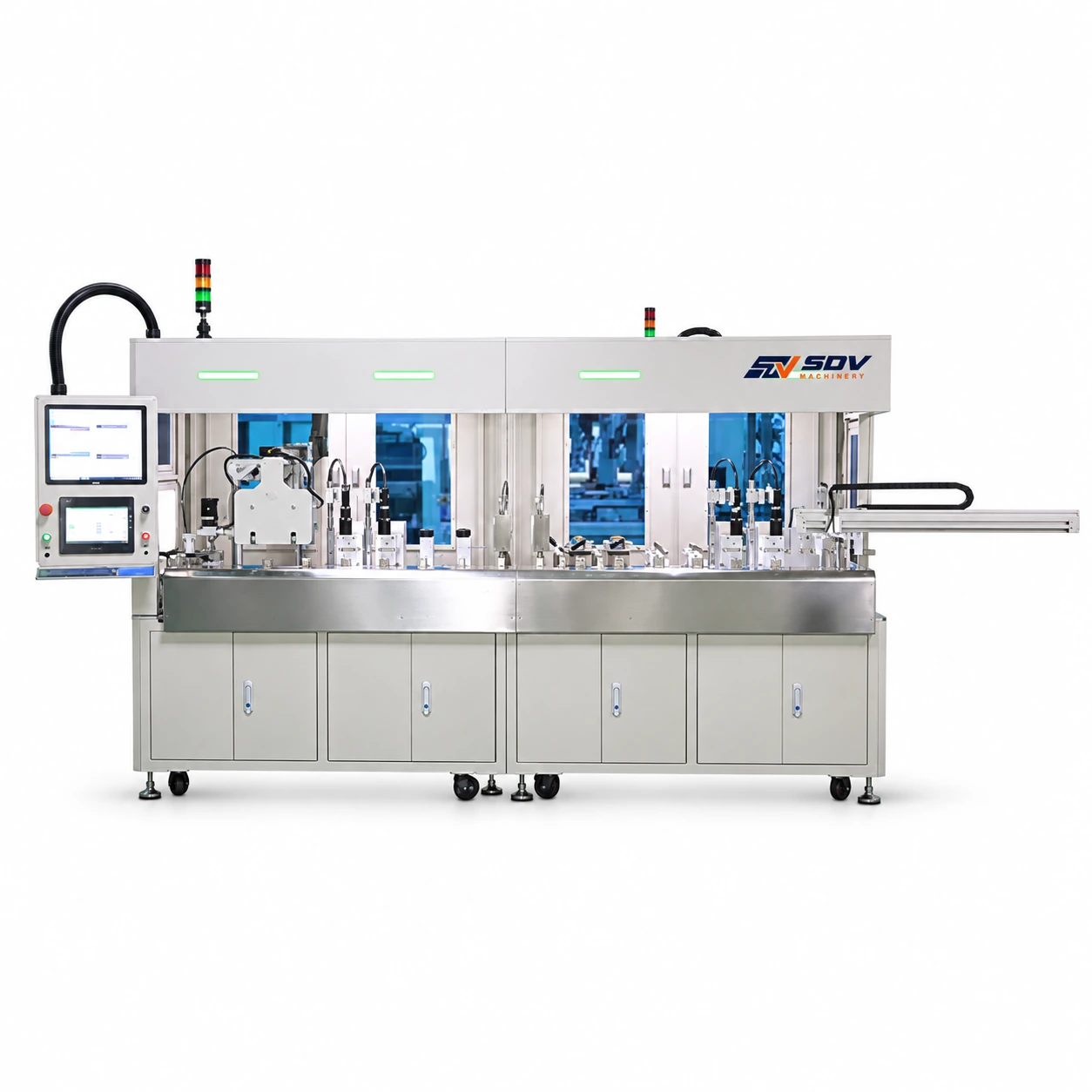

Coaxial cable double-end stripping tinning machine(1.78-3.5mm OD) EW-9515

Price of the selected optionon request
Delivery options

Description

Feature

● Model EW-9515 is a rare type of fully automatic coaxial cable machine in the market that features strip and tin-impregnation functions.

● It is suitable for 1.78-3.5mm OD wires.

● The stripping length is 0-25mm and max.layer is 6 layers.

● Two workstations operate simultaneously for tinning to enhance work efficiency.

● The fully automatic production line not only saves labor costs but also enhances production efficiency.

● Equipping with CCD improves the qualification rate of the finished products.

Specifications

Model
EW-9515
Wire outer diameter
1.78-3.5mm
Cut depth increments
0.01mm
Cutting length
Single side:120-1000m
Double side
400-2000mm
Max. stripping layer
6 Layers
Stripping length
0-25mm
Stripping accuracy
±0.2mm
Cutting accuracy
±0.2%*L
Power supply
AC220V 50/60HZ
Power
2KW
Productivity
600-850pcs/h
Dimension
300*85*200cm
Weight
1T
Pedal
N/A
Air pressure
0.5-0.7Mpa
