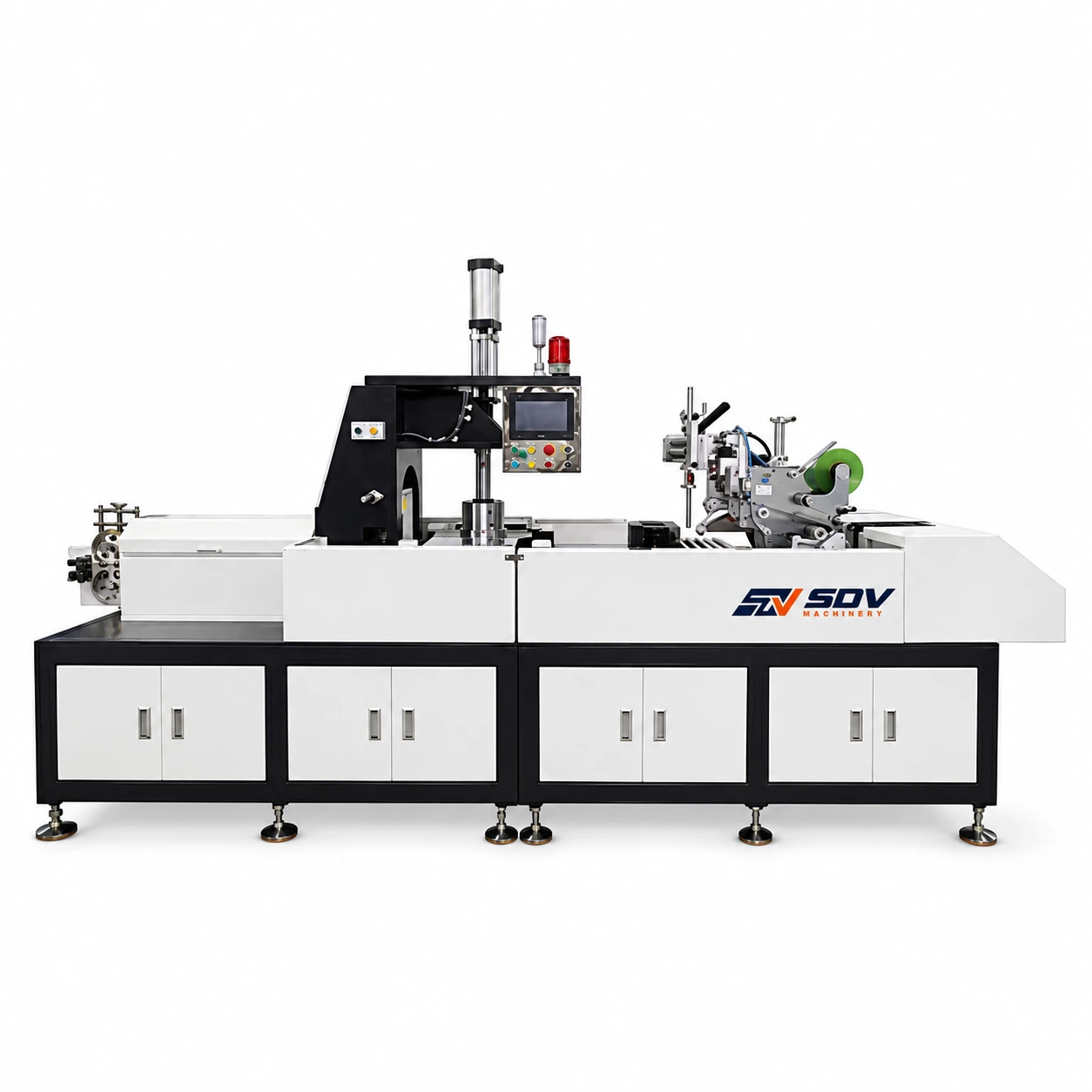

Wire Coiling and Film Wrapping Machine EW-2380

Price of the selected optionon request
Delivery options

Description

Feature

● Integrated coiling and film sealing design, featuring high efficiency and labor savings.

● Equipped with a touch screen for easier operation; controlled automatically by PLC with high working stability, capable of storing specifications for various wire coils.

● Can be fed by a wire feeding machine or directly connected to an extruder.

● Suitable for house wires (such as BV, BVR, RVV), UL electronic wires, sheathed wires, and other wire types.

Specifications

Model
EW-2380
Applicable wire range
φ2.7-φ10mm
Applicable wire
Power cord, electronic wire, cable
Wire feeding machine
Suitable for 800-1250mm
Air pressure
0.55-0.7MPa(Pure compressed air, no water, no oil)
Coiling Head Dimension
180mm (can be customized according to product specifications)
Label size
45mm-70mm wide 70mm-90mm long
Envelope width
40mm-60mm
Film thickness
0.04mm-0.07mm
Coating material
PVC/PE
Coil weight
Less than 30KG
Film height
80-150mm
Power supply
220/110V/50/60HZ
Winding speed
800 RPM Max
Label material
Non-breathable plastic paper
External dimensions
4260*1753*2242mm (length, width and height)
Pedal
N/A
Application for Wire Coiling and Film Wrapping Machine EW-2380
