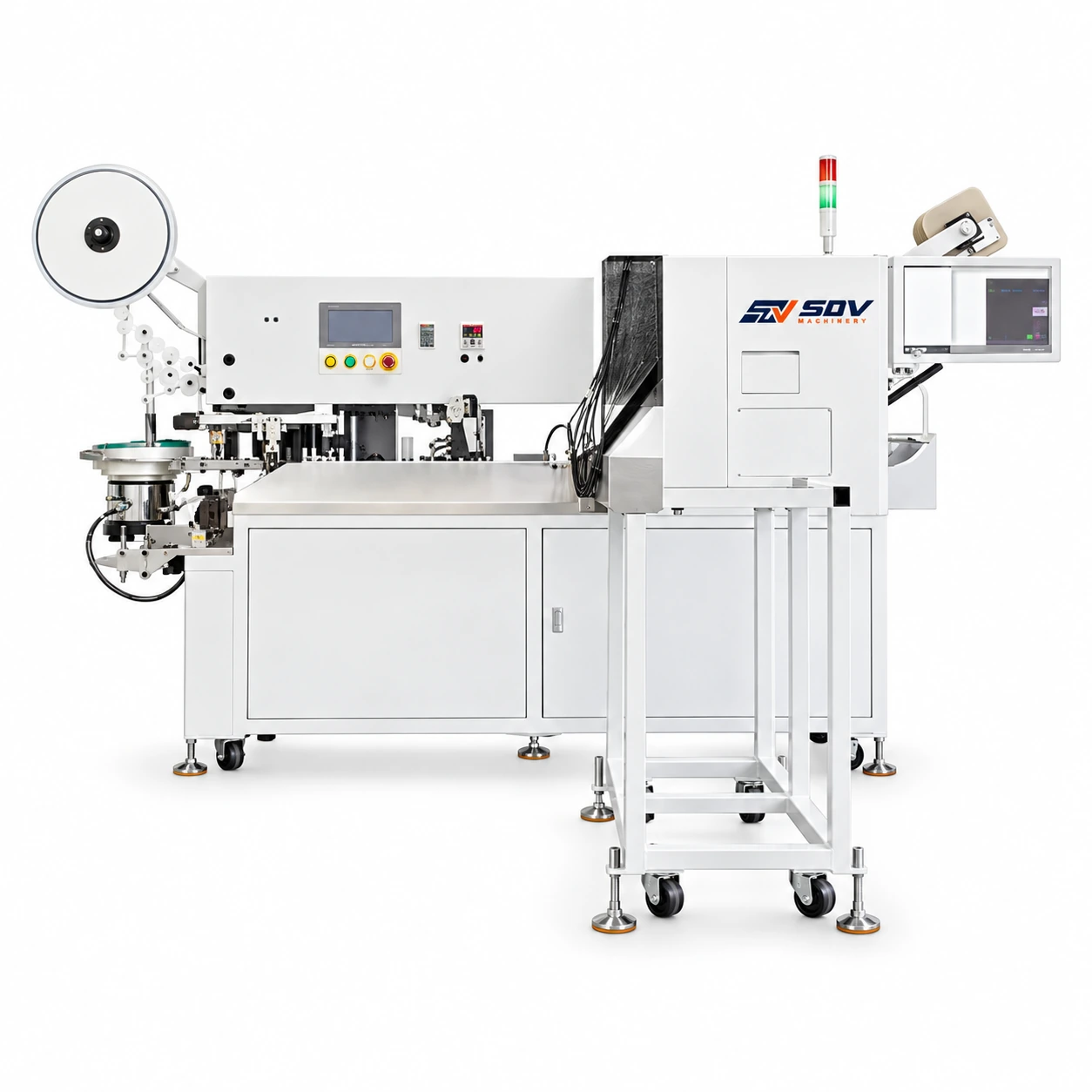

One End Housing Insert and Another End Crimp 2 Different Terminal Machine EW-9545

Price of the selected optionon request
Delivery options

Description

Feature

● Two types of wires can be processed at the same time.

● Side A: cutting, stripping, terminal crimping (two types of terminals at one end), inserting housing connector.

● Side B: cutting, stripping, twisting and tinning at the other end.

Specifications

Model
EW-9545
Voltage
220V/50Hz; 110V/60Hz
Power
3.6KW
Wire size
AWG16-AWG28
Max. efficiency
1200PIN/H
Air pressure
4 - 6kgf (0.4-0.6Mpa)
Crimping capacity
1.5KN
Cutting length
40-3000mm (customizable)
Stripping length
side A: 0.1-10mm, side B: 0.1-6mm
Max. pin No
single row 16 holes, max.3 rows
Max. wire colors
20 colors
Connector size
Min.5x6x3, Max. 40x25x25mm (customizable)
Test functions
wire lack/knotted, terminal lack, stripping abnormal,
Additional information
CFM, insertion pull force, connector lack, NG rate
Optional devices
cable prefeeder, transfer belt, CFM, CCD tester
NG rate setting function
alarm stop production: wire lack/knotted,terminal lack,
Additional information 2
connector lack, NG rate exceeds set value
Additional information 3
Alarm to pick out and
continue production
abnormal stripping, abnormal crimping force,
Additional information 4
abnormal connector insertion tension, NG rate does not exceed the set value
Dimensions
260x120x158cm
Packing size
271x95x186cm;326x63x134cm; 262x146x112cm
