Wire Processing and Electrical Installation Equipment

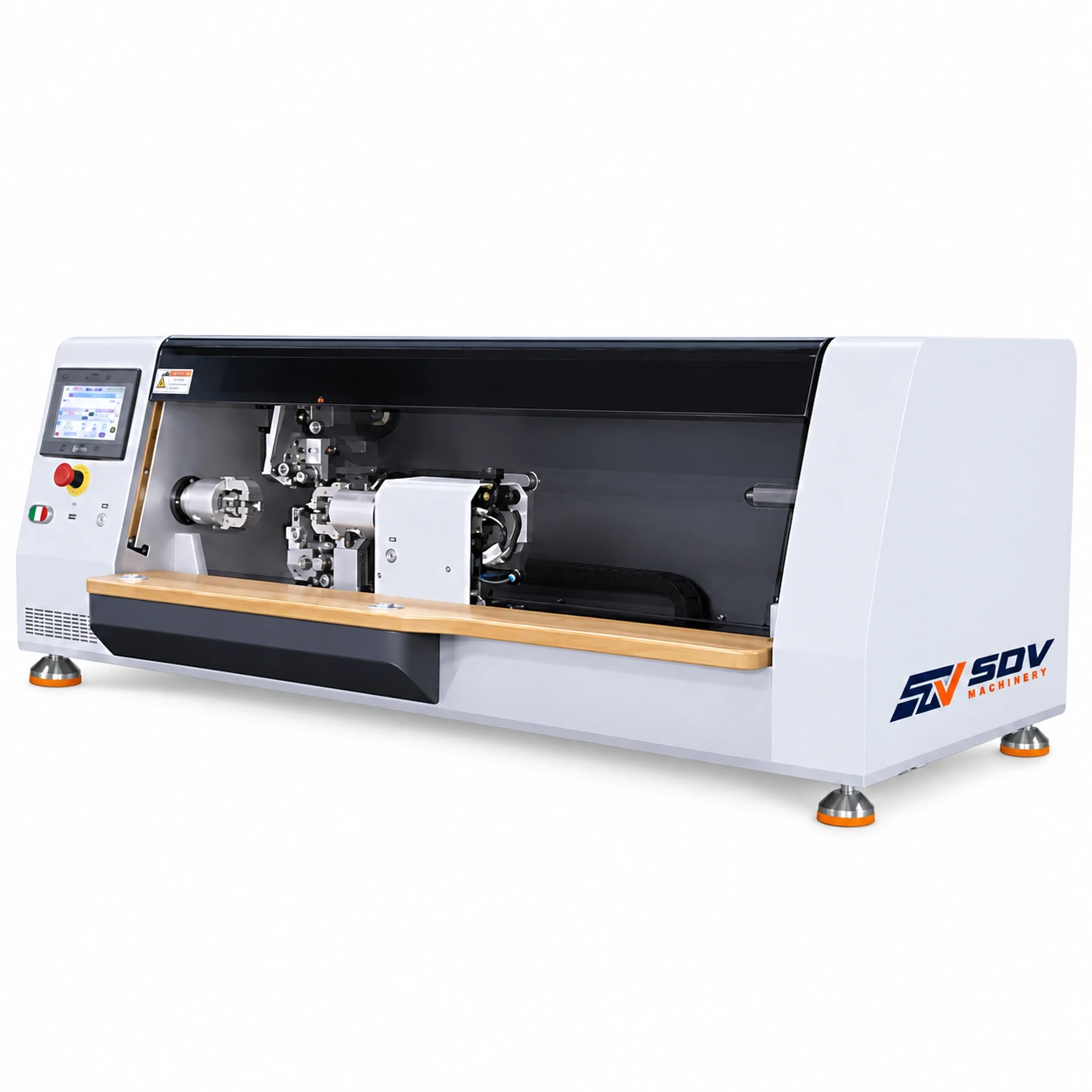

Fully Automatic Wire Tape Wrapping Machine(1mm-20mmOD) EW-1875

Price of the selected optionon request
Delivery options

Description

Feature

● Model EW-1875 is new automatic wire tape wrapping machine with automatic tape cutting wrapping function.

● It is suitable for 10mm OD wires and 9/19mm width PVC or fabric-based tape.

● The special design ensures that the tape can be wound up to 10mm on the left end and 30mm on the right end of the sheath.

● The wire should not be distorted during the wrapping process.

● The tape cutting effect is excellent, especially for the fabric-based adhesive tape.

● The fixture replacement is very convenient. Only needs to do is to remove and install four screws.

Specifications

Model
EW-1875
Applicable tape
9/19mm width, PVC or fabric-based tape
Wire diameter
≤10mm
Max. Outer Diameter of Tape
≤180mm
Inner Diameter of Tape
32-76mm
Taping length
<600mm
Taping speed
≤800 RPM
Tape material
PVC, felt, cloth tape
Dimension
755*620*480mm
Power
110V/220V(AC)(±10%)
Air supply
0.4-0.6Mpa.
Foot pedal
N/A
Application for Fully Automatic Wire Tape Wrapping Machine(1mm-20mmOD) EW-1875
