Feature

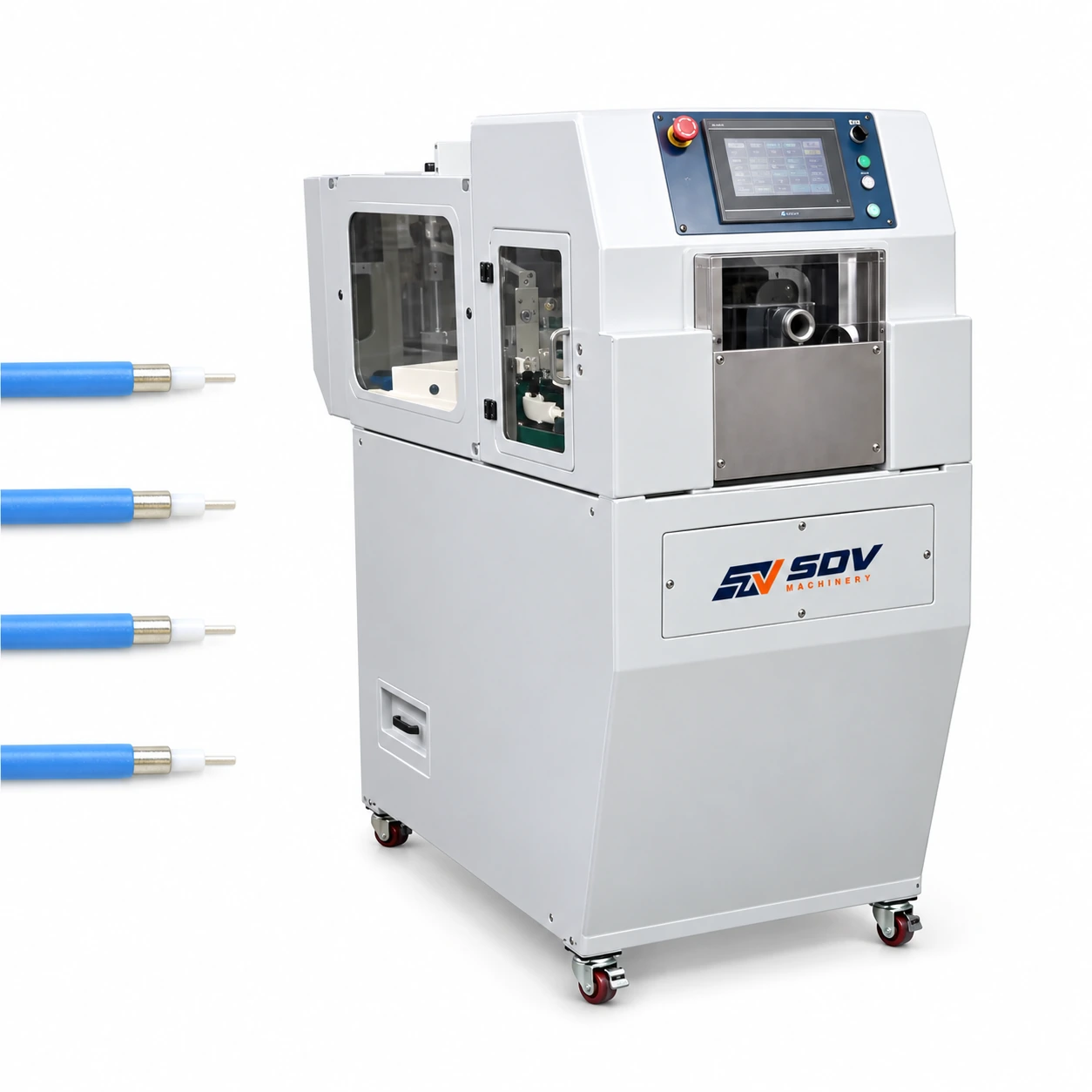

● This rotary coaxial cable stripping machine is professionally designed for multi-layer shielded wire processing, capable of removing outer sheath, aluminum foil and braided shielding in one working cycle.
● Standard processing range covers outer diameter from 5mm to 26mm, with maximum single-side stripping length up to 500mm and support for up to 9 sequential stripping layers.
● Fine cutting adjustment with 0.01mm diameter increment ensures precise cutting without scratching inner core conductors during multi-layer stripping.
● Equipped with high-power 2000W servo driving system and intuitive color touch screen for easy parameter setup and program storage.
● Dual start modes available: foot pedal control and manual button operation to adapt different workshop production habits.
● Hourly production output ranges from 300 to 500 pieces based on cable structure, layer quantity and stripping specifications.
● No compressed air required for operation, effectively saving factory pneumatic pipeline construction cost and workshop layout trouble.
● Overall dimension 1250*670*1400mm with net weight 225KG for stable long-time continuous industrial production.
● CE & RoHS certified to meet global manufacturing safety standards for automotive, new energy and aerospace factories.
Application Range
● New energy vehicle high-voltage wiring harness multi-layer coaxial cable outer sheath and shielding stripping processing.
● Automotive and motorcycle internal shielded control wire, sensor coaxial cable pre-production stripping work.
● Aerospace industry multi-layer insulated shield wire and high-reliability special cable peeling manufacturing.
● RF coaxial, communication shielded cable and industrial equipment multi-core composite wire stripping production.
● Pre-processing for subsequent terminal crimping and connector assembly to reduce manual workload and improve finished yield.
