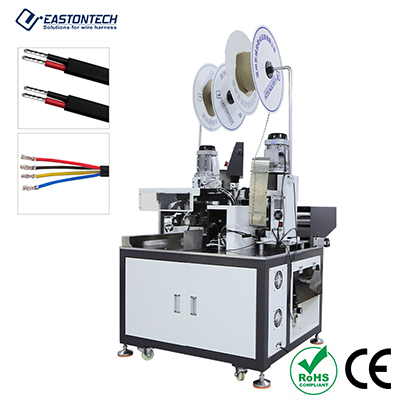

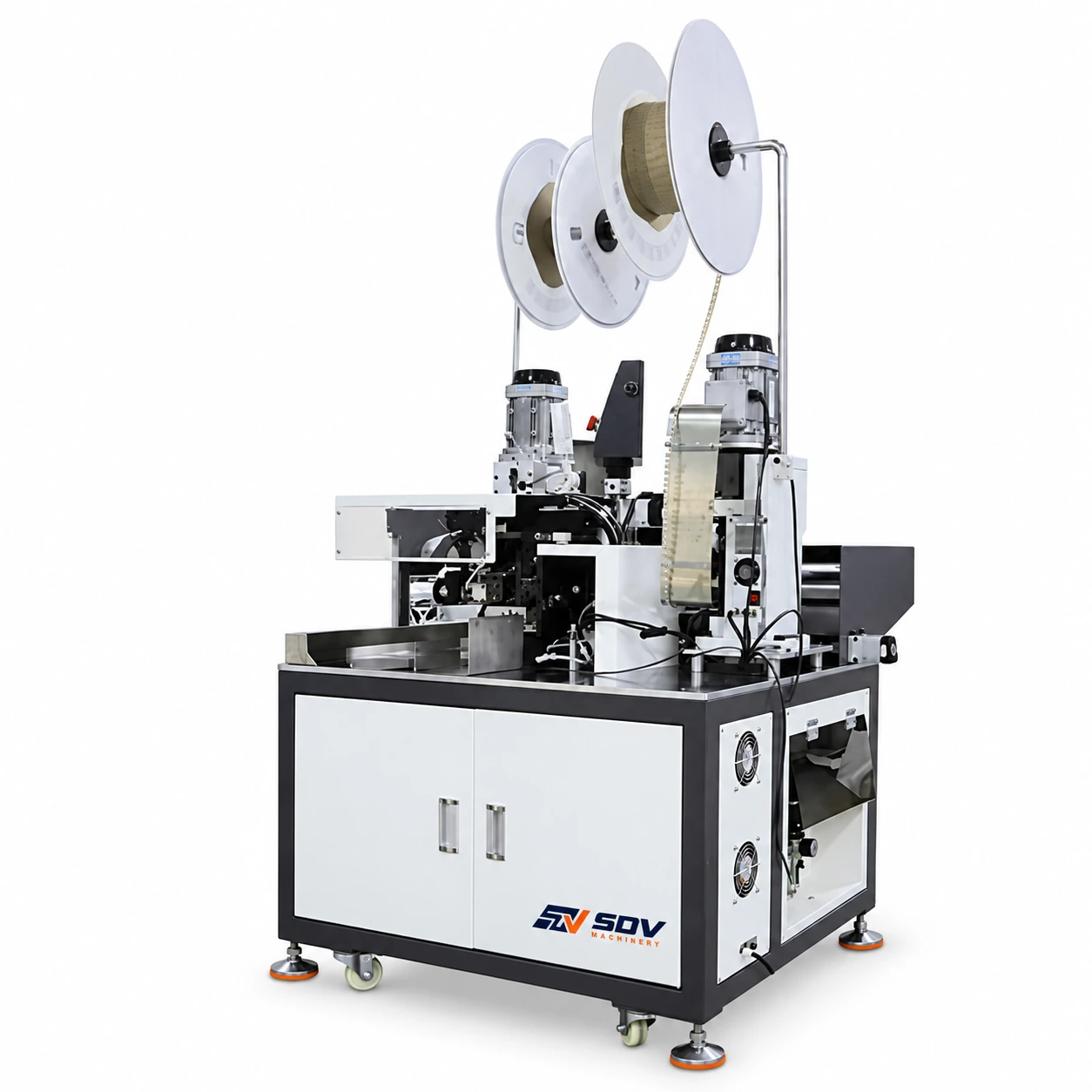

Fully Automatic Sheathed Wire Double-end Crimping Terminal Single-Tinning Machine EW-9550

Price of the selected optionon request
Delivery options

Description

Feature

● Rear end wire fixed length mode:It solves the long-standing problem of soft wire feeding being difficult and unstable, and can accurately cut and strip wires, and store wires neatly.

● Applicator Mold:Quick and easy for applicator change. Precision wire cutting stripping and crimping Full servo screw, high precision, improve efficiency, stable performance.

● Color LCD touch screen operation interface, the parameters are intuitive and easy to understand.

Specifications

Model
EW-9550
Main functions
Wire cutting,double-end stripping,
Additional information
double-end termination, single-end tinning
Front peeling length
18mm-80mm
Additional information 2
(taking 2 cores as an example)
Length of front stripped
1mm-15mm
Rear peeling length
0mm-100mm
Additional information 3
(end size 28 or above (2 cores as an example)
Length of stripped
1mm-15mm
Cutting line length
80mm-1000mm
Additional information 4
(extended length can be customized)
Processable wire range
OD:2.0mm-6.5mm
air pressure
0.5-0.7Mpa
Air pressure monitoring
Air pressure detection alarm
Power
220V/110V/50/60HZ
Motor
9 sets of Leadshine servo motors
control system
Independently developed control board
Weight
550Kg
Pneumatic components
AirTac 14 sets
