Wire Processing and Electrical Installation Equipment

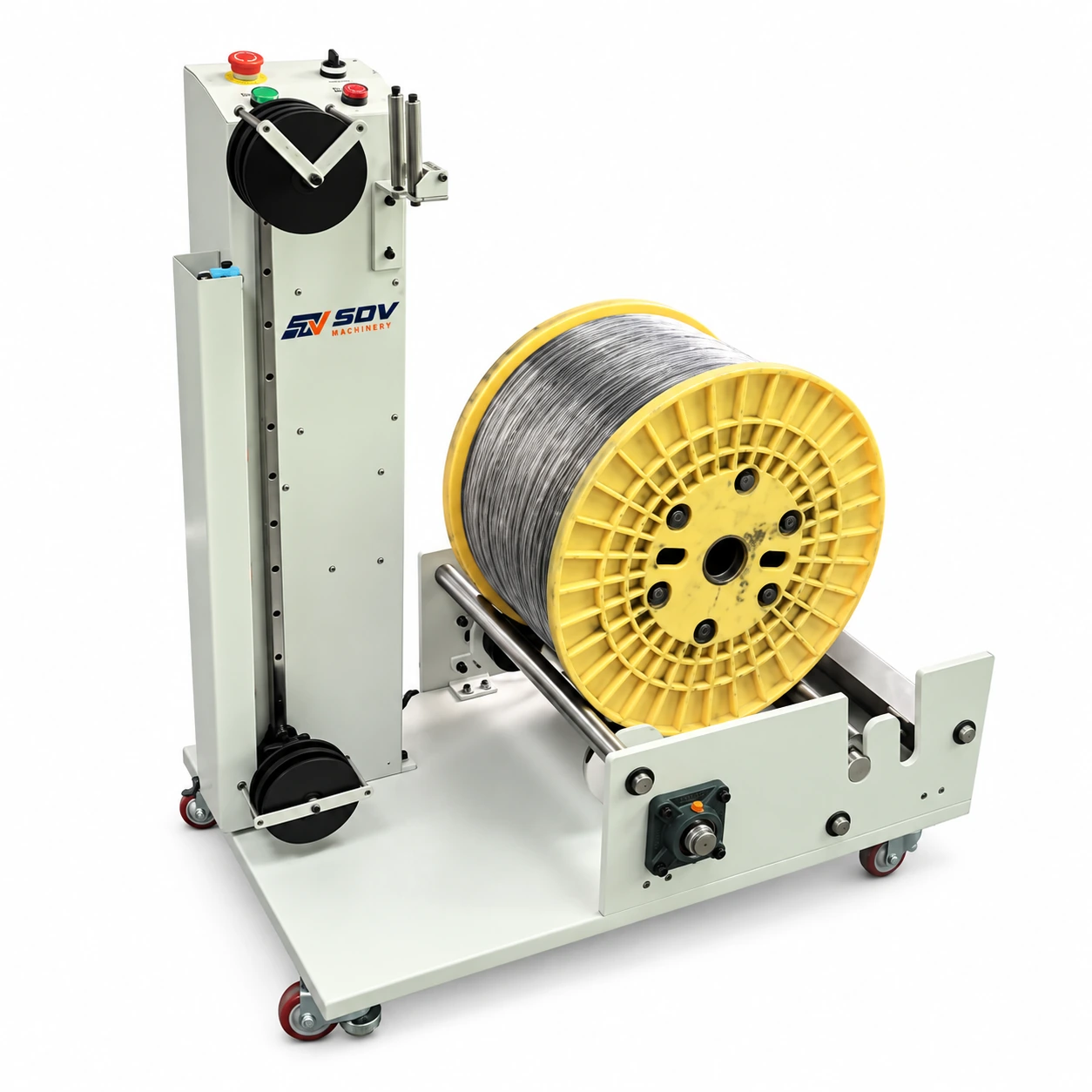

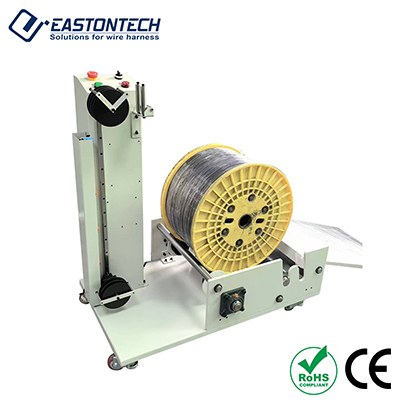

wire feeding machine(Max. 100KG loading weight) EW-14F-1

Price of the selected optionon request
Delivery options

Description

Feature

● Wire feeding speed: 2 meters per second.

● Automatic sensing with braking, smooth guide rail movement, low resistance, minimal noise.

● Adjustable wire guide wheels for different wire diameters.

● Approximately 3.5m belt with stepless speed control at 2 meters per second, no manual adjustment required.

Specifications

Model
EW-14F-1
Wire Size
16mm
Cable Drum OD
630mm
Max. Wire Coil Width
480mm
Max. Loading Weight
100KGS
Power Supply
AC110/220V/50/60HZ
Machine N.W.
190KGS
Machine Measurement
960*810*1050mm
Application for wire feeding machine(Max. 100KG loading weight) EW-14F-1
