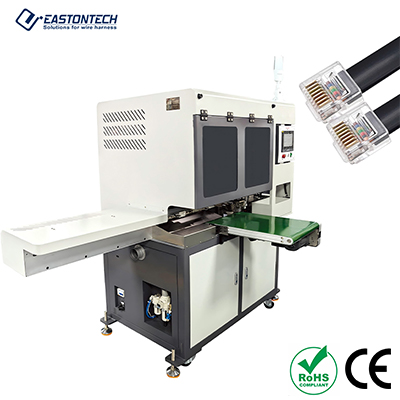

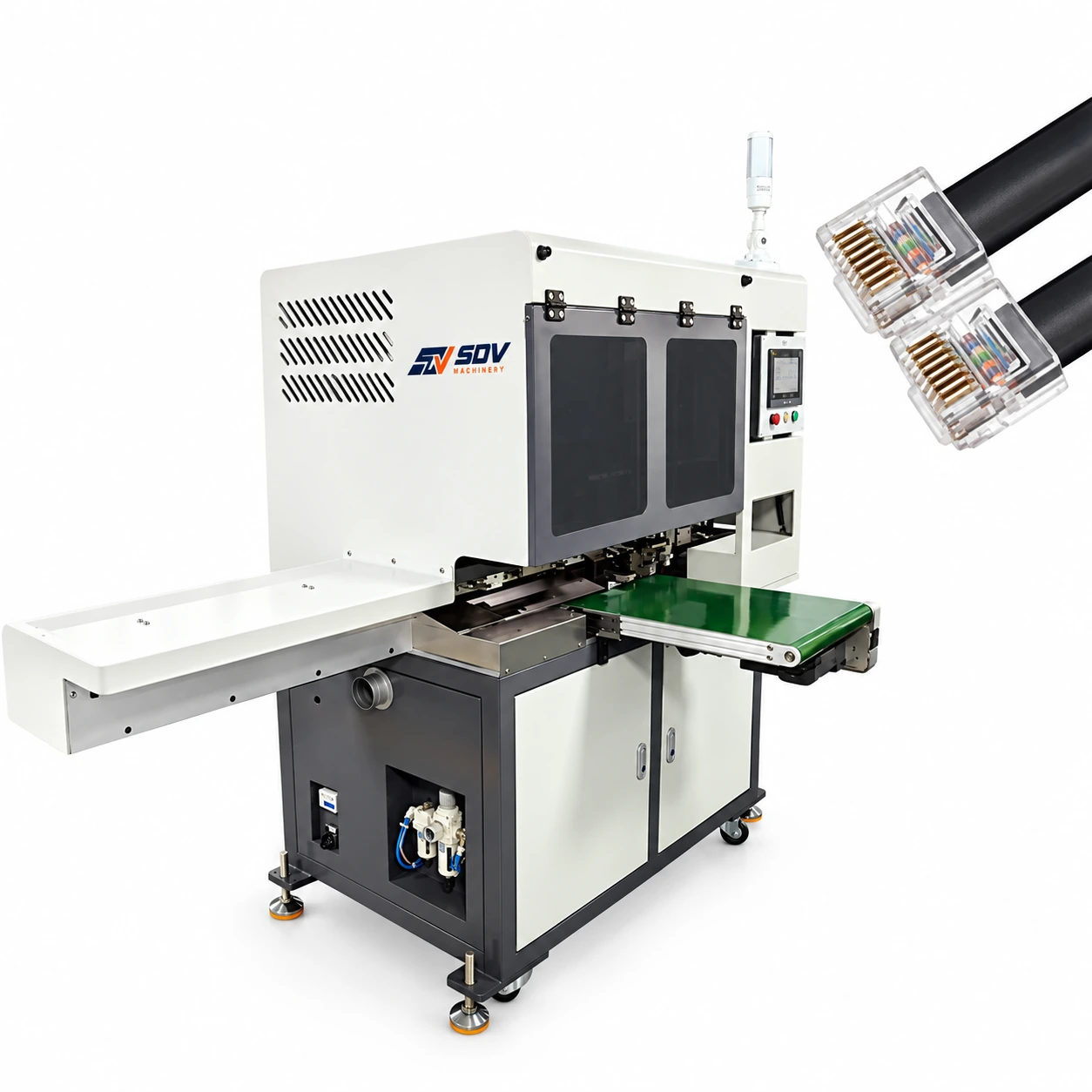

Fully Automatic Crystal Head Crimping Machine EW-9585

Price of the selected optionon request
Delivery options

Description

Feature

● The seven-inch touchscreen makes operation intuitive and convenient.

● RJ12/45 flat wire (customizable).

● Optional conveyor belt.

● Optical inspection technology ensures the quality of the final crimped RJ12/45 connector.

Specifications

Model
EW-9585
Processing range
2-10 core flat wire
Maximum machining length
1000mm
Maximum soldering length
11mm
Standard peeling length
Front end: 8mm; Back end: 11mm
crimping force
2T
Production capacity
1900 pcs/hour (based on 100mm)
Gas supply
0.6-0.7MPA
Equipment weight
300kg
Equipment size
2050*1030*1800mm
Application for Fully Automatic Crystal Head Crimping Machine EW-9585
