Wire Processing and Electrical Installation Equipment

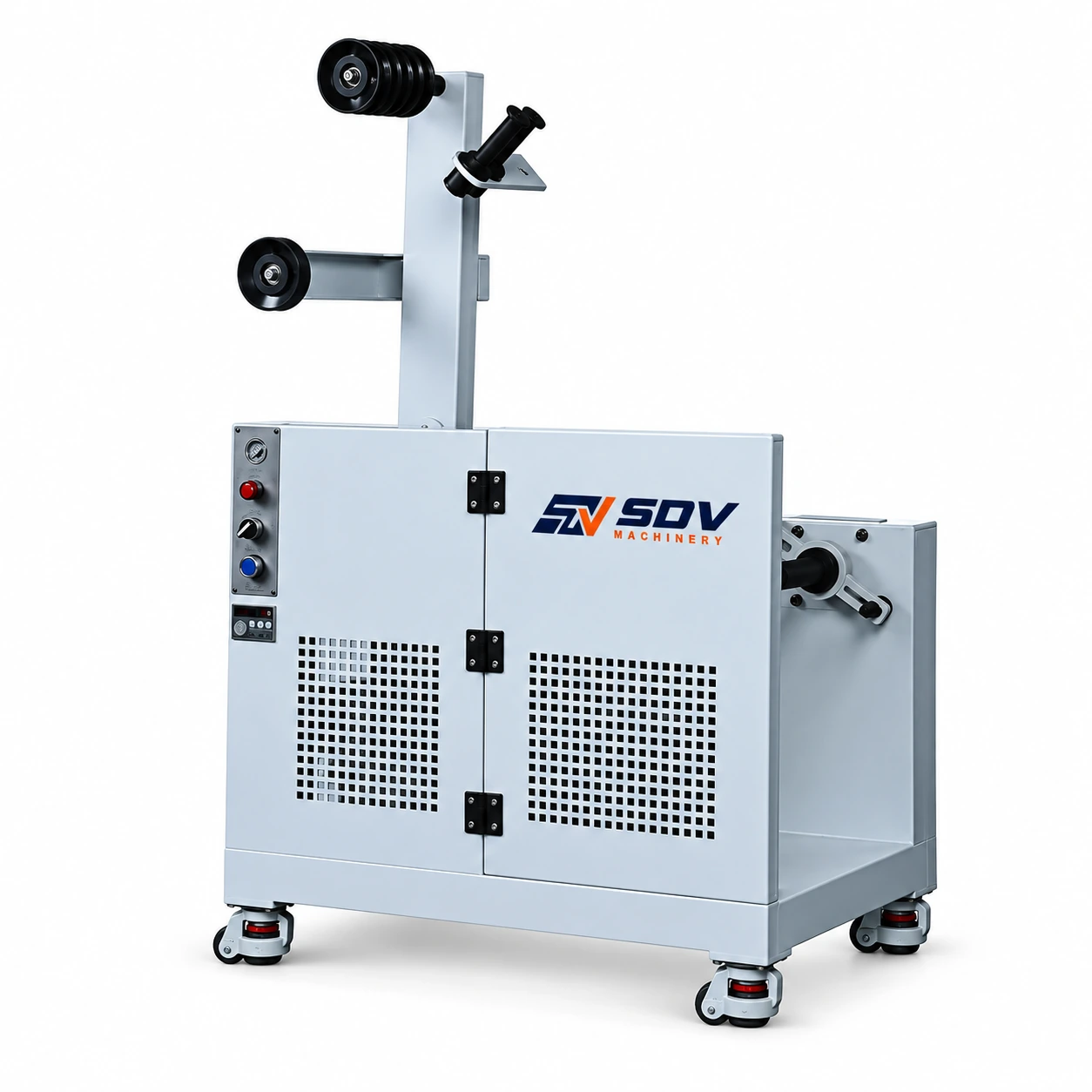

Wire Feeding Machine (60KG) EW-14E

Price of the selected optionon request
Delivery options

Description

Feature

● This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.

● Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful.

● Maximum feeding speed is 4 m/s, and maximum wire diameter is 18mm.

● Cable spool max diameter: 600mm.

● Max Load weight: 60KGS.

Specifications

Model
EW-14E
Drive mode
Three-phase motor + reducer
Rated speed
1450
Max. Speed
2200
Cable drum OD
100-400mm
Cable drum ID
38-45mm
Cable drum height
380mm
Max. Loading weight
60kg
Motor power
0.75KW
Max. Wire OD
18mm
Machine dimension
800*740*1278mm
Application for Wire Feeding Machine (60KG) EW-14E
