Wire Processing and Electrical Installation Equipment

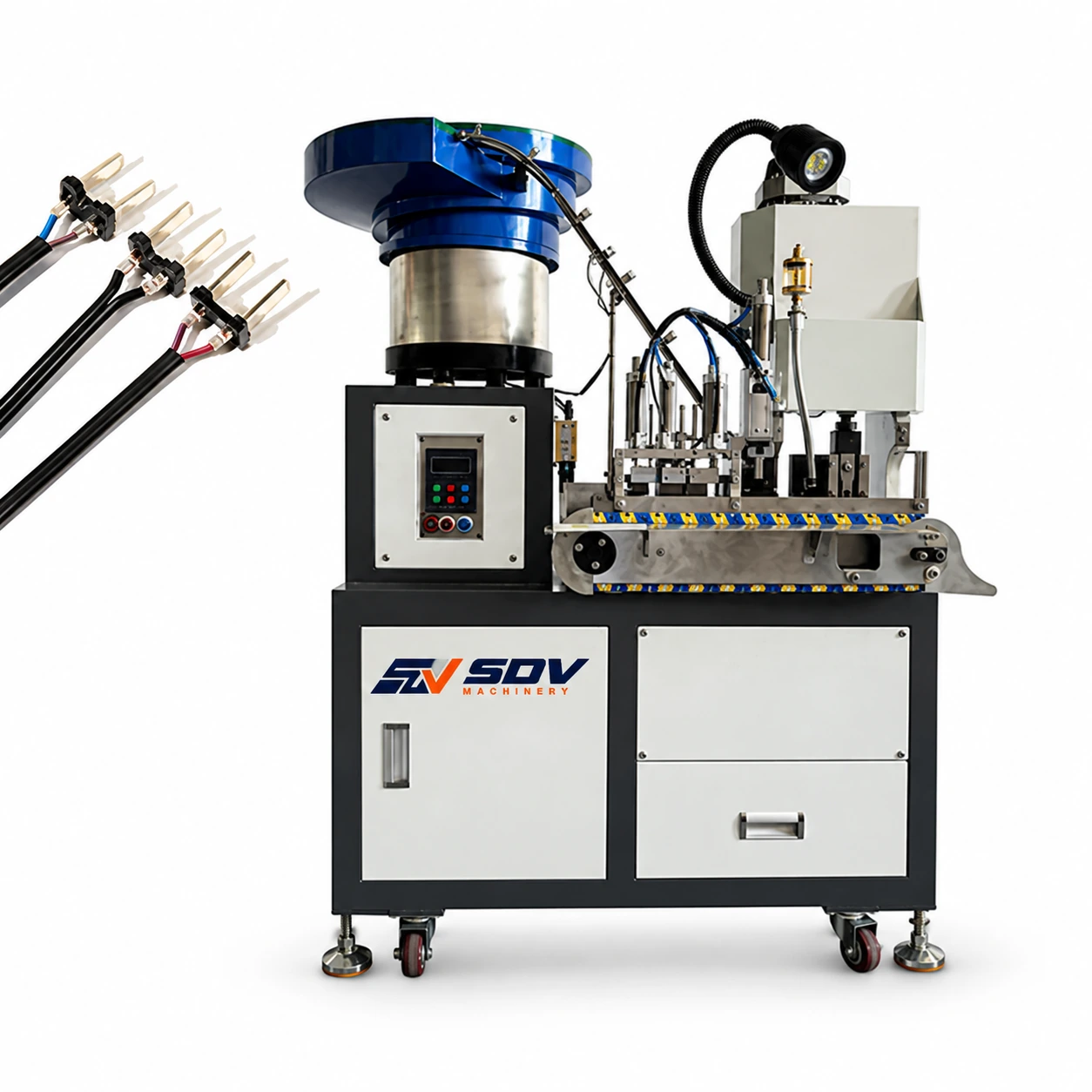

2 Pins American Plug Vibrating Feeder Crimping Machine EW-9830

Price of the selected optionon request
Delivery options

Description

Feature

● Applicable Wires: H03VVH2-F, H05VVH2-F.

● Integrates stripping, automatic feeding, and crimping, completed in one cycle.

● Saves 3-4 workers compared to the original manual operation.

Specifications

Model
EW-9830
Outer jacket stripping length
Head 0.1-250mm Tail: 0.1-70mm
Inner core stripping length
Head 0.1-15mm Tail: 0.1-15mm
Number of middle stripping segments
Customizable
Remarks function
Automatic cable input/output,timed star,point adjustment
Blade material
Imported tungsten steel/high speed steel
Stripping accuracy
Silent hybrid stepping motor0.01mm
Productivity
200mm-1000mm(850-1100PCS/H)
Equipment power
1500W
Power supply voltage
AC220V 50/60HZ
Foot pedal
YES
Air supply
0.5-0.7 Mpa.
Application for 2 Pins American Plug Vibrating Feeder Crimping Machine EW-9830
