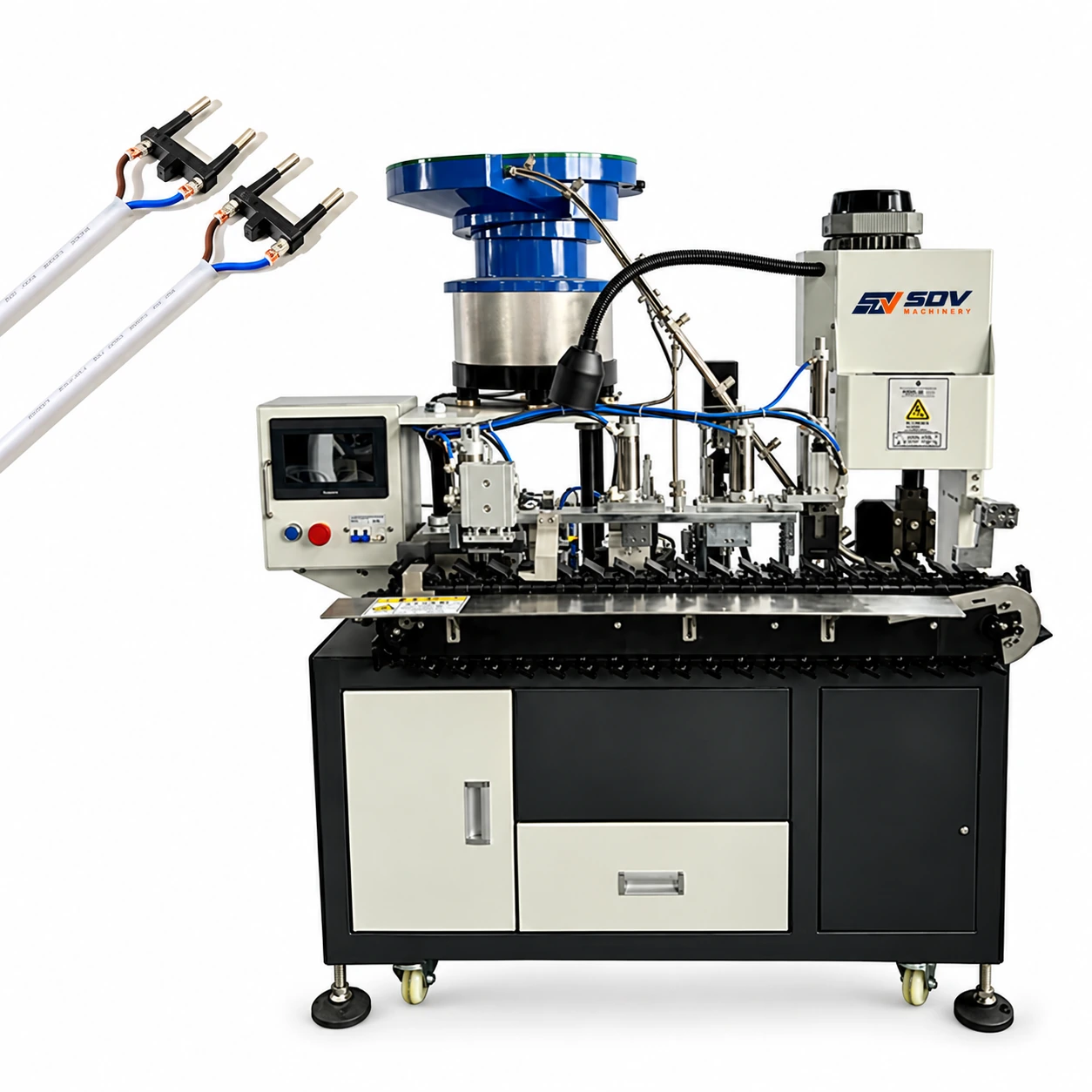

Two Pins Europe Plug Crimping Machine EW-9835

Price of the selected optionon request
Delivery options

Description

Feature

● Applicable Wires: H03VVH2-F, H05VVH2-F.

● Integrates stripping, automatic feeding, and crimping, completed in one cycle.

● Saves 3-4 workers compared to the original manual operation.

Specifications

Model
EW-9835
Outer jacket stripping length
Head 0.1-250mm Tail: 0.1-70mm
Inner core stripping length
Head 0.1-15mm Tail: 0.1-15mm
Number of middle stripping segments
Customizable
Remarks function
Automatic cable input/output,timed star,point adjustment
Blade material
Imported tungsten steel/high speed steel
Stripping accuracy
Silent hybrid stepping motor0.01mm
Productivity
1500-2000PCS
Equipment power
1500W
Crimping force
4T
Power supply voltage
AC220V 50/60HZ
Machine size
1250*800*1550cm
Weight
360KGS
Foot pedal
YES
Air supply
0.5-0.7 Mpa.
Application for Two Pins Europe Plug Crimping Machine EW-9835
