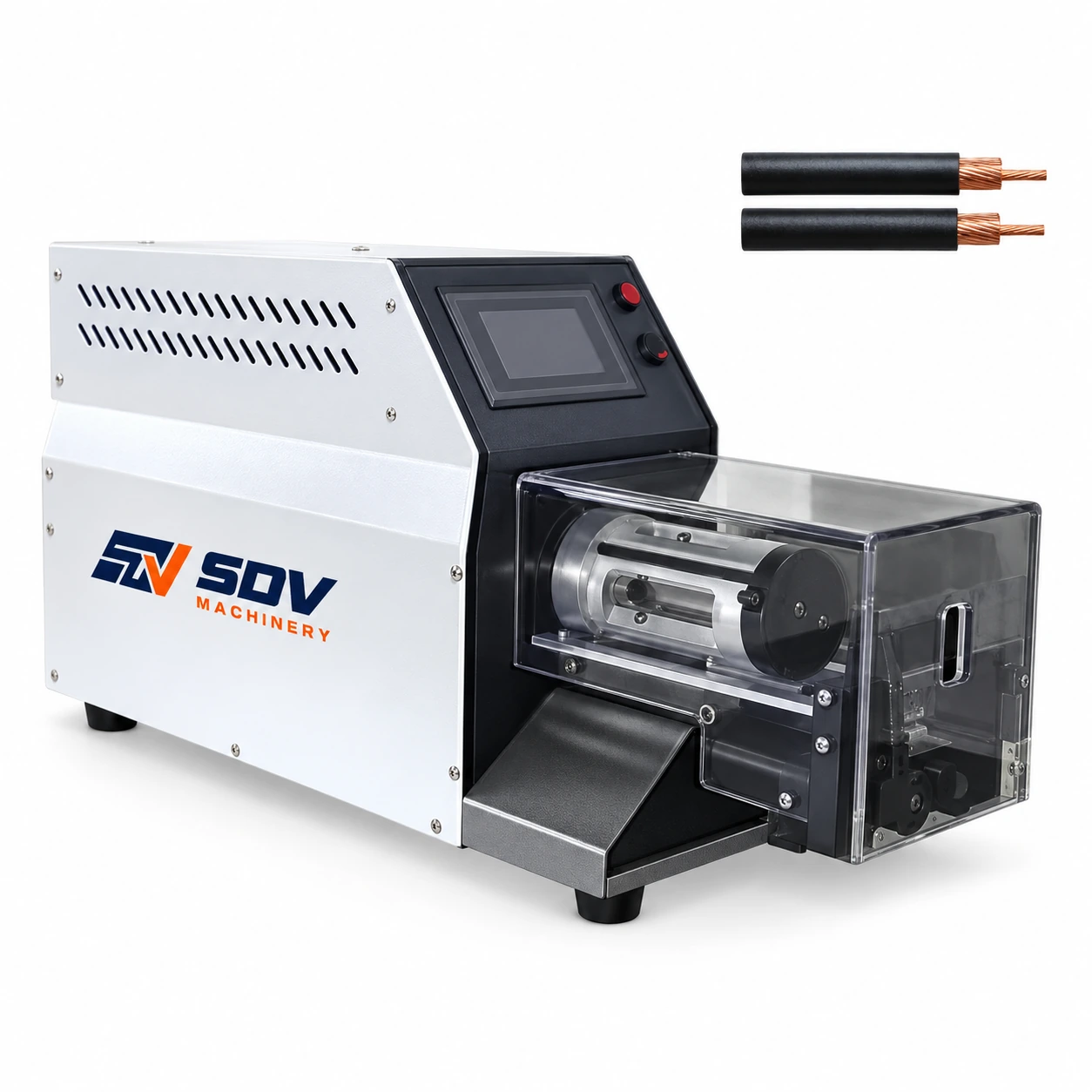

Coaxial Wire Rotary Stripping Machine(1.5-15mmOD) EW-1395

Price of the selected optionon request
Delivery options

Description

Feature

● Model EW-1395 is suitable for 1.5-15mm wires,which is mainly designed for the multi-layer stripping of small to medium-sized communication cables.

● It features a touch screen interface, allowing for digital input of stripping depth, stripping speed, stripping distance, and stripping rotation time.

● It uses a specific center positioning device and rotating tool method, enabling up to nine layers of stripping, and can process wires of various sizes and outer skins without the need to replace the blade.

● Clamping device: self-centering, motor-driven, with program-controlled clamping force.

Specifications

Model
EW-1395
Wire Diameter
1.5-15mm
Max layers
9 Layers
Max stripping length
0.1-85mm
Length increment
0.01mm
Display
Touch Screen
Air source
0.4-0.6MPA
Capacity
400-600pcs/h
Blade material
Imported tungsten steel
Foot pedal
YES
Power
190W
Power supply
AC220V/110V 50/60HZ
Weight
34KG
Dimension
640*230*330mm
Application for Coaxial Wire Rotary Stripping Machine(1.5-15mmOD) EW-1395
