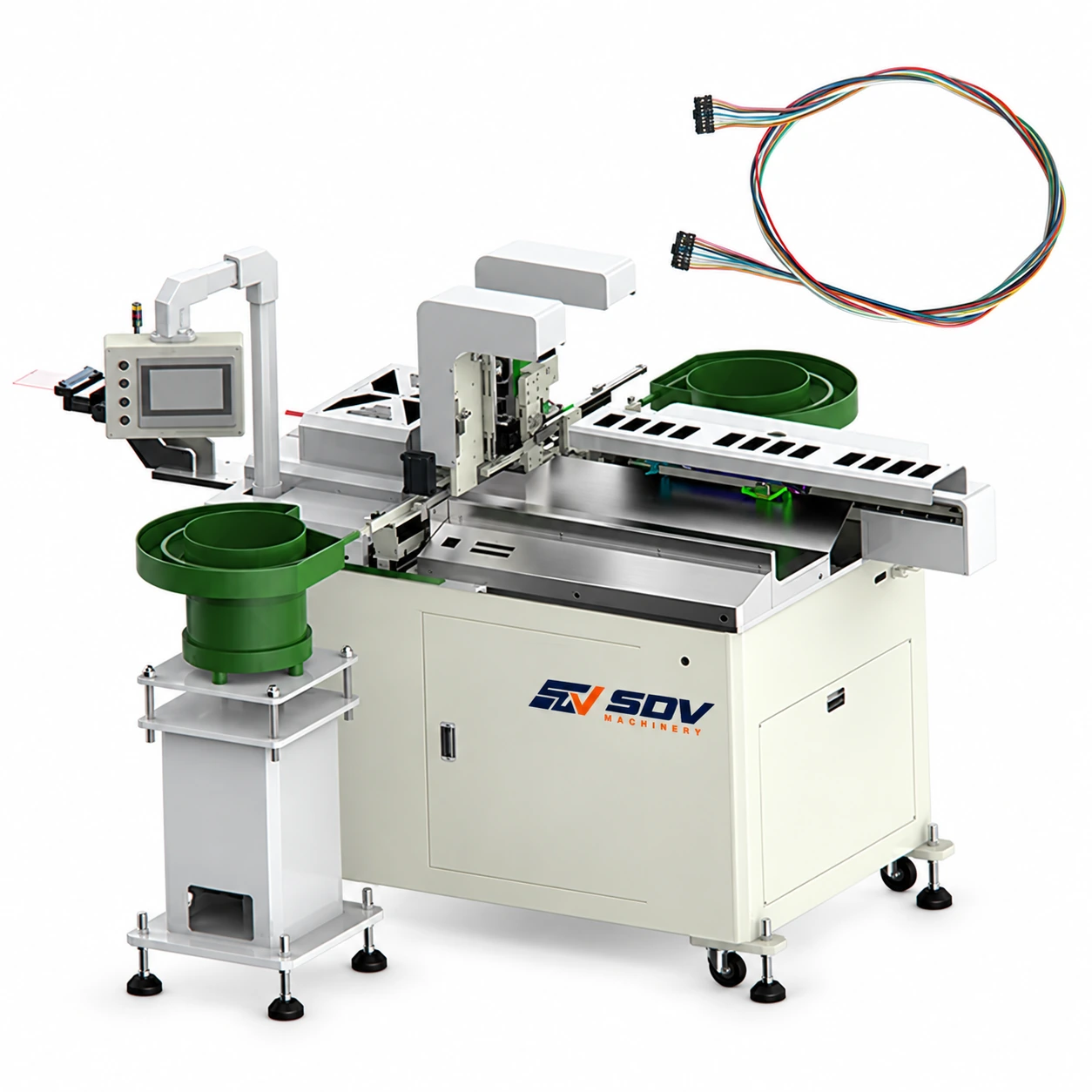

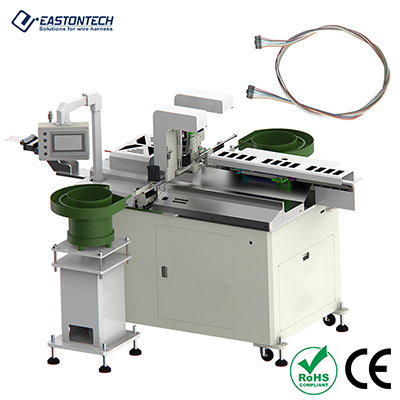

Fully Automatic Double-Head Piercing and Crimping Machine EW-9670

Price of the selected optionon request
Delivery options

Description

Feature

● Vibration imaging is provided by Hikvision, and dual-head vision inspection can be added.

● Product software testing has been completed and can be displayed on the screen.

● The robotic arm stably grips the material, and the lead screw drive ensures precise positioning.

● A vibratory feeder is used for feeding, automatically aligning the plastic casing.

Specifications

Model
EW-9670
Applicable Wire Range
AWG#30~AWG#18/Special cables available for customization
Crimping Machine
Mitsubishi servo motor stamping
Motor
Mitsubishi servo motors (5 sets), stepper motors (3 sets)
Cylinder solenoid valve
Airtac (Taiwan)
Sensor
Jiahuai, Panasonic
Slide Rail Screw
HIWIN (Taiwan)
Detection function
Abnormalities in various parts/sensor malfunction/crimping malfunction (optional)/air pressure malfunction/motor malfunction
Total length
Double-ended puncture 30mm-650mm
Main control board
256 high-speed single-chip microcontroller control system (five-year warranty)
Display
KINCO 10-inch Chinese version color display screen (five-year warranty)
Production Capacity
Determined based on wire length and number of pins
Functions
Wire cutting, single-end piercing, double-end piercing
Power
1500W
Air Pressure
0.5MPa
Power Supply
AC 220V 50HZ
Dimension
Length 2100 × Width 800 × Height 1400 (mm) (excluding cable tray)
Weight
420Kg including vibratory feeder
