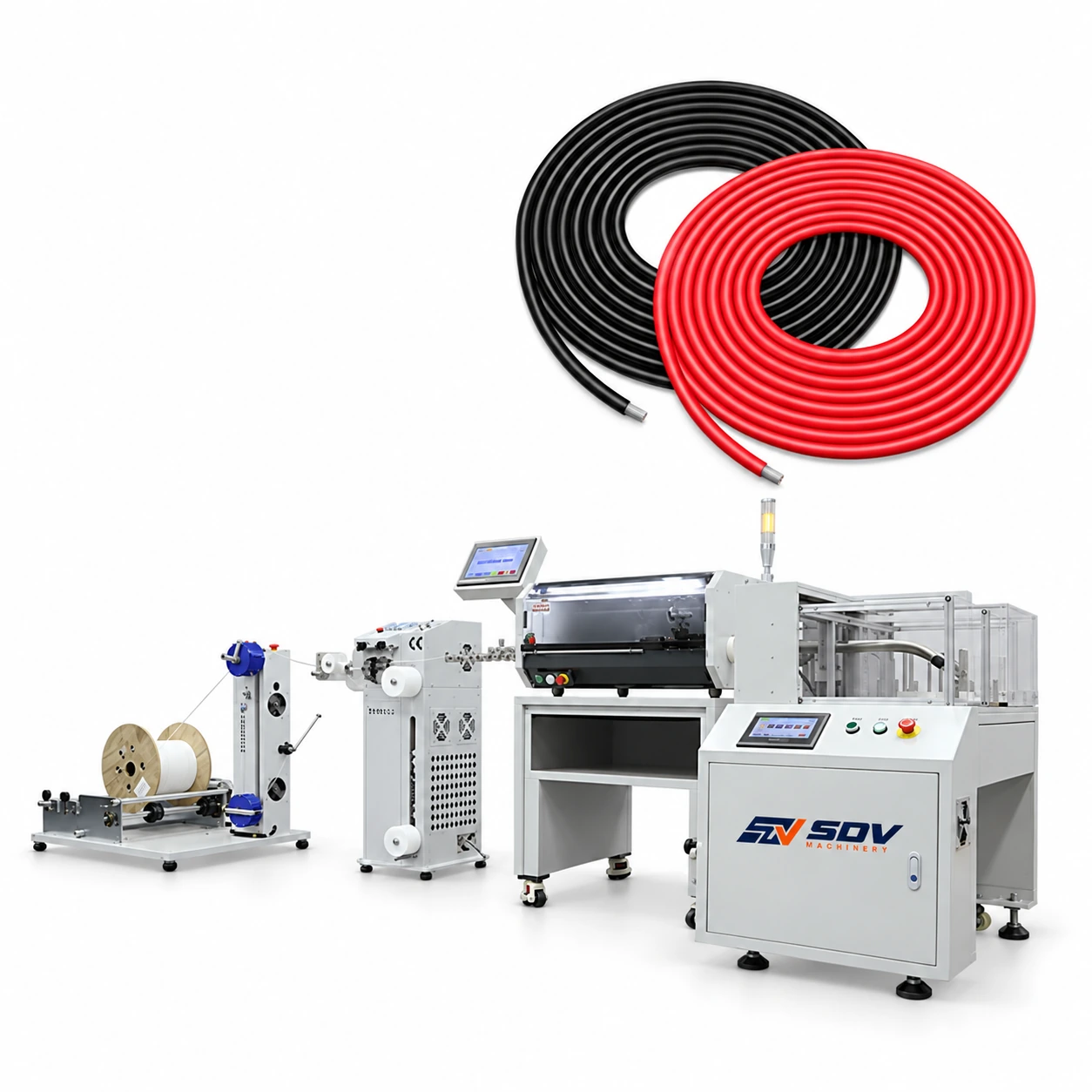

Full Automatic Wire Integrated Computer-Controlled Cutting Stripping Winding Machine(0.2mm-8 mm²) EW-4400

Price of the selected optionon request
Delivery options

Description

Feature

● Hybrid stepper motor, integrated control board, mute subdivision driver, offers precise cutting and stripping, low noise, no noise pollution.

● Processing capabilities: full strip, partial strip and multi-step stripping, max 13 steps.

● Automatic correction of cutting length saves much time and ensure the cutting accuracy.

● STEP function show every single step clearly, it's very helpful for initial operation,training operator and troubleshooting.

● Detection of lack wire, when wire is used up, the machine automatically stops working and sounds alarm to report it.

Specifications

Model
EW-4400
Maximum processing length
999999mm
Minimum processing length
50 mm
wire range
0.2 mm²-8 mm²
Cutting wire diameter range
Φ0.5mm—Φ6mm
Cutting depth setting unit
0.01mm
Cutting method
V-shaped knife
cutting knife
2 sets
storage capacity
1-500
Working power supply
AC110V/220V 50/60HZ
Display mode
touchscreen
power
1.2KW
Drive mode
Servo motor drive
Application for Full Automatic Wire Integrated Computer-Controlled Cutting Stripping Winding Machine(0.2mm-8 mm²) EW-4400
