Wire Processing and Electrical Installation Equipment

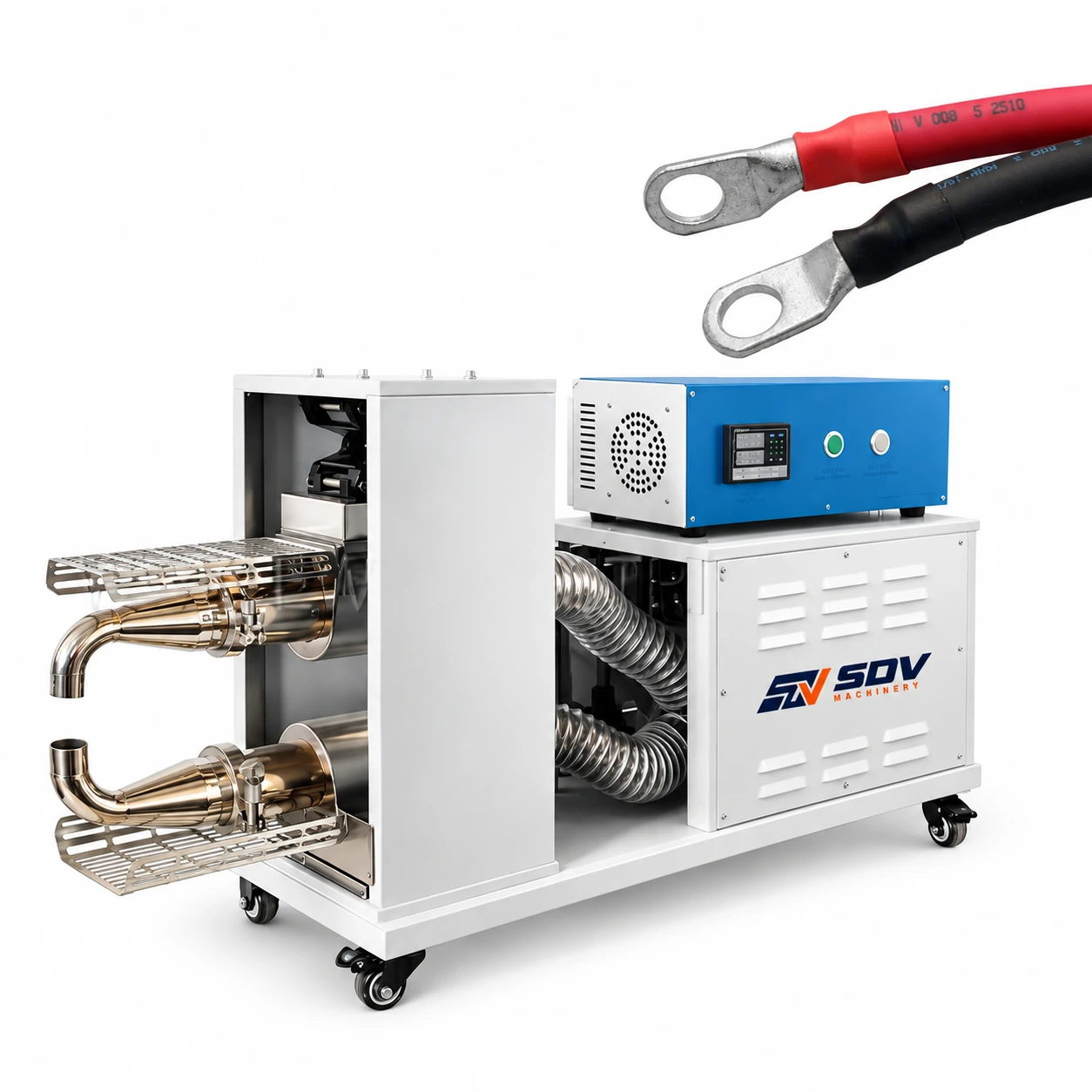

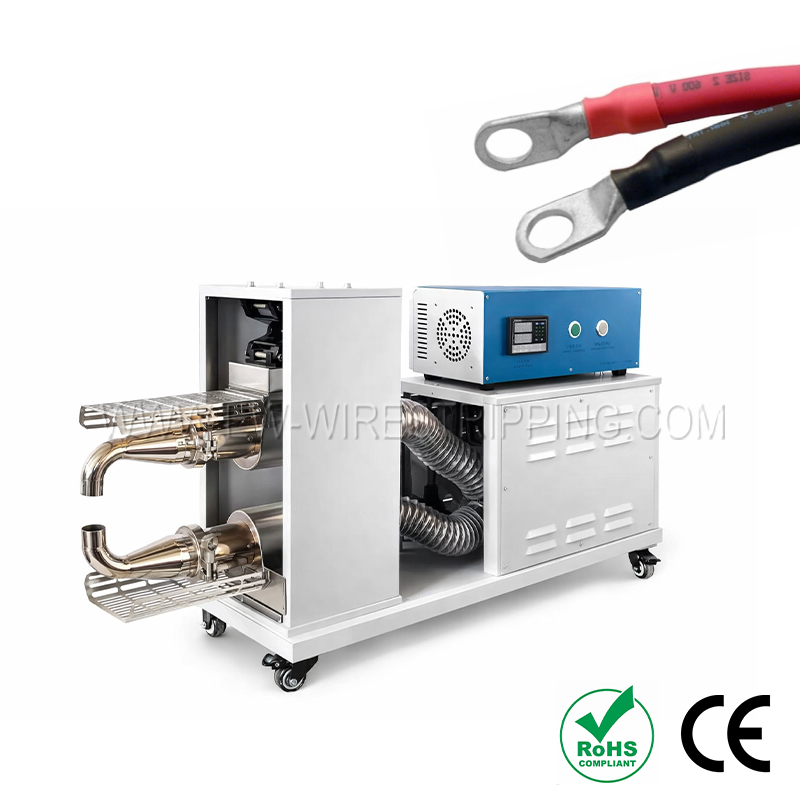

Electrical Heat-Shrink Tubing Heating Machine EW-2855

Price of the selected optionon request
Delivery options

Description

Feature

● Temperature Control: Each outlet is fitted with a temperature sensor, enabling precise temperature adjustment as required. Dual outlets feature unified temperature regulation with ±1℃ accuracy (operating temperature <550℃), displayed digitally. The temperature control system employs PID/SSR regulation for high precision and rapid response.

● Double-Layer Insulation: Constructed with a robust double-layer stainless steel casing for safe and reliable operation, maintaining high temperatures over extended periods. Temperature is digitally adjustable as required, with stable power output.

● High Heat Exchange Efficiency: Ingeniously designed air ducts ensure uniform airflow through both the inner and outer surfaces of the spiral heating elements, achieving nearly 100% heat exchange with minimal pressure loss.

Specifications

Model
EW-2855
Applicable Cable Diameter
<50mm
Heater Power
2×2KW (Power adjustable)
Heating Element Lifespan
100,000 Hours
Control accuracy
±3℃
Air vent
Standard vent size: 25mm.
Additional information
Other vent sizes available as optional extras.
Airflow
<198 m³/h, actual airflow approximately 98 m³/h
Temperature Rating
<550℃
Power Requirements
AC220V 50HZ
Total power
4100W
Application for Electrical Heat-Shrink Tubing Heating Machine EW-2855
