Electric Heating Air Heating Machine EW-2835

Price of the selected optionon request
Delivery options

Description

Feature

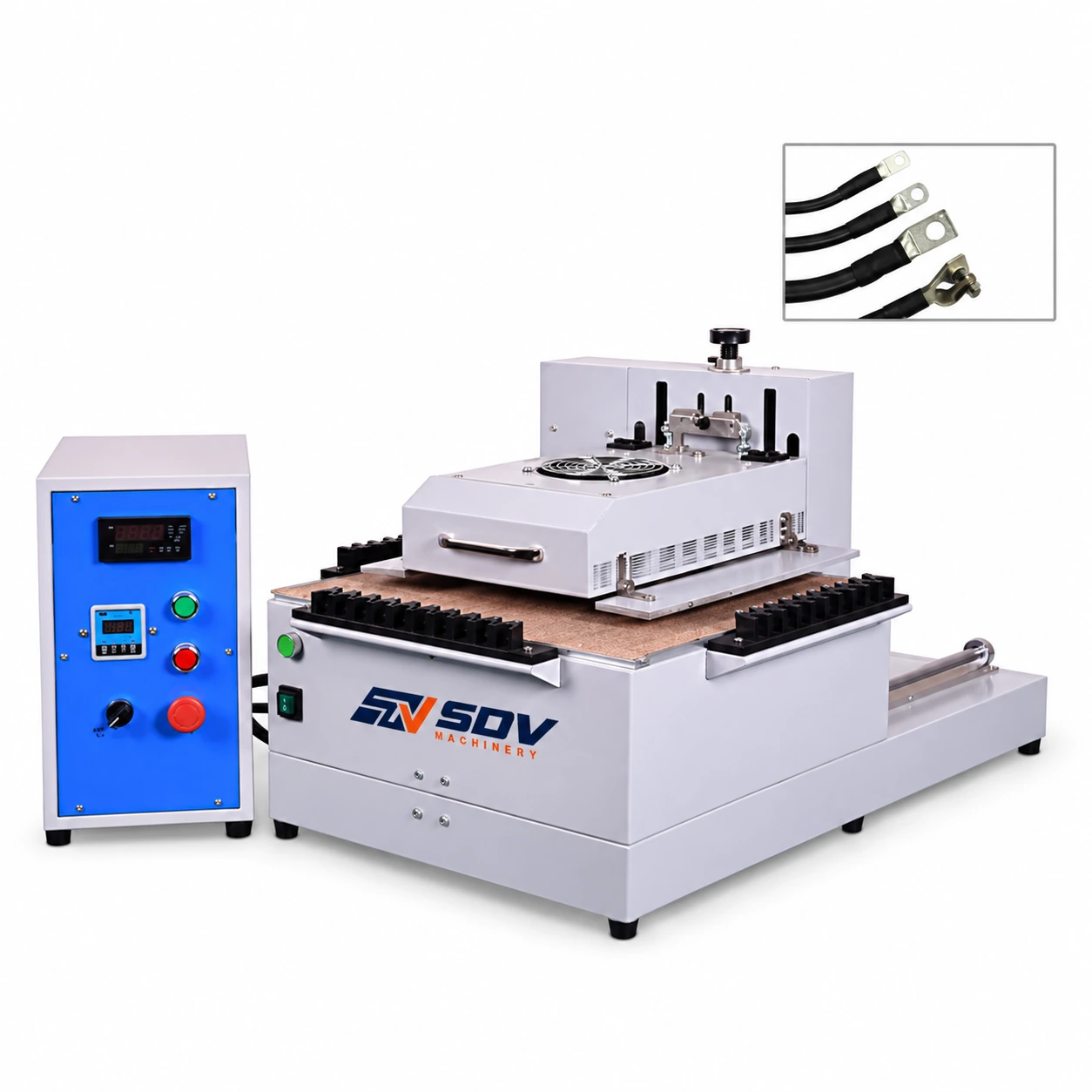

● The heat shrink tube heating machine features an automatic walking heater.

● Place the product on the material platform, press the start button, and the heater will automatically move to the product's position for heating.

● Upon completion, it returns to the original position. The heating time and stopping time can be freely adjusted according to actual needs.

● This machine is suitable for heat shrink tube heating and shrinking in wiring harness processing enterprises.

● It allows for adjustable operation time, working time, and heating zone width according to production process requirements.

● It can operate continuously for 24 hours without interruption.

Specifications

Model
EW-2835
Heating zone width
≤260mm
Heating zone length
≤180mm
Heater stroke
350mm
Heater walking speed
0~100mm/s(adjustable)
Heating tube name
Infrared radiation tube
Heating tube power
300W*12
Heating temperature
≤260℃
Power
AC220V, 50Hz
Total machine power
4000W
Safety protection
PE
Application for Electric Heating Air Heating Machine EW-2835
