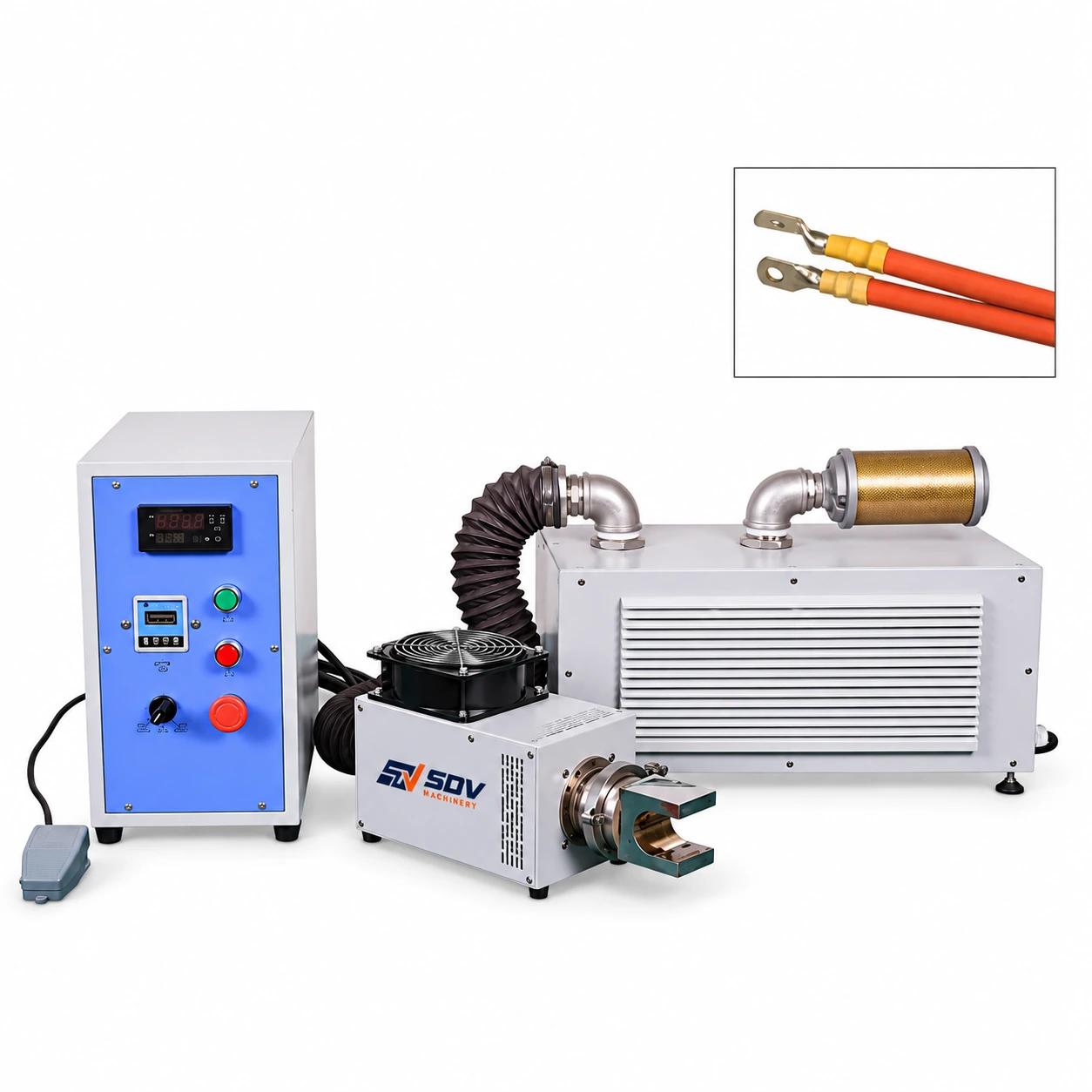

New energy vehicle wiring harness heat shrink tubing hot air heating machine EW-2840

Price of the selected optionon request
Delivery options

Description

Feature

● Thermal air heating machine can achieve intermittent output of hot air, and the heating time and stop time can be adjusted according to actual needs.

● It can start heating in a manual trigger mode, or operate in an automatic cycle heating start-stop mode.

● The device uses thickened nich heating wire, which is wound on a ceramic skeleton by a unique method.

● It can be in a powered heating state for a long time without wind, and the ceramic skeleton has a maintenance effect.

● After the input of cold air, it is quickly heated inside the heater and blown out of high-temperature gas from the outlet.

● During the time when the hot output is stopped, the device loses almost no heat due to the absence of cold air blowing in, and the heater operates at low power, which can save energy to a certain extent.

● This machine is suitable for heat shrinking of heat shrink tubes in wire harness processing enterprises, with a wide range of products and can be adjusted freely according to the production process requirements operation time and working hours.

● It can work continuously for 24 hours without interruption.

Specifications

Model
EW-2840
Heating core category
electric heating wire heating core
Heating core power
≥3KW
Heating temperature
≤500℃
Temperature control table
Solid state relay
Control accuracy
±3℃
Temperature fluctuation
±45℃
Power
250W
Wind pressure
≤12000pa
Air volume
≤48m3/H
Power supply
AC220V 50Hz
Overall power
<4KW
Safety protection
PE
