Feature
● 100-120 pcs/min Rapid Automated Productivity

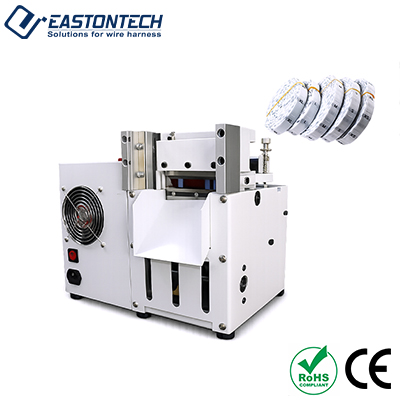

Eliminate manual measuring and slicing bottlenecks instantly. Driven by a high-torque AC motor, the EW-4500 delivers an impressive, high-speed cutting efficiency of 100 to 120 pieces per minute (based on 50mm cutting length), drastically reducing lead times and scaling up your daily manufacturing output.
● 100mm Wide-Bay Entry & Customizable Guides
Equipped with a generous flat-bed feeding and slicing zone that effortlessly accommodates material widths from 0 mm up to 100 mm. The raw feeding mechanism can be customized with adjustable guide plates to support multi-strip feeding or specialized wide web materials.
● 0.1mm Ultra-Tight Tolerance & Micro-Incremental Control
Featuring an advanced intelligent microcomputer control unit, operators can program exact cutting lengths from 1 mm up to a continuous 9999.9 mm. The interface allows for fine 0.1 mm increments and guarantees a strict repeatable cutting length tolerance of ±0.1 mm.
● Heavy-Duty 40KG Desktop Stability & Global Voltage Ready
Built for punishing 24/7 industrial factory floors, its rigid 40KGS all-steel chassis completely dampens mechanical vibration to secure absolute cutting accuracy. Fully compliant with international power configurations, supporting automatic 110V/220V (50Hz/60Hz) voltage switching.
Application Range
Thanks to its heavy-duty motorized upper/lower blade assembly and anti-static flat feeding bed, the EW-4500 automatic cutting machine processes an incredibly wide range of industrial flexible materials:
● Tubing & Sleeving Slicing: Delivering clean, non-deformed cuts on heat shrink tubing, flexible PVC pipes, silicone hoses, fiberglass braided sleeves, and small-diameter vinyl conduits.
● Ribbon, Fastener & Webbing Processing: Precision processing for Velcro strips, hook and loop fasteners, heavy-duty nylon webbing, elastic bands, seatbelts, cotton ribbons, and plastic zipper chains.
● Electronics & Hardware Manufacturing: Slicing flat ribbon cables (FFC/FPC), insulation paper, acetate cloth tape, copper/aluminum foil, battery separator films, and non-adhesive protective films.
● Textiles, Apparel & Packaging: Mass chopping of clothing labels, woven tags, garment elastics, plastic packing straps, and industrial braided cords.
