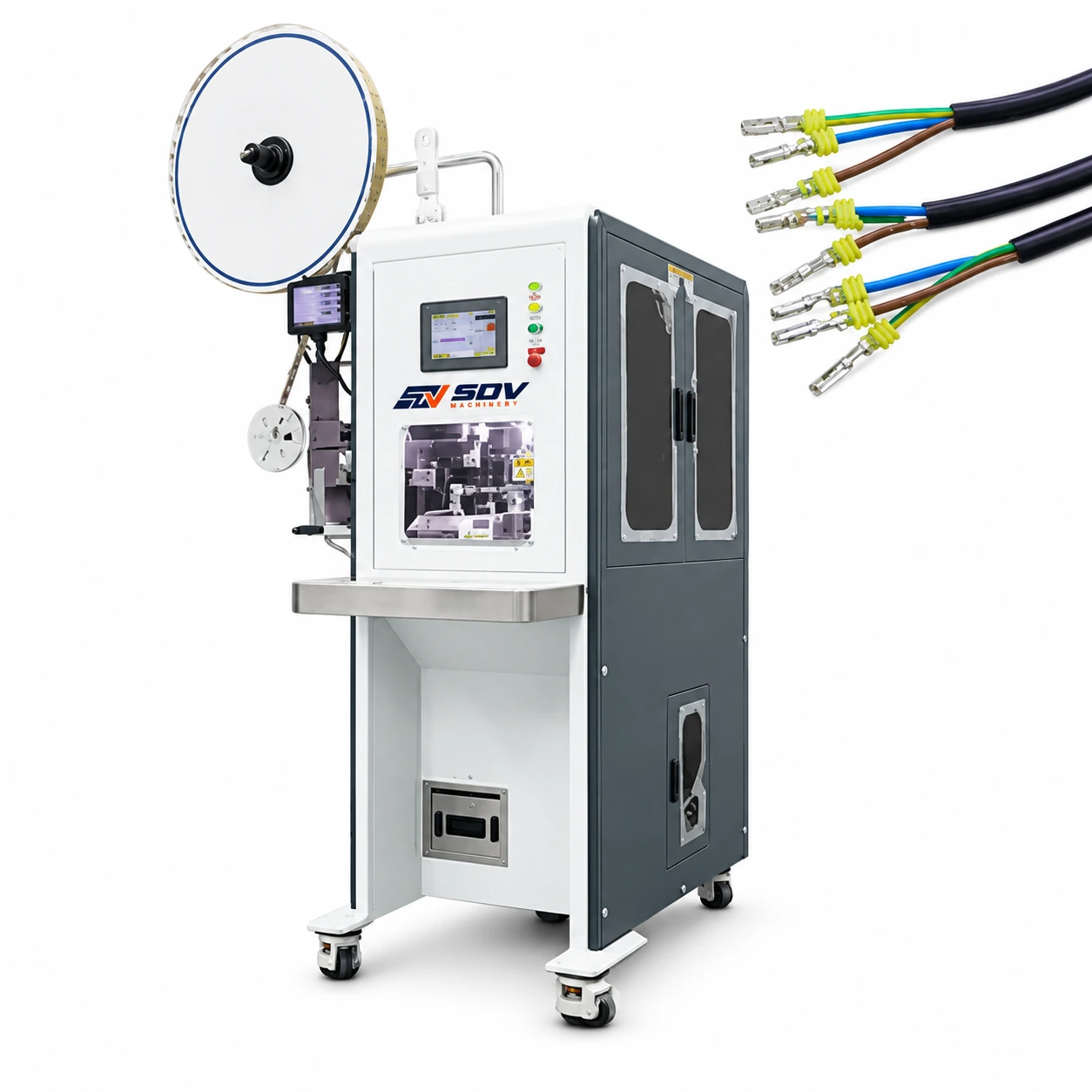

Semi-Automatic Waterproof Plug Stripping Plus Crimping Terminal Machine with CFM(0.2-2.5mm²) EW-5030+M

Price of the selected optionon request
Delivery options

Description

Feature

● Stripping length can be adjusted by data. Wear waterproof plug depth, adjusted according to the data of the glue position between the stripping and the waterproof plug.

● The depth of the end rubber can also be adjusted according to the position of the top line.

● Machine is driven by high-efficiency servo motor, high-speed stamping and pressurestability.

● The stripping slide is driven by a screw rod to ensure accurate stripping length.The cutting mechanism is driven by a motor and screw, and the tangent data can beadjusted.

● Waterproof plug feeding mechanism, easy to replace, to meet the needs of customers withmore products and more types.

● The crimp force monitor is optional.

Specifications

Model
EW-5030+M
Applicable wire range
0.2-2.5mm²
Stripping length
0.1-10mm
Cut precision
±0.02 mm
Stroke
40mm
Crimp capacity
3.0T
Power
220V/110V/50/60HZ
Display language
Chinese/English
Compressed air
0.5-0.7MPA
External dimensions
850mm*880mm*1300mm (length, width and height)
Weight
300KG
CFM
Optional
Waterproof plug size
≤10*10mm
