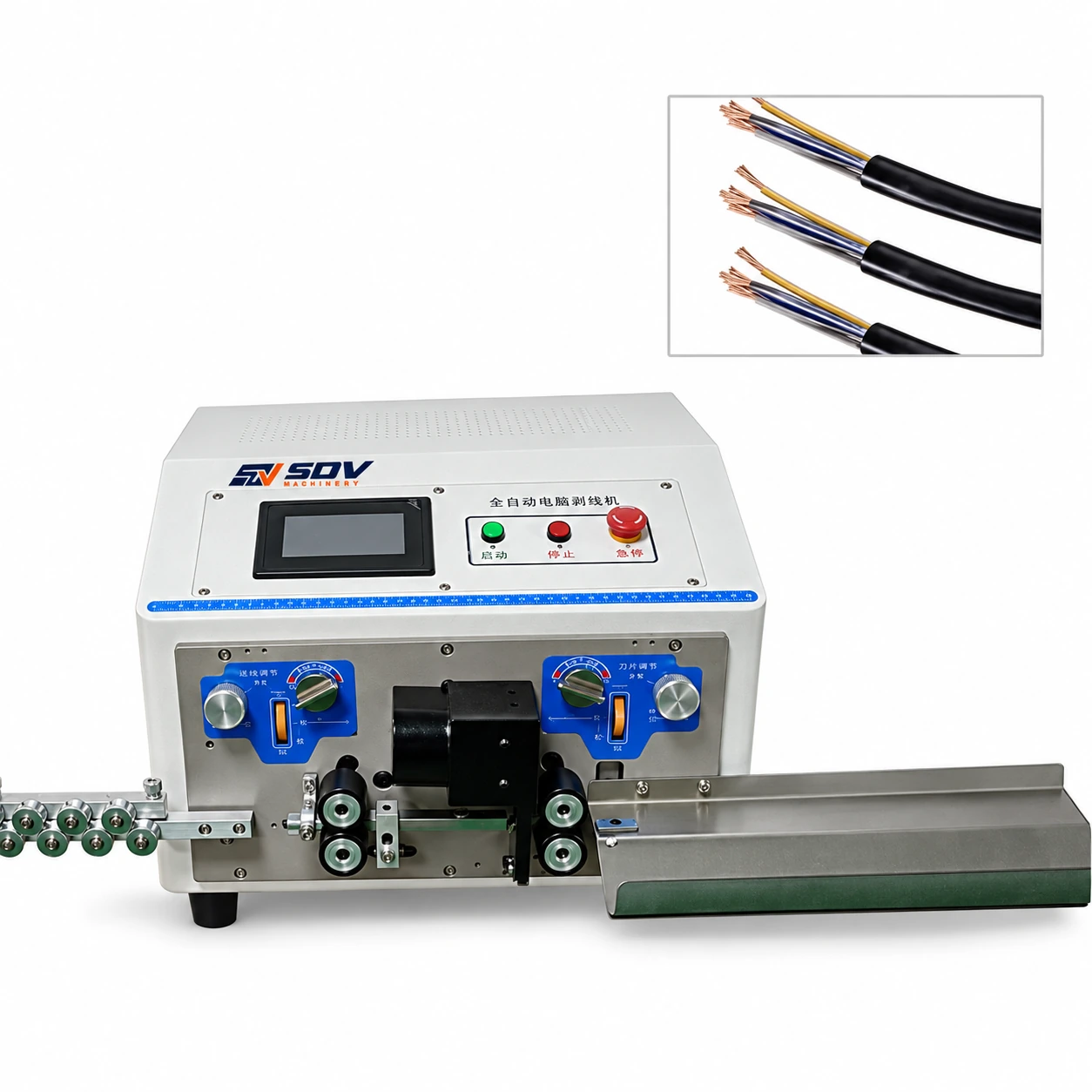

Touchscreen Multicore Wire Cutting Stripping Machine EW-3410

Price of the selected optionon request
Delivery options

Description

Feature

● This machine adopts the latest 32-bit intelligent control system, with a Chinese/English switching LCD display and touch screen operation. It can store hundreds of information entries for easy recall, offering high efficiency and convenience.

● Suitable for processing, cutting, and stripping round and flat sheathed wires, electronic wires, new energy wires, silicone wires, high-temperature wires, Teflon wires, and insulating wires. The stripping function is adjustable.

● Flat sheathed wires can be stripped both inside and out simultaneously.

Specifications

Model
EW-3410
Function
Cable sheath cutting, double-end stripping, full stripping, partial stripping (flat sheathed cables can strip the outer sheath and core wire)
Dimension
470mm (L) x 380mm (H) x 430mm (W)
Weight
40kg
Display
4.5-inch touchscreen
Power Supply
AC175V-250V=50/60Hz
Power
200W
Cutting Length
0.1mm-99999.9mm
Stripping Length
Head stripping 0.1-150mm, Tail stripping 0.1-80mm
Wire Core Cutting
0.1 sq mm - 10 sq mm
Sheathed Wire Outer Diameter
Within 8mm
Cutting Tolerance
Within 0.002mm x L (※L)
Intermediate Stripping
13 cuts
Conduit Diameter
6mm-10mm
Blade Material
Tungsten Steel/Imported High-Speed ​​Steel
Drive Method
2000-4000 wires per hour
Wire Pressure Adjustment
Yes
Application for Touchscreen Multicore Wire Cutting Stripping Machine EW-3410
