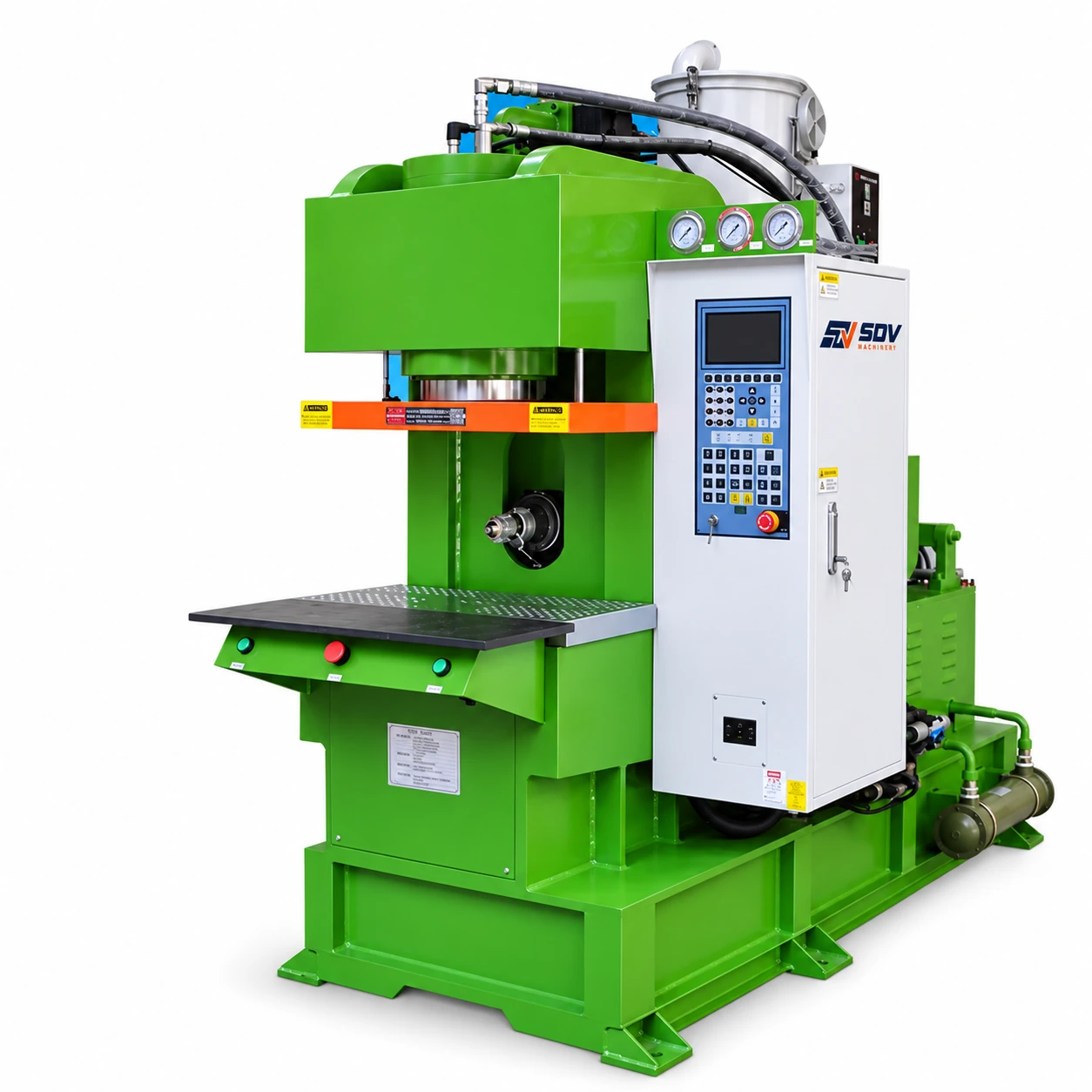

Vertical injection molding machine 55T EW-9055

Price of the selected optionon request
Delivery options

Description

Feature

● The lower die is fixed and the upper die is mobile, which has good positioning for insert items and automatically carriesout the finished products.

● Low pressure die opening device, protect die and personal safety.

● 2-3-4 section temperature control, fire rate, back pressure, screw speed without section adjustment,suitable for allkinds of precision plastic parts forming.

● Single/double sliding plate, disc and so on can be added to improve operation safety and work efficiency.

● Servo system is used to save energy. Environmental protection, high efficiency and stability, the servo motor saves30%-80% energy than the ordinary type of energy-saving motor.

Specifications

Model
EW-9045
Injection injection
Screw Diameter | mm | 40 45
Injection Pressure
kg/cm2 | 1396 1103
Max Shot Weight
g | 188 238
Injection Rate
mm | 180
Screw Speed Max
Turn | 0-230
Nozzle Retraction
mm | 210
Number of temperature Control
Snt | 3 /4
Clamping unit
Clamping Force | tons | 55
Platen Size
mm | 700*310
Distance Between Tie Bar
mm | -
Min Mold Height
mm | 195
Opening Stroke
mm | 200
Max Open Daylight
mm | 300/350
Ejector Force
tons | 2
Power Heading unit
Max Hydraulic Pressure | kg/cm2 | 395
Pump Output
L /min | 47
Pump Motor power
kw/HP | 7.5/10HP
Berrel Heating Power
kw | 5.5
Total Weight
KW | 13.1
Other
Machine Weight | Kg | 3050
Machine Dimension
m | 3*1.2*2.4
Application for Vertical injection molding machine 55T EW-9055
