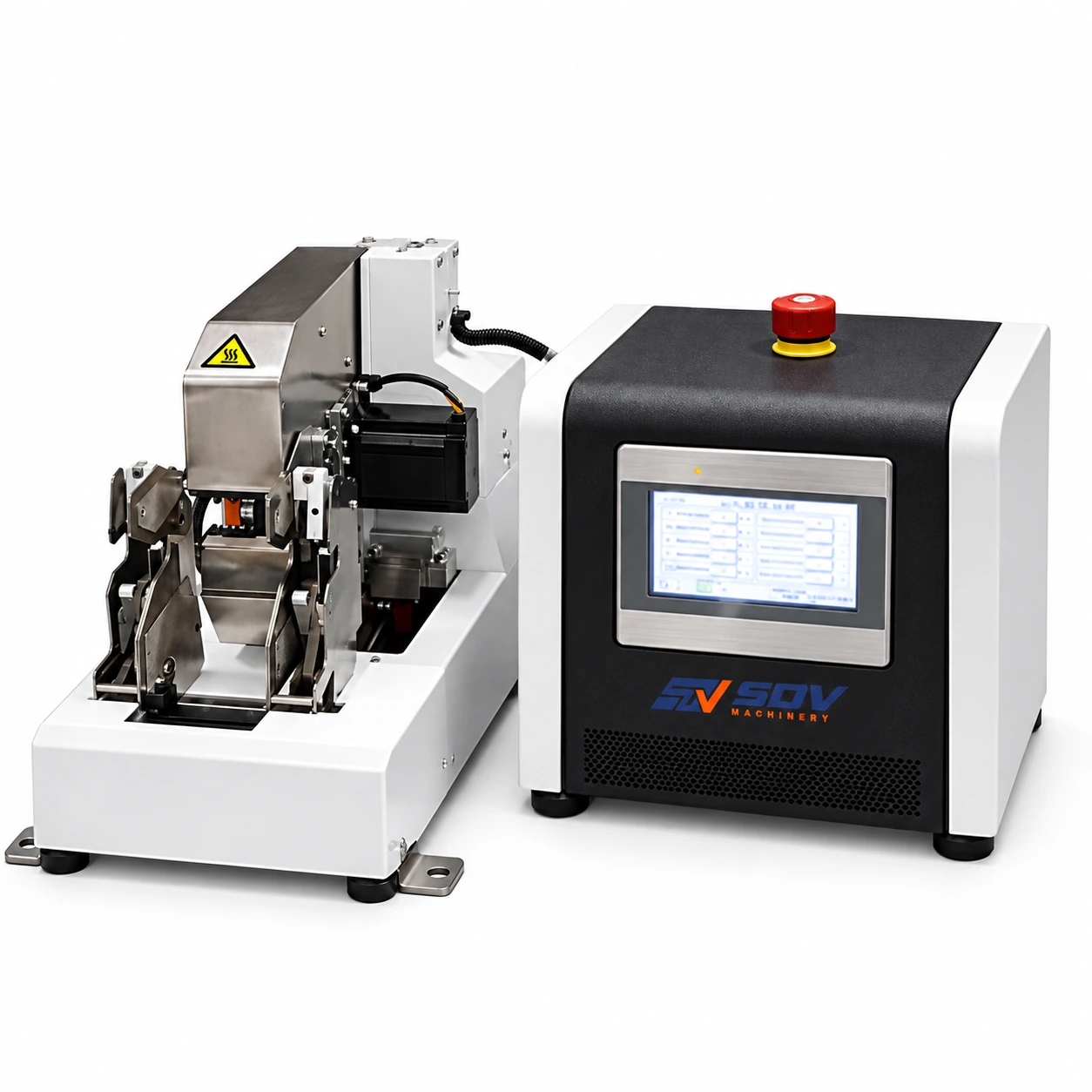

Tape Bundling Machine 25mm Model C,8mm ModelA EW-2715

Price of the selected optionon request
Delivery options

Description

Feature

● The machine head can be separated from the controlling cabinet, and can be customized into evolutionary equipment, such as twister bundling machine and robot bundling machine.

● The machine can achieve 2~6 turns of bundling.

● The position accuracy is ±1mm. Coordinated with customized clamping jaws, the tape is very close to the end face of the sheath.

● Due to the automatic operation of the bundling process, the overall bundling efficiency is improved, and the equipment also has a counting function.

● The bundling appearance is smooth and the quality is reliable.

Specifications

Model
EW-2715
Dimension
450x475x220mm
Input Voltage
220V AC
Gas Supply Pressure
0.4-0.6MPA
Maximum Power
150W
Tape Width
9~19mm (Model-A)
Additional information
19~25mm (Model-C)
Wire Harness Diameter
≤8mm (Model-A)
Additional information 2
≤25mm (Model-C)
Rounds of Bundling
2-6 Rounds Adjustable
Bundling Speed
700 rpm
Tape Roller Diameter
≤150mm
Tape Mandrel Diameter
32-76mm
Tape Materials
PVC,Cloth, Fleece, etc.
