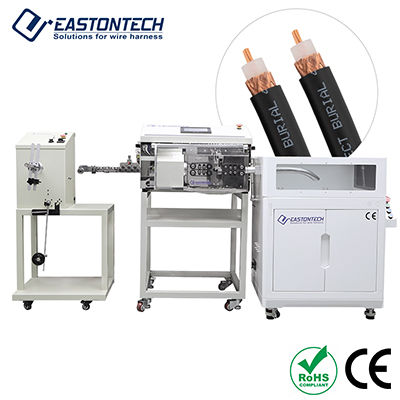

Automatic Coaxial Cable Cutting Stripping & Winding Machine (1.0 - 6.0 mm) EW-06H-3+C

Price of the selected optionon request
Delivery options

Description

Feature

● The EW-06H-3+C is a fully automatic multi-step coaxial cable cut & strip machine for industrial coaxial cable and single conductor wire at range of 1.0 - 6.0 mm diameter

● Max. 6 layer stripping capability.

● 0.01 mm precise cutting depth increment.

● Universal blades set for wide range of cables.

● Memory capacity of 100 programs with touch screen setup.

Specifications

Model
EW-06H-3+C
Cable type
Coaxial cable and single conductor wire
Cable OD
1.0 - 6.0 mm
Cutting length
50 - 9999 mm
Cutting depth increment
0.01 mm
Cutting tolerance
< 0.01 * L
Stripping mode
Rotary blades incision + V blades pull-off
Max. strip layers
6
Stripping length (side I)
0 - 45 mm
Stripping length (side II)
0 - 100 mm
Stripping tolerance
< 0.1 mm
Blades material
Imported tungsten steel and high speed steel
Display mode
Touch screen (153 * 85 mm)
Driving mode
By motor and ball screw
Working temperature
-5 - 45 degree
Memory capacity
40 programs
Productivity
350 - 900 pcs./h
Power supply
AC 110, 220 V (50/60 Hz)
Power
800 W
Weight
120 kg
Dimension
790 * 730 * 400 mm
Application
Coiling for wide range of industrial wires & cables
Coil inner diameter
200 - 680 mm
Coiling speed
1.5 m/s (intelligent speed change)
Driving mode
Servo motor
Safety protective cover
Available
Application for Automatic Coaxial Cable Cutting Stripping & Winding Machine (1.0 - 6.0 mm) EW-06H-3+C
