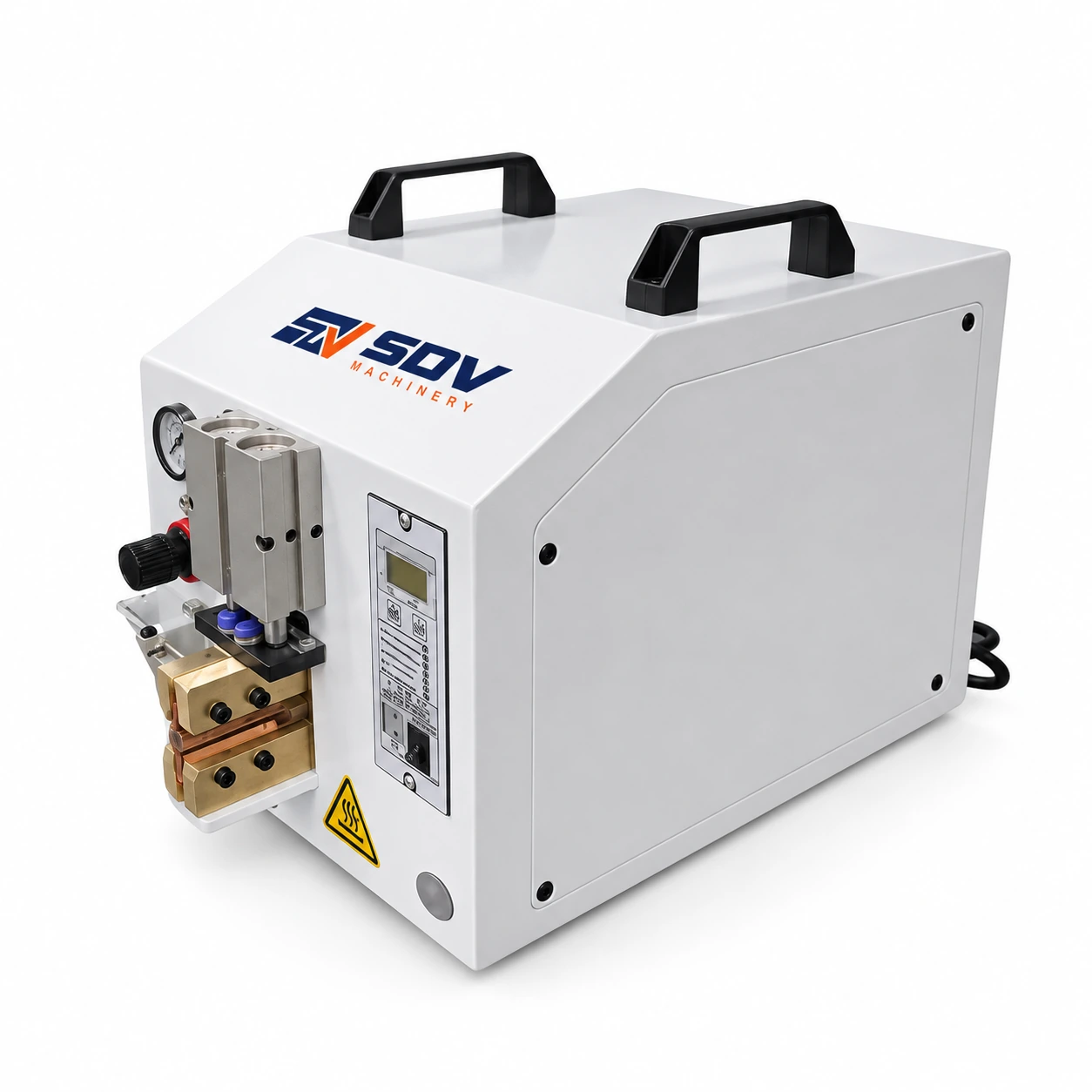

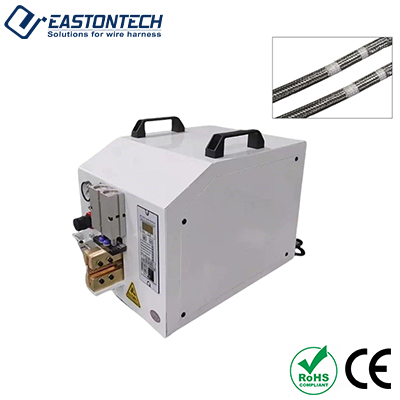

Metal Shielding Braided Sheath Stripping Machine EW-1385

Price of the selected optionon request
Delivery options

Description

Feature

● Dual Carrying Handles — Facilitates convenient moving and handling.

● Digital Control Panel — Enables precise control over stripping position, dimensions, and depth.

● High-Speed ​​Pneumatic Cylinder — Ensures stable performance, suitable for prolonged, continuous operation.

● All-Copper Blades — Enhances conductivity and effectively protects the wire core.

● Allows for precise control over stripping position, dimensions, and depth, featuring high repetitive positioning accuracy and excellent consistency.

● The insulation performance of the wire remains unchanged before and after stripping.

Specifications

Model
EW-1385
Solenoid Valve Drive
AC 220V / 1A (External Power Supply
SCR Trigger Current
≤ 1200 mA × 2
Constant Power Output
Power Supply ± 20% → Output ± 5%
Total Power Consumption
10 W
Operating Temperature
-5°C to 45°C
Operating Humidity
≤ 85%
Power Supply
AC 380V / 220V, 50 Hz
Counting Range
≤ 9999 Cycles
Mounting Cutout Dimensions
125 mm × 50 mm
Enclosure Dimensions
90 mm × 57 mm × 143 mm
Response Time
20 ms
Foot Switch
Normally Open × 2
Temperature Controller
Normally Closed
Application for Metal Shielding Braided Sheath Stripping Machine EW-1385
