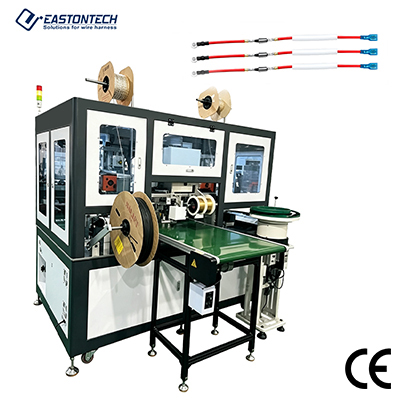

Fully Automatic Copper Strip Machine EW-7840

Price of the selected optionon request
Delivery options

Description

Feature

●Utilizes a new 4-ton copper-strip machine for fuse crimping, achieving a tensile strength of up to 120N.

●Features automatic cutting and orientation sorting for fuses.

●Supports the crimping and sleeve-fitting of 187/250 straight-type terminals, ensuring the sleeves are pulled securely into position, thereby significantly reducing labor requirements.

●S upports the crimping and heat-shrink tubing application for 187/250 straight-type and O-ring ground terminals, featuring automatic positioning and heat-shrinking functionality.

Specifications

Model
EW-7840
Power Supply
AC 220V, 50Hz, Single-phase
Functions
Simultaneous processing at both ends of the wire: cutting, stripping, terminal crimping, sleeve insertion, heat-shrink tubing insertion, and silicone tubing insertion
Processing Range
3122: 20–14 AWG / Wire Outer Diameter: 1.8 mm – 3.0 mm
Wire Cutting Length
60 mm – 9999 mm (A conveyor belt is required for lengths exceeding 800 mm)
Detection Functions
Wire presence detection, terminal crimping presence detection, fuse presence detection, copper strip presence detection, low air pressure warning
Silicone Tube Length
50–59
Application for Fully Automatic Copper Strip Machine EW-7840
