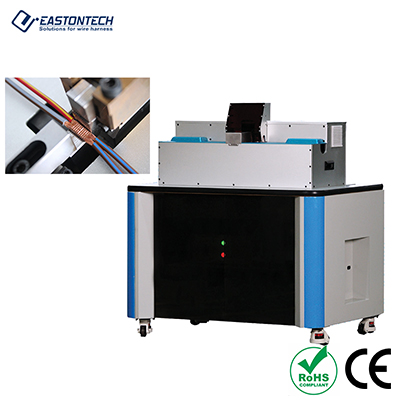

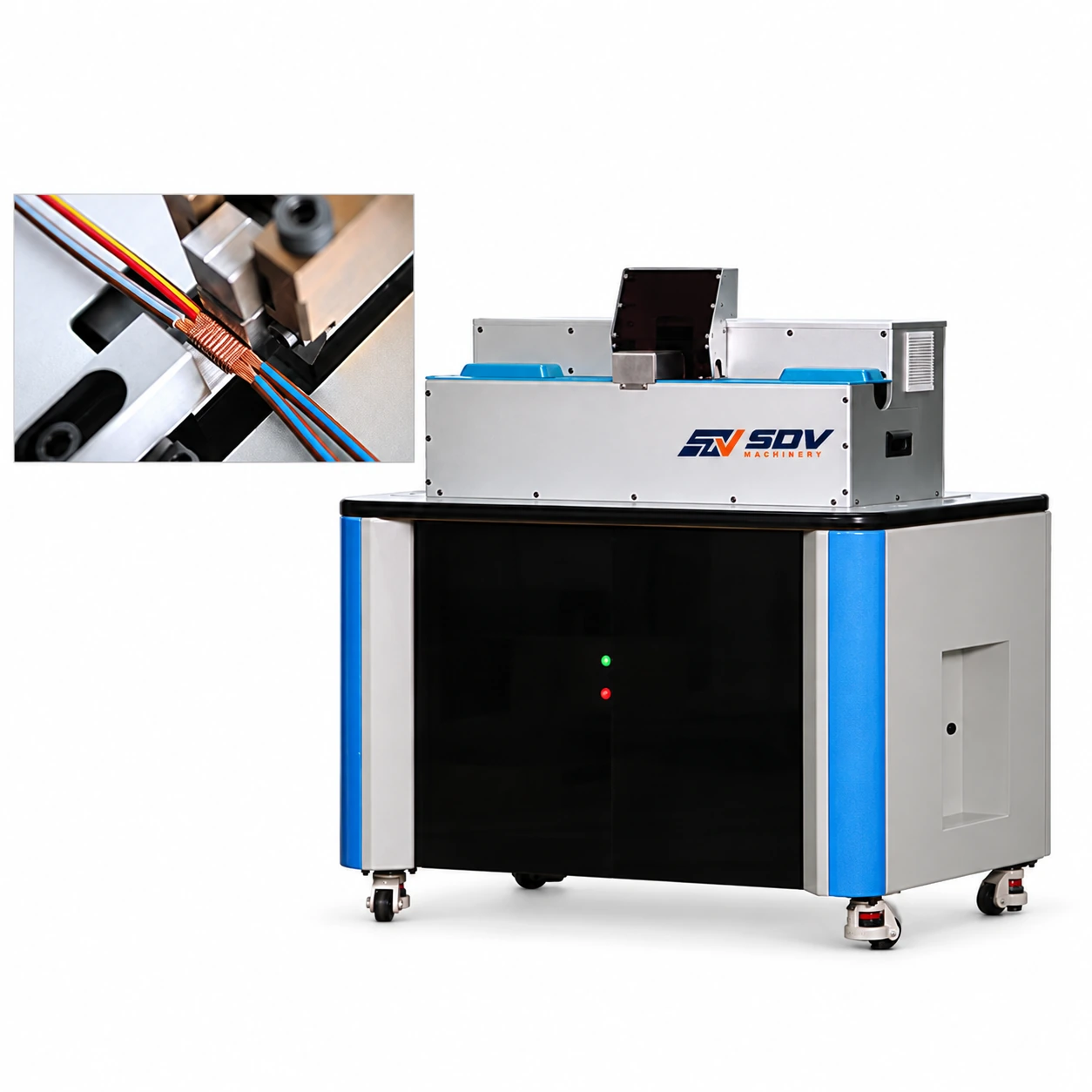

Ultrasonic Metal Welder Machine (20 mm²-70 mm²) EW-60E

Price of the selected optionon request
Delivery options

Description

Feature

● Password protection and parameter traceability features support QR code and barcode scanning capabilities.

●Incorporates a proprietary built-in algorithm capable of effectively compensating for parameter height inconsistencies caused by welding horn wear.

●Leveraging an upgraded power control unit, the system captures comprehensive real-time welding data for quality monitoring purposes, while also enabling seamless integration with MES.

Specifications

Model
EW-60E
Dimensions (L x W x H) (mm)
1200 x 900 x 1400
Weight
268 kg
Power
380V AC (9000W)
Operating Air Pressure
0.05 – 0.6 MPa
Filtration Precision
5 µm
Welding Range
20 mm² – 70 mm²
Stroke
40 mm
Operating Temperature
+5°C – 50°C
Operating Humidity
30% – 95%
System Usable Stroke
Internally Adjustable
System Allowable Pressure Range
0.05 MPa – 0.6 MPa
System Descent Speed
8 mm/s – 100 mm/s
Application for Ultrasonic Metal Welder Machine (20 mm²-70 mm²) EW-60E
